Operating Room Control Panel
| Applications | For Operating Rooms |
| Other Characteristics | With Touchscreen |
| Applications | Laboratory |
| Configuration | On Casters |
| Filter Type | Hepa |
| Air Flow Type | Vertical Laminar Flow |
Associated tags
Product review
Catalog record
Inquiry support
Product summary
ExecutionISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.0.3 μm and larger particulates are eliminated with a 99.99% efficiency, leak-tight HEPA filter that meets class 10 standards.(US Federal Standard 209E)
(optional) (average life span of HEPA filter: 3 years; varies based on test room conditions)
High-quality polyester fiber prefilter (with minimal pressure loss and 85% arrestant on the A.F.I. test) designed to capture larger particles and extend the lifespan of the primary HEPA filter.
High-quality laminar flow is achieved through the use of an exclusive diffusing muffler structure.
A working environment that is both comfortable and quiet. (less than 65 decibels) input:
output:Convenience
A differential pressure gauge is integrated to facilitate the inspection of the condition of the HEPA filter.

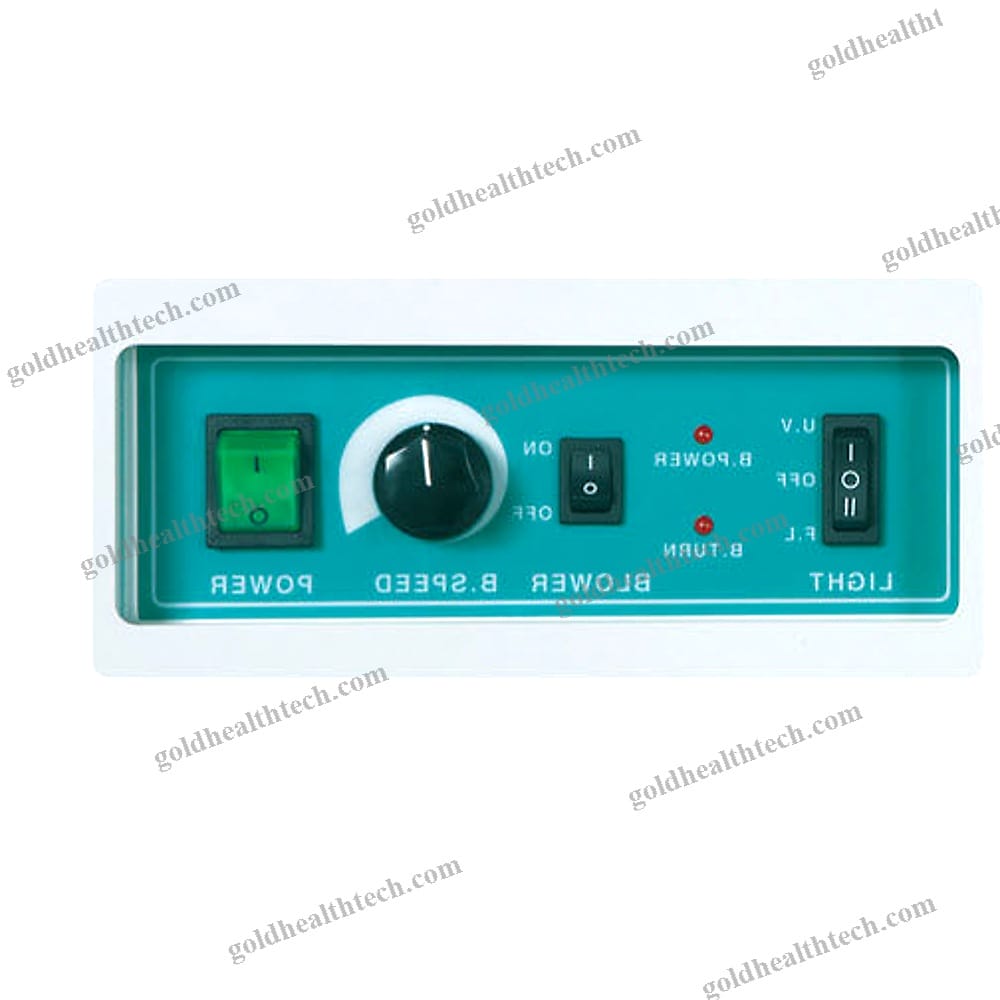

Easy replacement of cartridge-type filters is facilitated by the front access. The control panel facilitates the adjustment of the blower's speed. Grade 304 stainless steel work surface that is highly durable, rust-free, and easy to clean. Certain memos and small tools are permissible on the magnetic board located on the inner left side. input:
output:Security
Tempered glass door that is both impact-resistant and UV-blocking.
In order to safeguard users, the UV lamp will automatically deactivate if the sash is opened during operation.
To prevent harmful UV exposure, the lighting mode is selected using a three-position toggle switch (UV, off, fluorescent).
To ensure the safety of the user and facilitate the transportation of equipment into the workspace, the front door is designed to slide smoothly and can be stopped at any height.
Protection from excessive current.
(optional) (average life span of HEPA filter: 3 years; varies based on test room conditions)
High-quality polyester fiber prefilter (with minimal pressure loss and 85% arrestant on the A.F.I. test) designed to capture larger particles and extend the lifespan of the primary HEPA filter.
High-quality laminar flow is achieved through the use of an exclusive diffusing muffler structure.
A working environment that is both comfortable and quiet. (less than 65 decibels) input:
output:Convenience
A differential pressure gauge is integrated to facilitate the inspection of the condition of the HEPA filter.
Easy replacement of cartridge-type filters is facilitated by the front access. The control panel facilitates the adjustment of the blower's speed. Grade 304 stainless steel work surface that is highly durable, rust-free, and easy to clean. Certain memos and small tools are permissible on the magnetic board located on the inner left side. input:
output:Security
Tempered glass door that is both impact-resistant and UV-blocking.
In order to safeguard users, the UV lamp will automatically deactivate if the sash is opened during operation.
To prevent harmful UV exposure, the lighting mode is selected using a three-position toggle switch (UV, off, fluorescent).
To ensure the safety of the user and facilitate the transportation of equipment into the workspace, the front door is designed to slide smoothly and can be stopped at any height.
Protection from excessive current.
