Operating Room Control Panel
| Applications | For Operating Rooms |
| Other Characteristics | With Touchscreen |
| Applications | Laboratory |
| Other Characteristics | With Sliding Front Sash |
| Configuration | Floor-Standing, On Casters, Portable |
| Function | Exhaust, Containment, For Teaching, Weighing |
| Filter Type | Hepa |
| Structure Material | Aluminum |
Associated tags
Product review
Catalog record
Inquiry support
Product summary

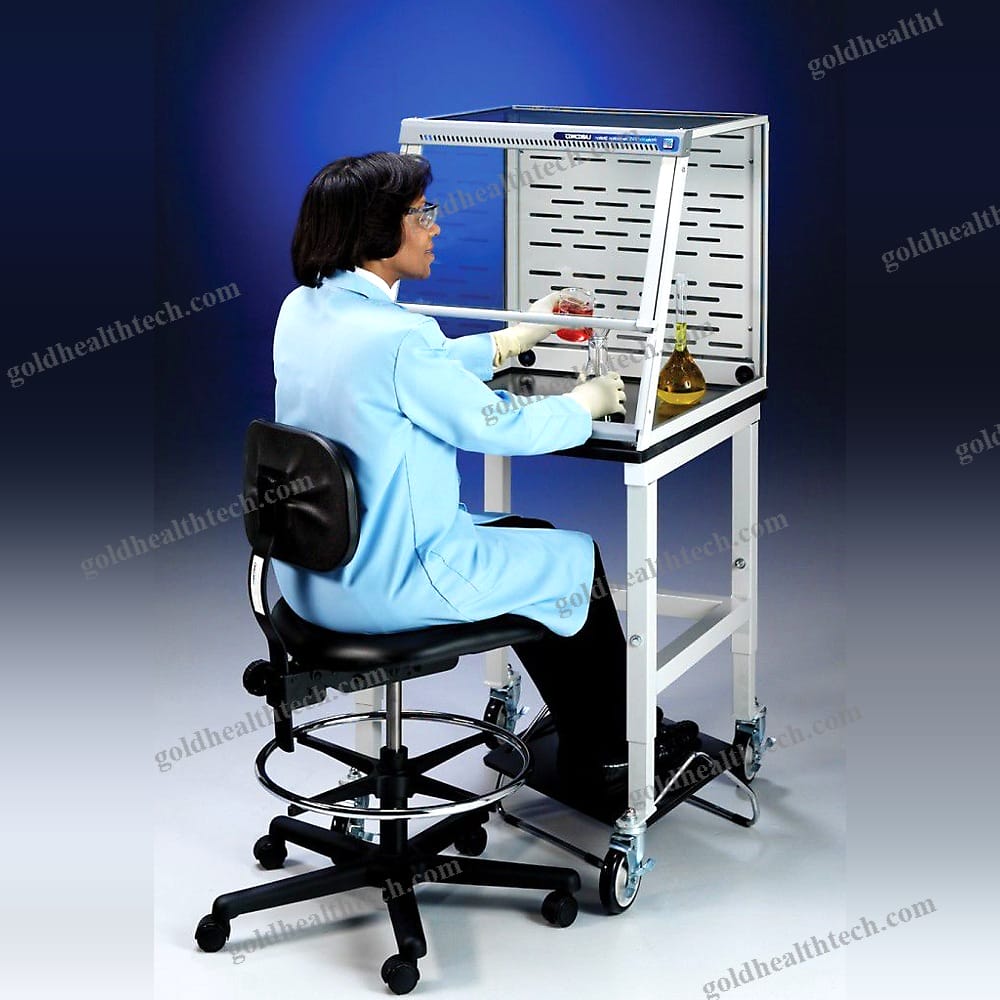

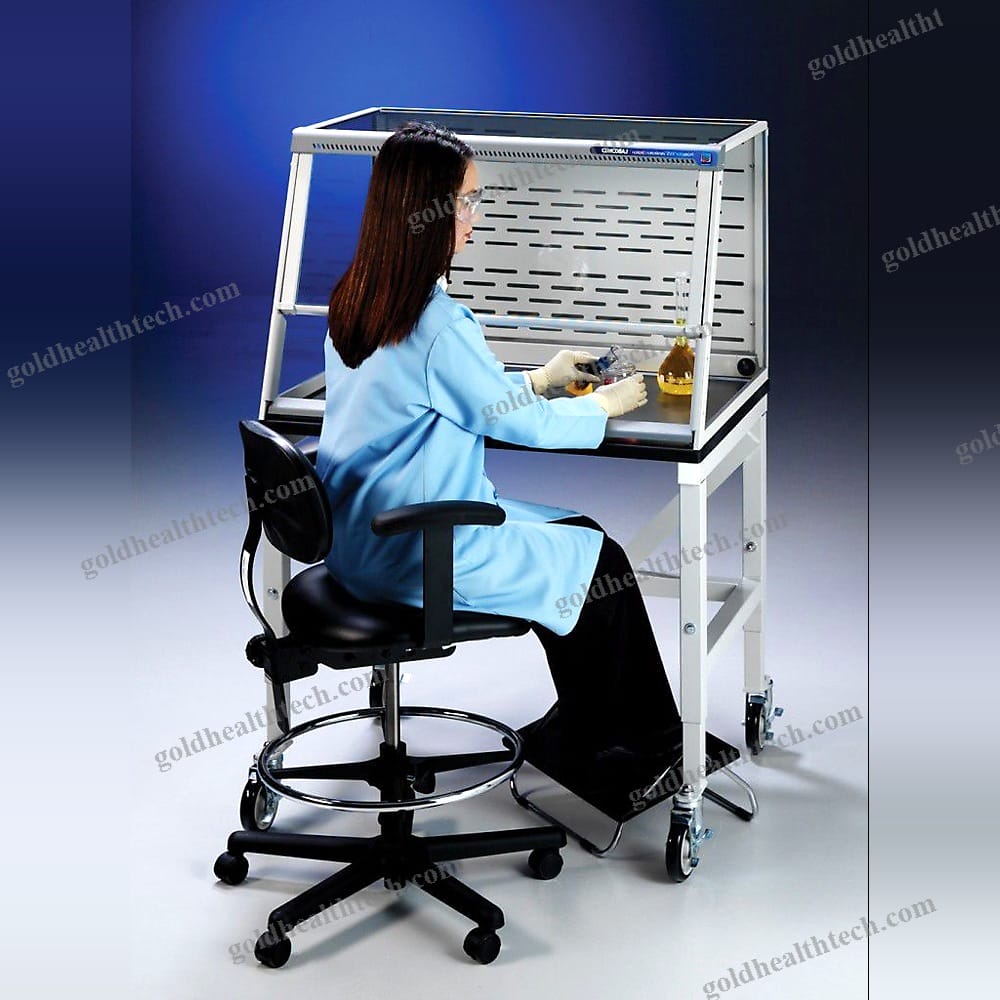

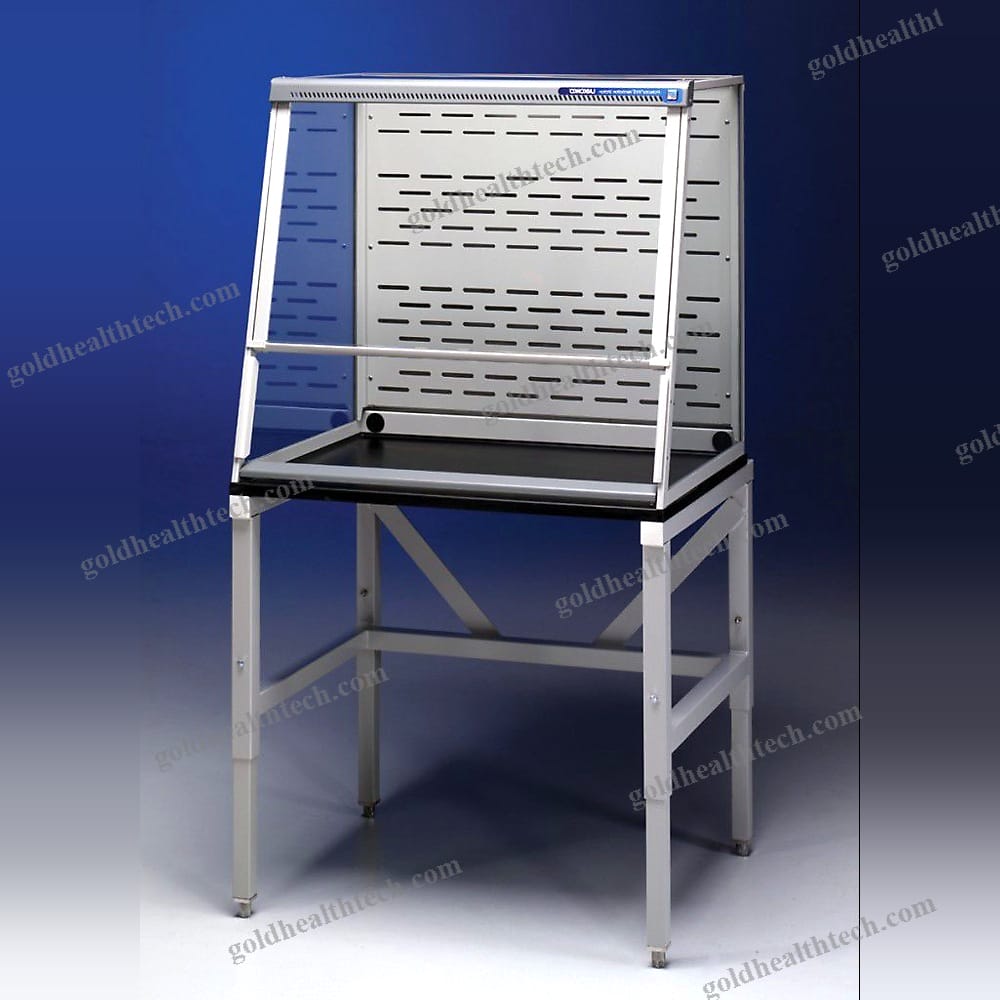

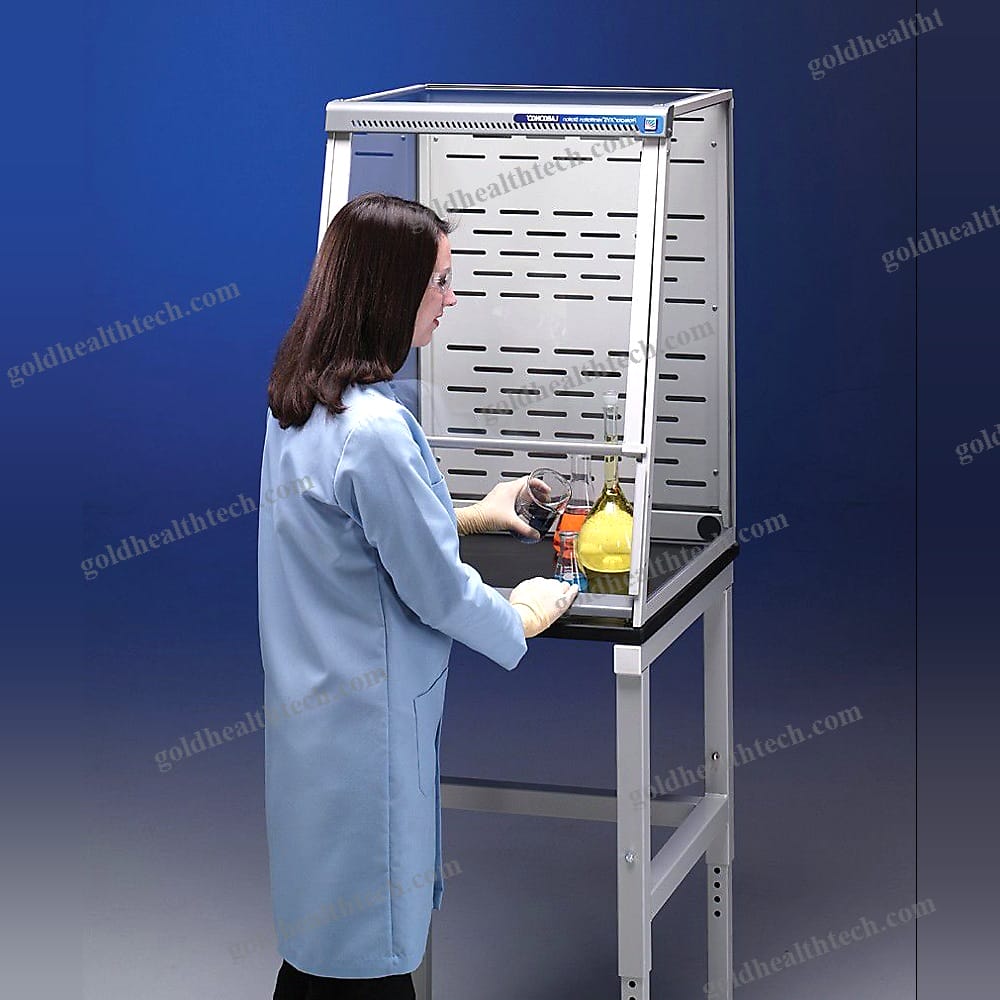

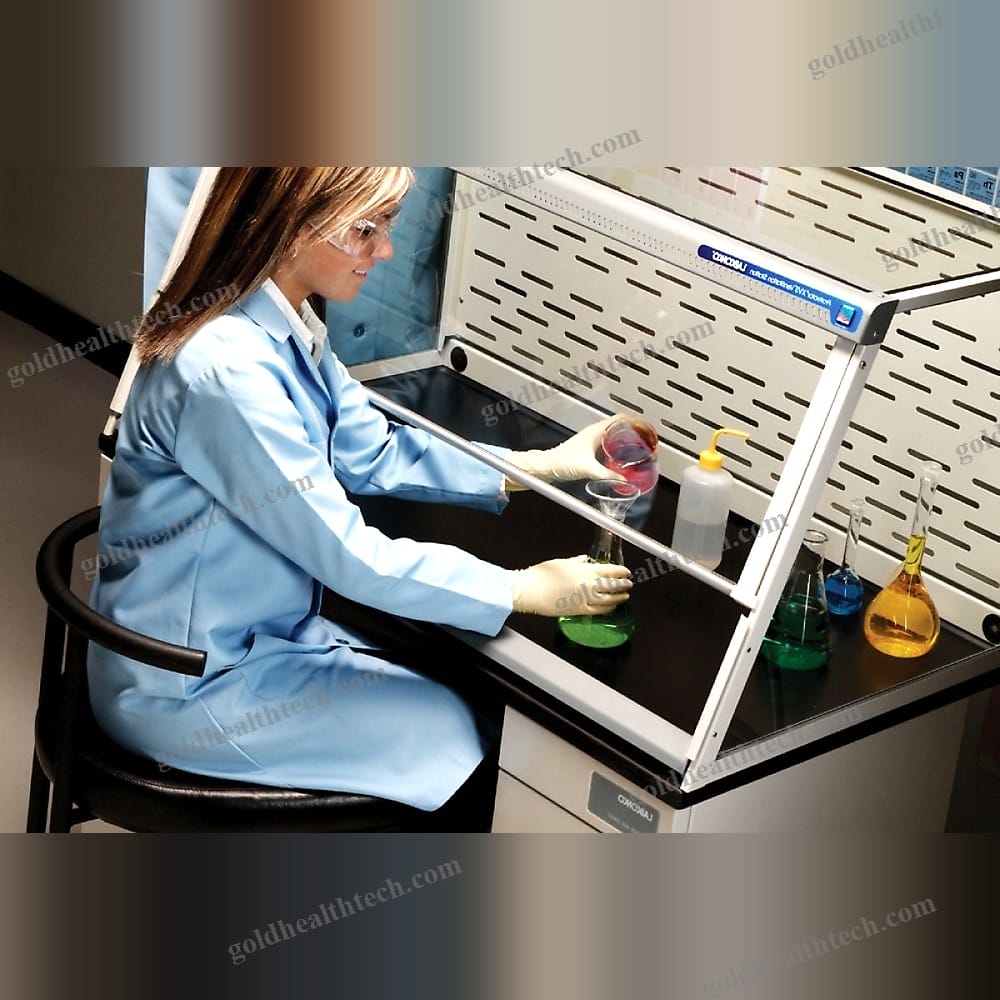

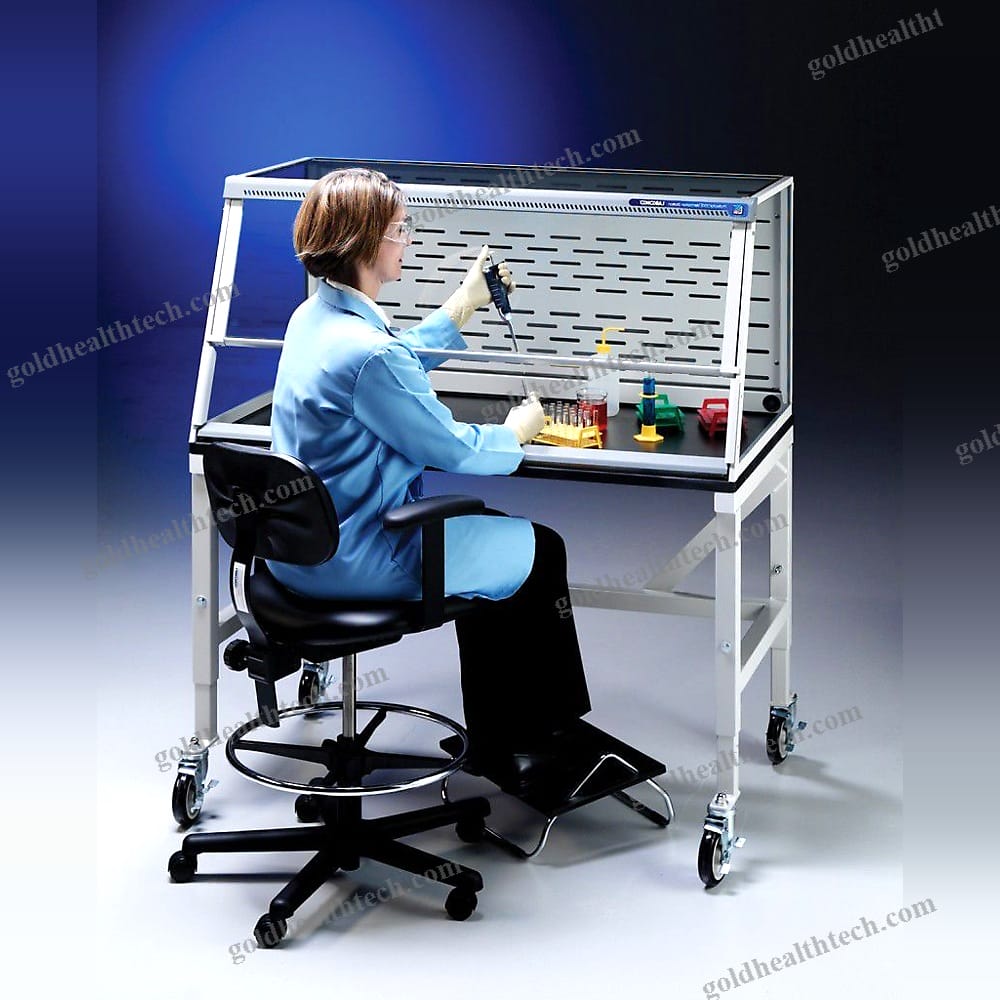

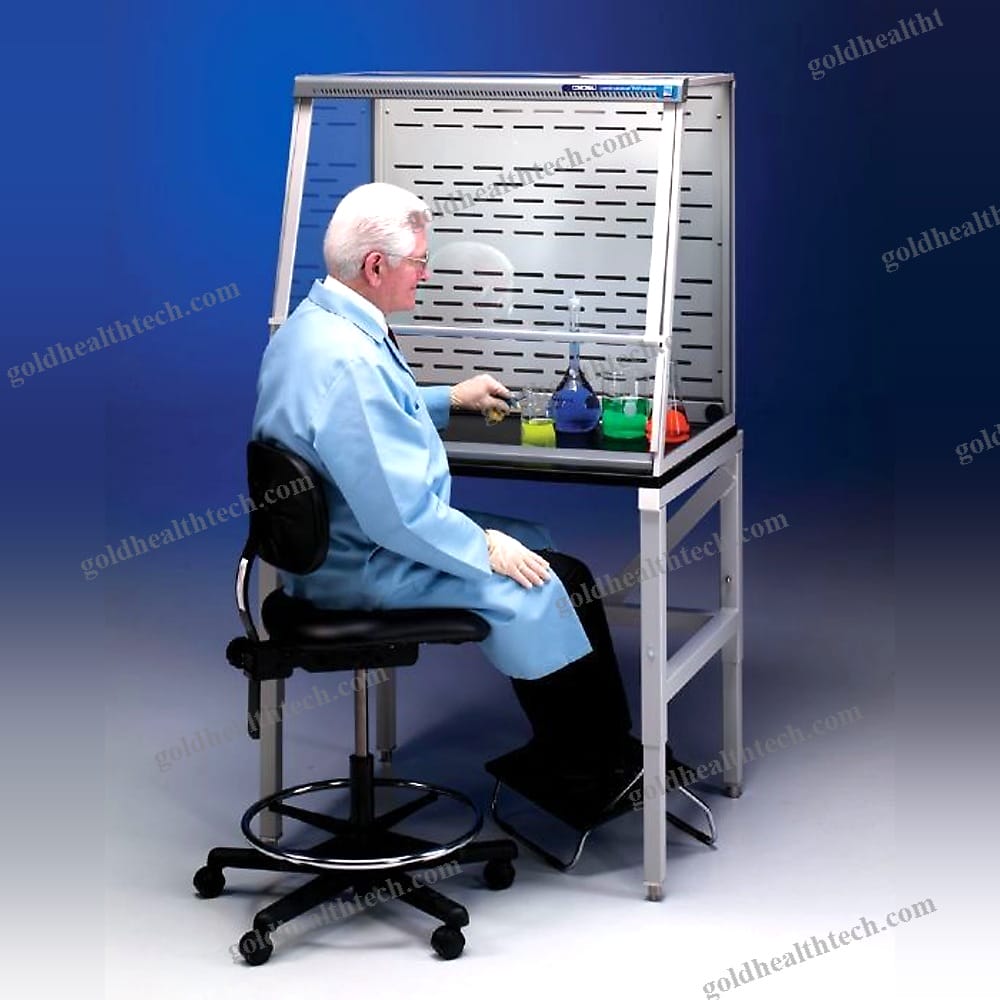

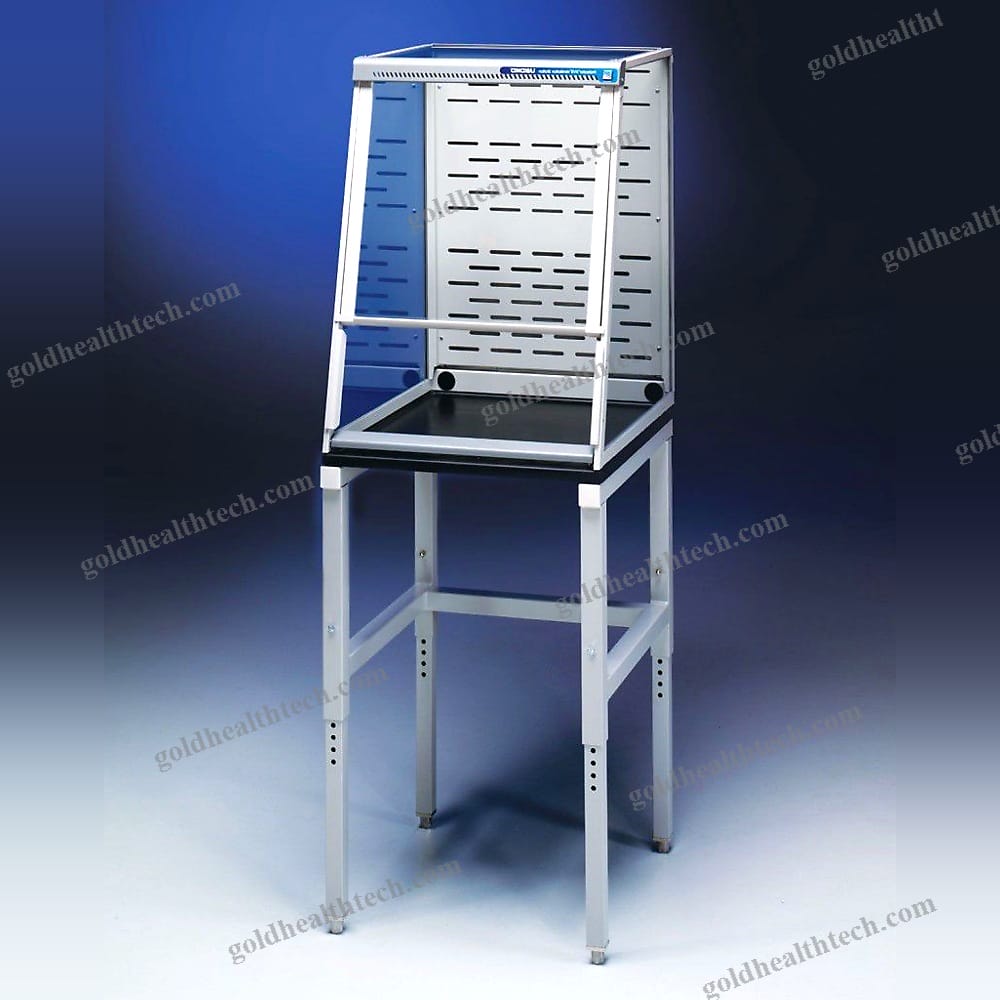

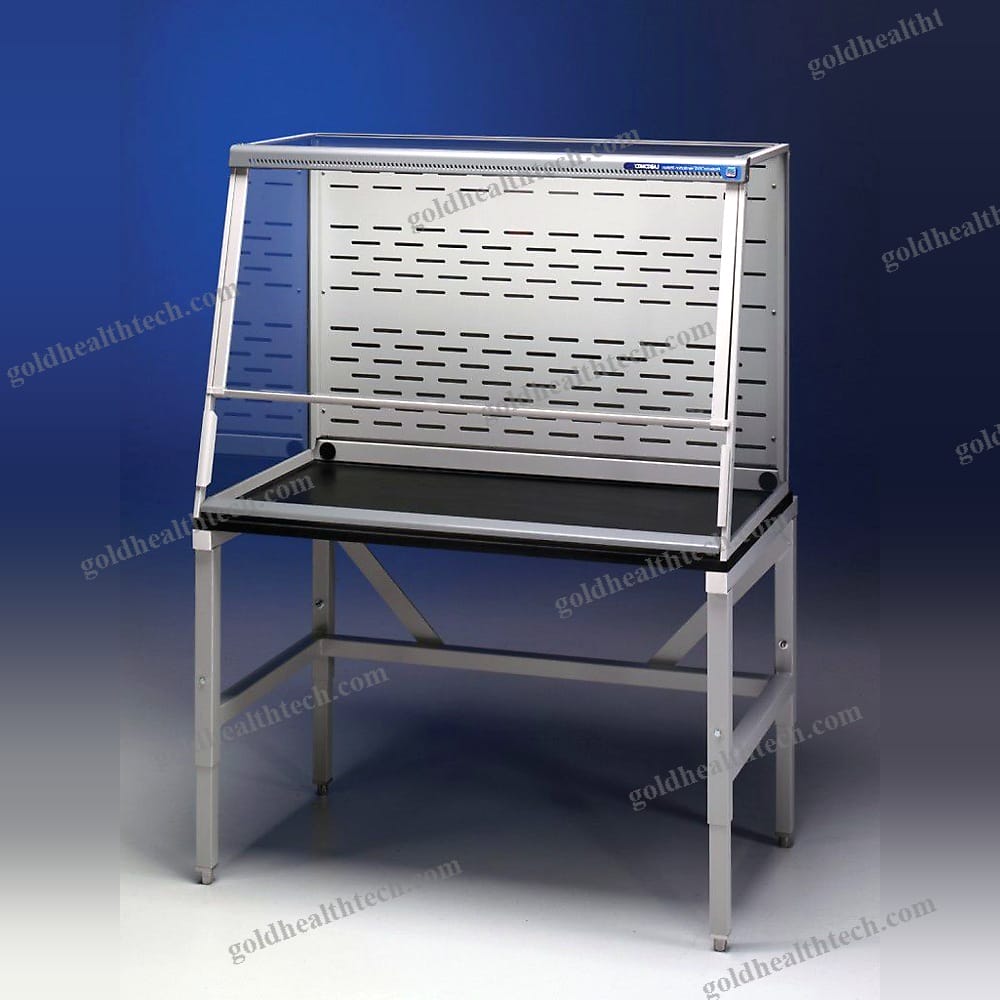

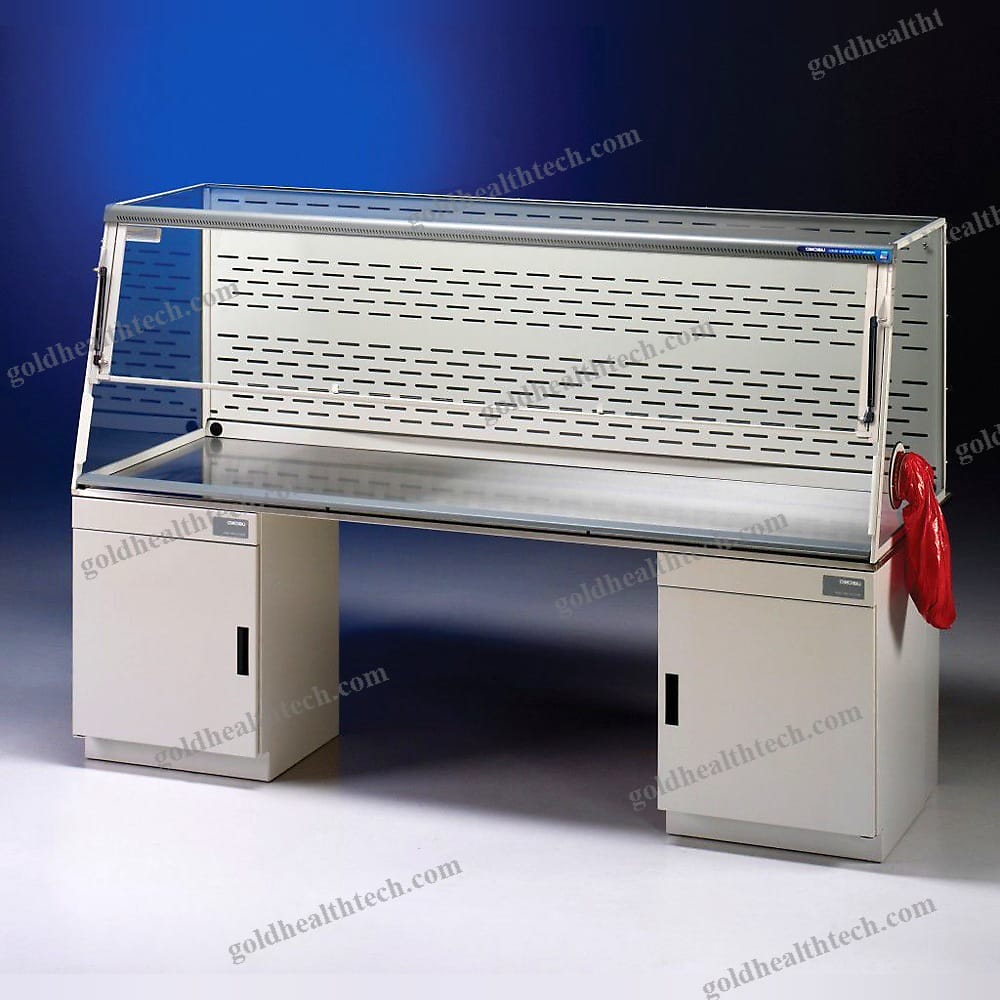

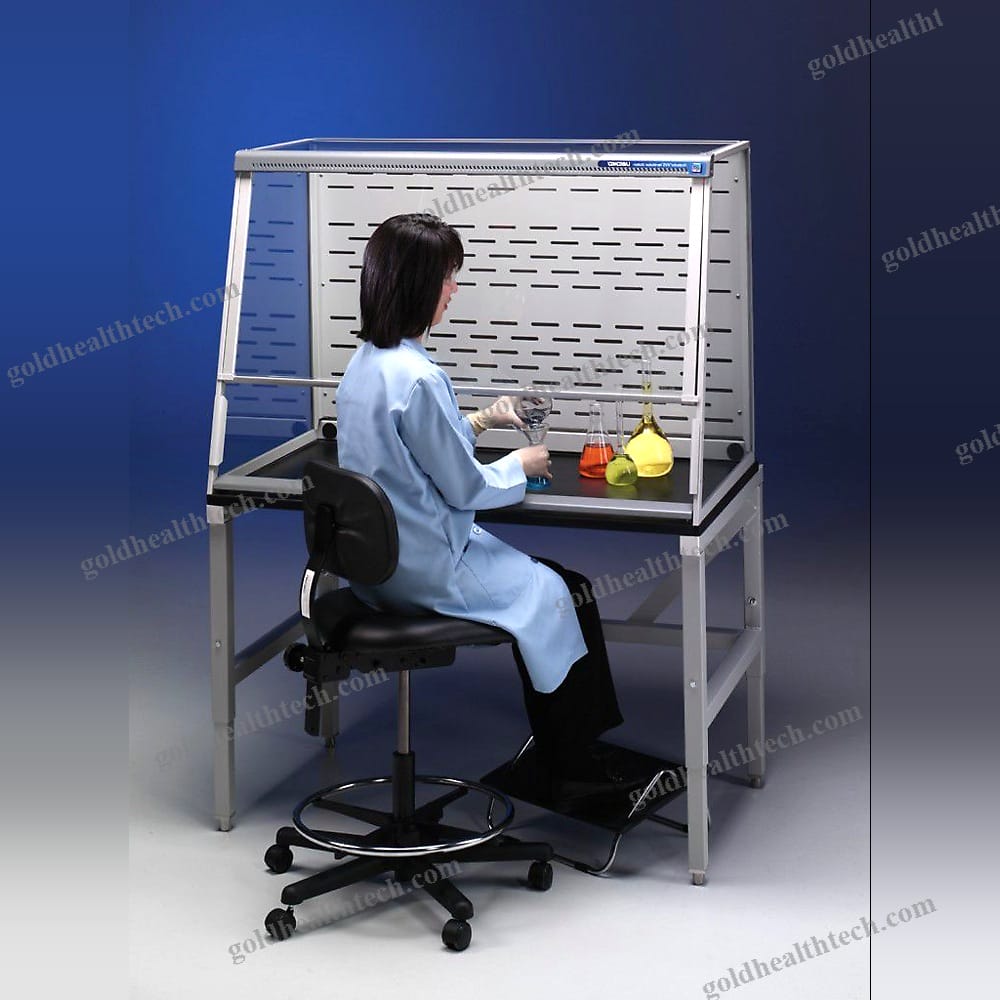

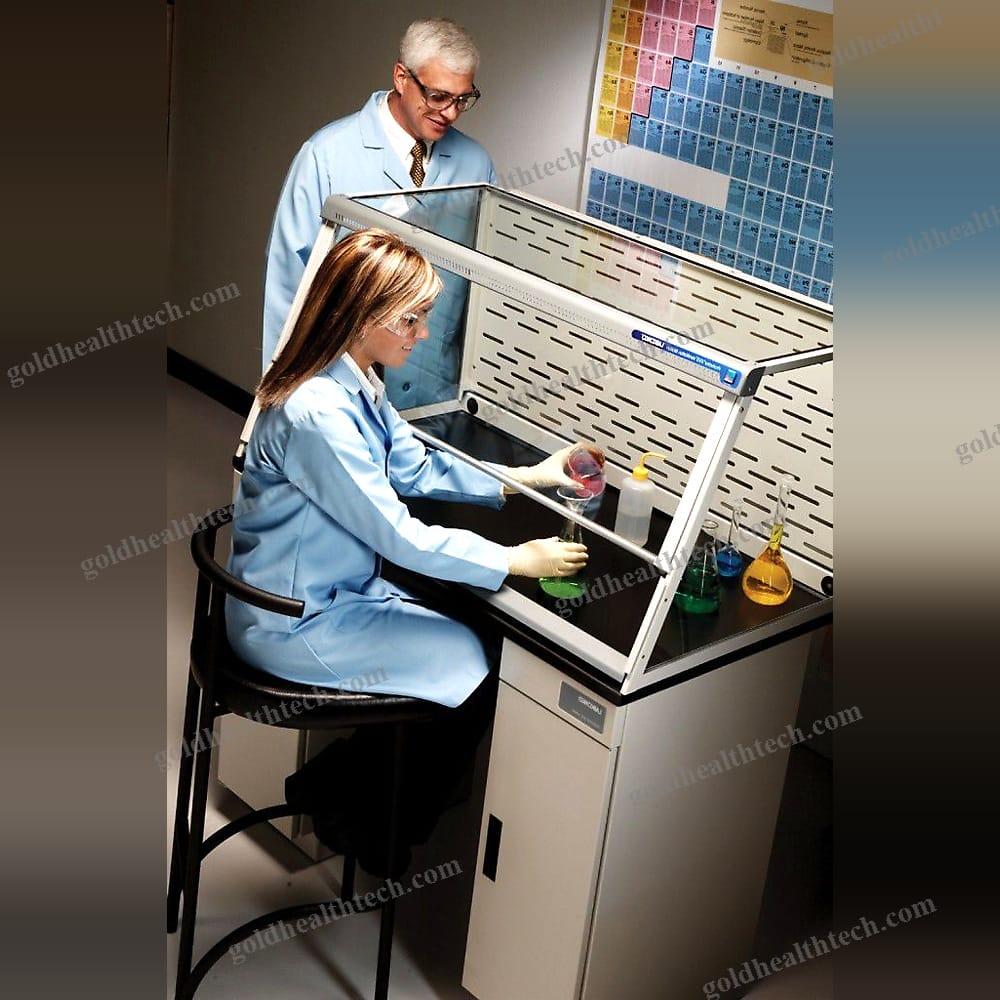

Protector XVS Ventilation Stations are versatile and can be employed as light-duty fume hoods, science classroom workstations, solvent cleaning work bays, weighing stations, or for pathology and cytology. They are well-suited for educational settings due to their low profiles and glass tops and sides. The Clean-Sweep air foil and zone-perforated rear baffle, which are patented (U.S. Patent No. 6,461,233), are designed to optimize containment.
The Protector XVS Ventilation Stations can be connected to the FilterMate Portable Exhauster for HEPA and/or carbon filtered exhaust to be returned to the laboratory, or they can be ducted to the exterior.input:
output:Features (All Models)
Bypass airflow configurationinput:
output:
A variety of apparatus, including large balances, can be easily accommodated by the deep interior of 23.4" or 30.0" depending on the model.input:
output:Clean-Sweepâ„¢ air foil that has been patentedinput:
output:In order to redirect concentrations of contaminants away from the operator's breathing zone, the upper containment sash foil bleeds air into the enclosure.input:
output:The upper dilution air supply introduces room air at the top of the sash to dilute concentrations in the upper chamber and floods the back of the sash with clean air.input:
output:The horizontal laminar airflow is optimized to maximize containment by the patented pivoting rear baffle, which features zones of perforations.input:
output:Air foils that enter from the sideinput:
output:Powder-coated aluminum frame, steel rear plenum and baffle, and glacier white and gray. No unreliable plastic-to-plastic bonding is employed.The front sash, sides, and top are made of tempered safety glass, which provides exceptional protection, visibility, and ambient light.Ergonomic 20° angled and hinged pivoting sash with a wiping seal. An external gas-assist lift is integrated into the sashes of the 5', 6', and 8' models.
The Protector XVS Ventilation Stations can be connected to the FilterMate Portable Exhauster for HEPA and/or carbon filtered exhaust to be returned to the laboratory, or they can be ducted to the exterior.input:
output:Features (All Models)
Bypass airflow configurationinput:
output:
A variety of apparatus, including large balances, can be easily accommodated by the deep interior of 23.4" or 30.0" depending on the model.input:
output:Clean-Sweepâ„¢ air foil that has been patentedinput:
output:In order to redirect concentrations of contaminants away from the operator's breathing zone, the upper containment sash foil bleeds air into the enclosure.input:
output:The upper dilution air supply introduces room air at the top of the sash to dilute concentrations in the upper chamber and floods the back of the sash with clean air.input:
output:The horizontal laminar airflow is optimized to maximize containment by the patented pivoting rear baffle, which features zones of perforations.input:
output:Air foils that enter from the sideinput:
output:Powder-coated aluminum frame, steel rear plenum and baffle, and glacier white and gray. No unreliable plastic-to-plastic bonding is employed.The front sash, sides, and top are made of tempered safety glass, which provides exceptional protection, visibility, and ambient light.Ergonomic 20° angled and hinged pivoting sash with a wiping seal. An external gas-assist lift is integrated into the sashes of the 5', 6', and 8' models.
