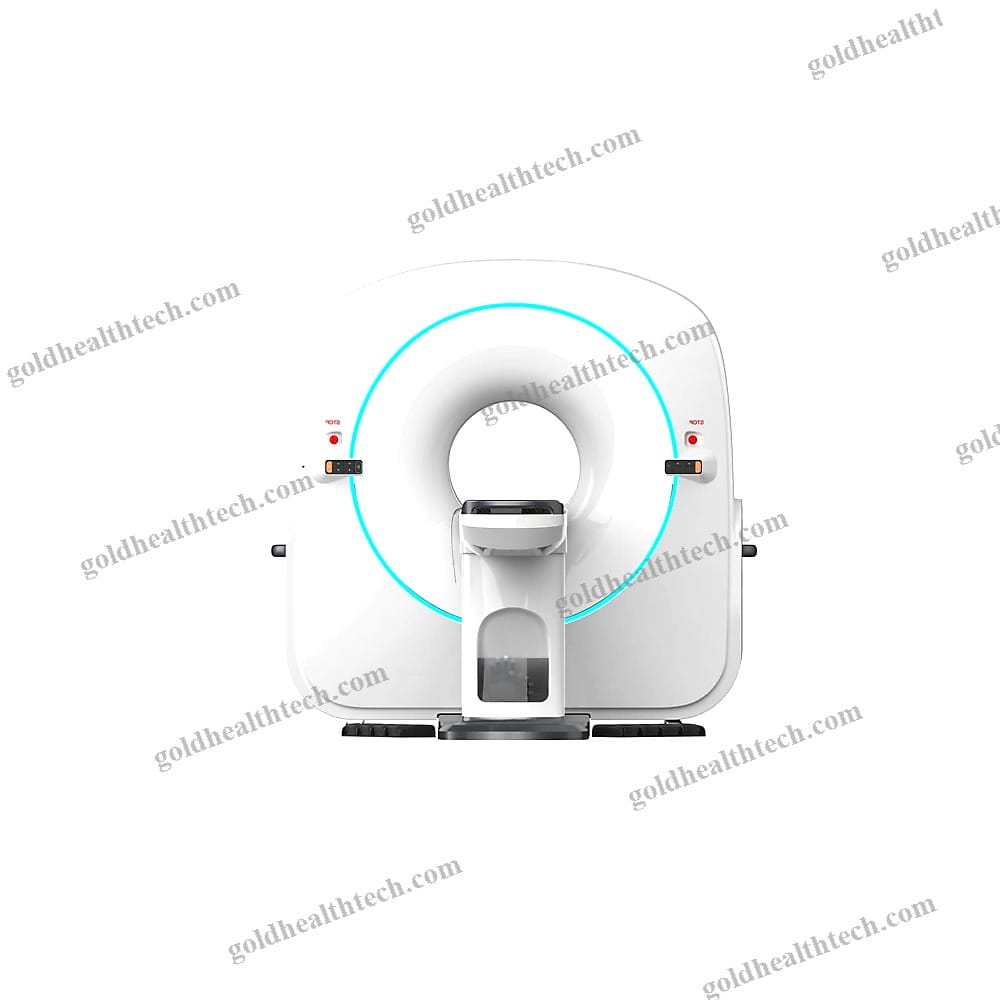

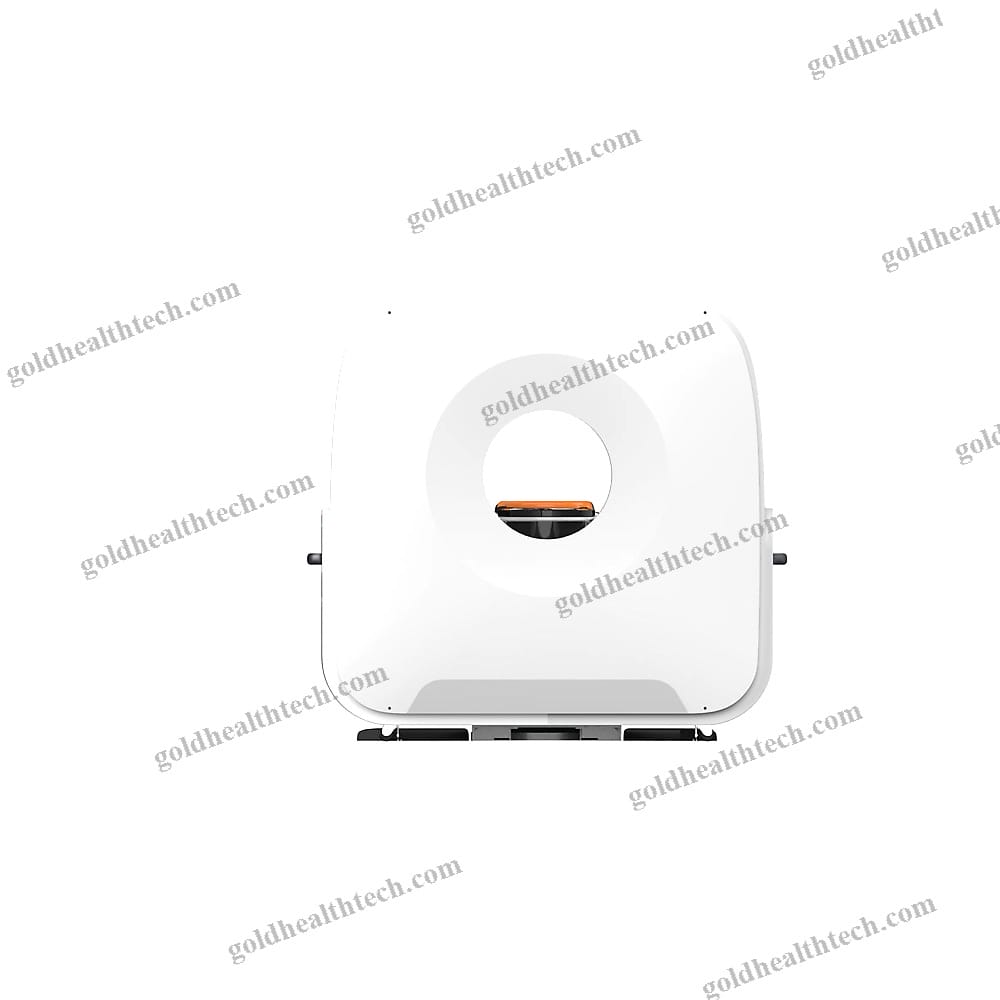

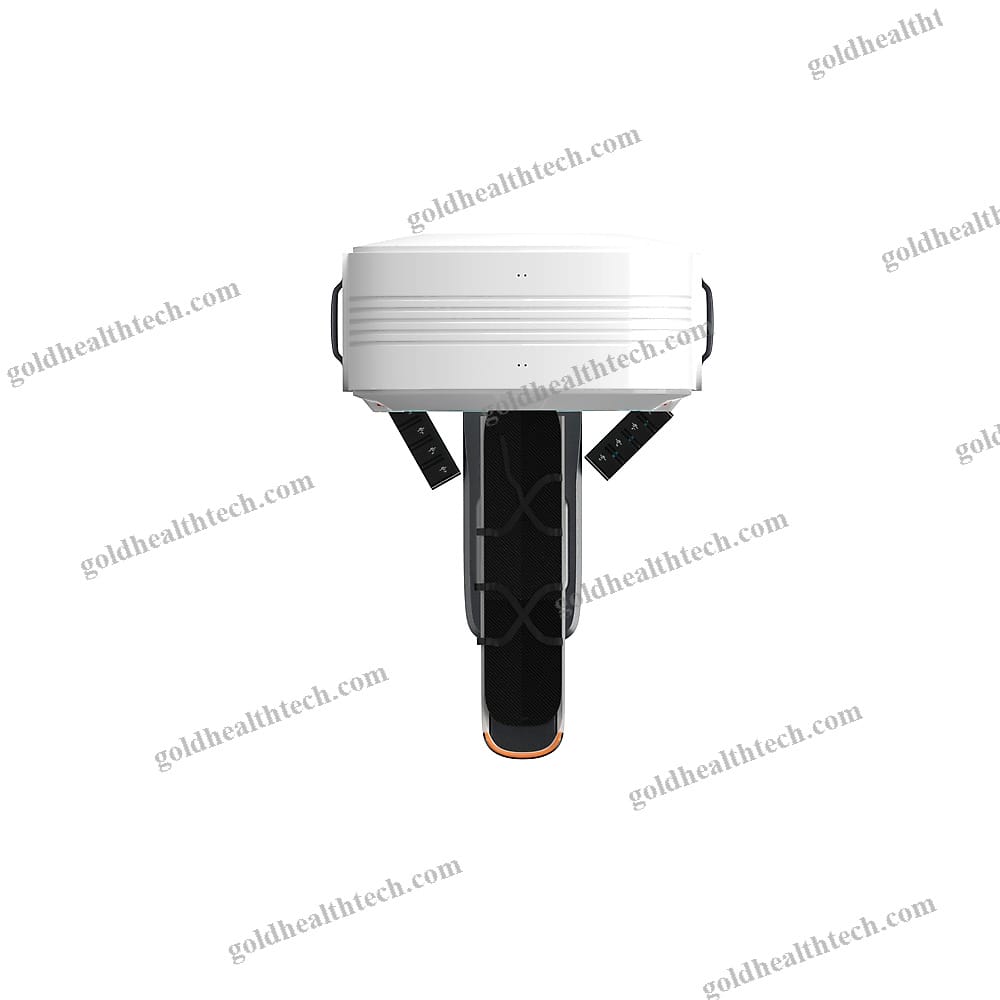

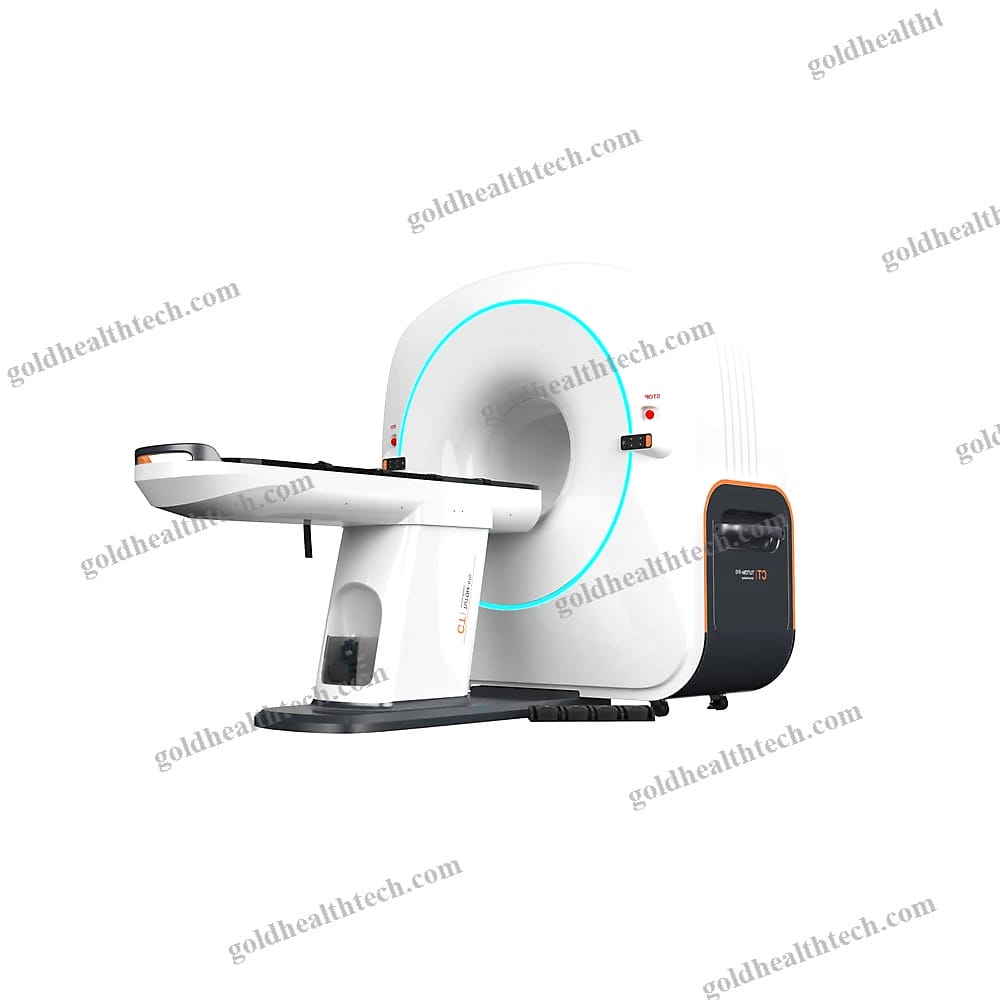

Veterinary Ct Scanner
| System Type | Veterinary Ct Scanner |
| Type Of Animal | For Pets |
| System Type | Veterinary Ct Scanner, Veterinary Cbct Scanner |
| Type Of Animal | For Pets, For Small Animals |
Associated tags
Product review
Catalog record
Inquiry support
Product summary
Description:AC220V single-phase input voltage
50Hz is the supply frequency.Power capacity: A minimum of 3.5 kVABed dimensions: 1850mm x 550mm x 730mm, with a tolerance of ±5%.
Scanning frame dimensions: 1670mm x 810mm x 1600mm, with a tolerance of ±5%.
0 to 800 mm deviation±5% bed surface translation rangeThe bed can be raised by a maximum of 150mm with a deviation of ±5%.
Bearing: 50 kgMaximum pulse fluoroscopic output electrical power: 1.875kW (15mA, 125kV, 10s)Maximum continuous fluoroscopic output electrical power: 1.5kW (12mA, 125kV, 20s)Standard pulse fluoroscopy output electrical power is 1.6kW (16mA, 100kV, 10s).Maximum continuous fluoroscopic output electrical power: 1.4kW (14mA, 100kV, 20s)Tube voltage/kV - 50kV to 125kV, adjustable in 1kV increments, deviation ≤±10%
Tube current/mA - 1mA to 16mA, adjust to desired levels, adjustable in 1mA increments, accuracy is within ±1mA.loading time in milliseconds - 24 seconds, calculated from the external trigger's loading timeImaging size: 307.2mm x 245.7mmSpatial resolution: ≥1.7 lp/mmImaging time: ≤40 secondsAmbient temperature: 10℃ to 40℃relative humidity - 30% to 75%Atmospheric pressure: 70kPa to 106kPaAmbient temperature: -20℃ to 55℃relative humidity - 30% to 93%atmospheric pressure - 70kPa to 106kPa
50Hz is the supply frequency.Power capacity: A minimum of 3.5 kVABed dimensions: 1850mm x 550mm x 730mm, with a tolerance of ±5%.
Scanning frame dimensions: 1670mm x 810mm x 1600mm, with a tolerance of ±5%.
0 to 800 mm deviation±5% bed surface translation rangeThe bed can be raised by a maximum of 150mm with a deviation of ±5%.
Bearing: 50 kgMaximum pulse fluoroscopic output electrical power: 1.875kW (15mA, 125kV, 10s)Maximum continuous fluoroscopic output electrical power: 1.5kW (12mA, 125kV, 20s)Standard pulse fluoroscopy output electrical power is 1.6kW (16mA, 100kV, 10s).Maximum continuous fluoroscopic output electrical power: 1.4kW (14mA, 100kV, 20s)Tube voltage/kV - 50kV to 125kV, adjustable in 1kV increments, deviation ≤±10%
Tube current/mA - 1mA to 16mA, adjust to desired levels, adjustable in 1mA increments, accuracy is within ±1mA.loading time in milliseconds - 24 seconds, calculated from the external trigger's loading timeImaging size: 307.2mm x 245.7mmSpatial resolution: ≥1.7 lp/mmImaging time: ≤40 secondsAmbient temperature: 10℃ to 40℃relative humidity - 30% to 75%Atmospheric pressure: 70kPa to 106kPaAmbient temperature: -20℃ to 55℃relative humidity - 30% to 93%atmospheric pressure - 70kPa to 106kPa
