Craniotomy Simulator
| Application | Surgery, Surgical, Anatomy |
| Other Characteristics | Disposable |
| Form | Upper Body |
| Type | Pediatric |
| Procedure | Craniotomy |
| Operation | Electric |
| Applications | Universal |
| Features | Trendelenburg, Reverse Trendelenburg, Radiolucent, Adjustable Height |
| Power Source | 220V / 50Hz |

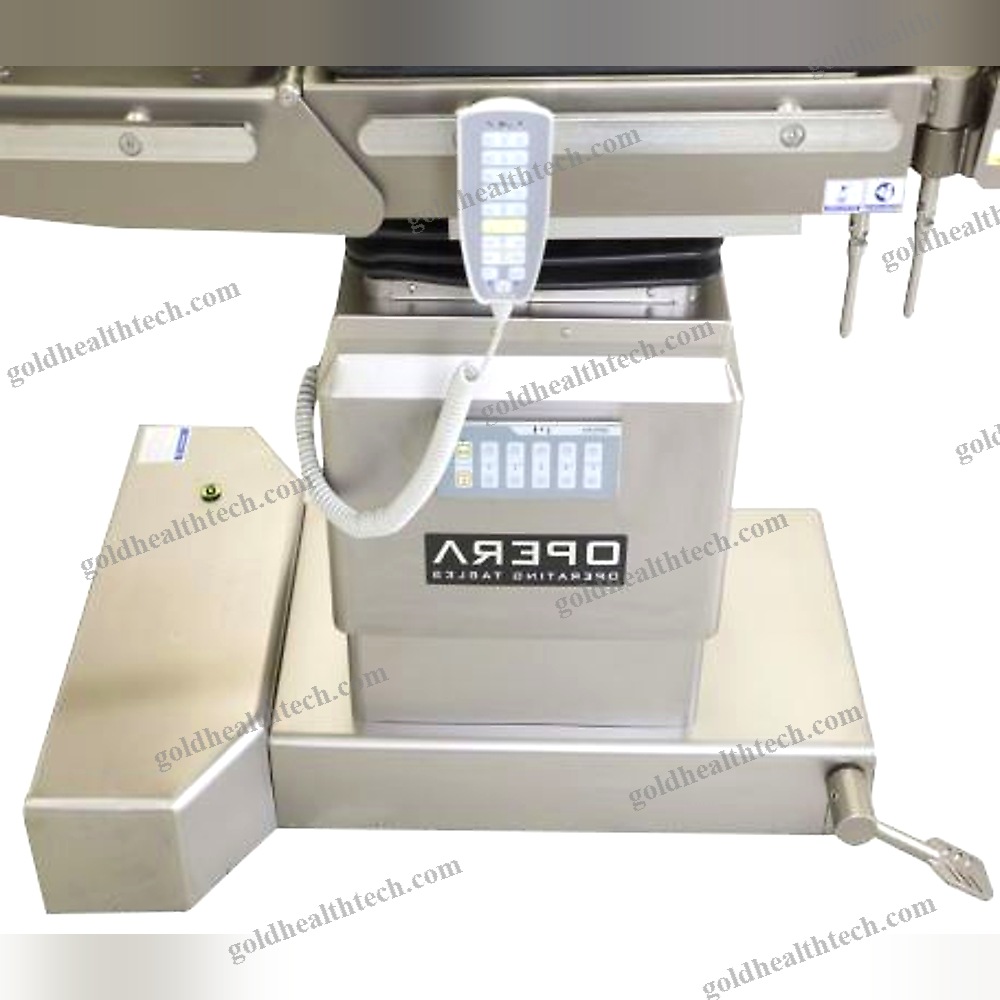

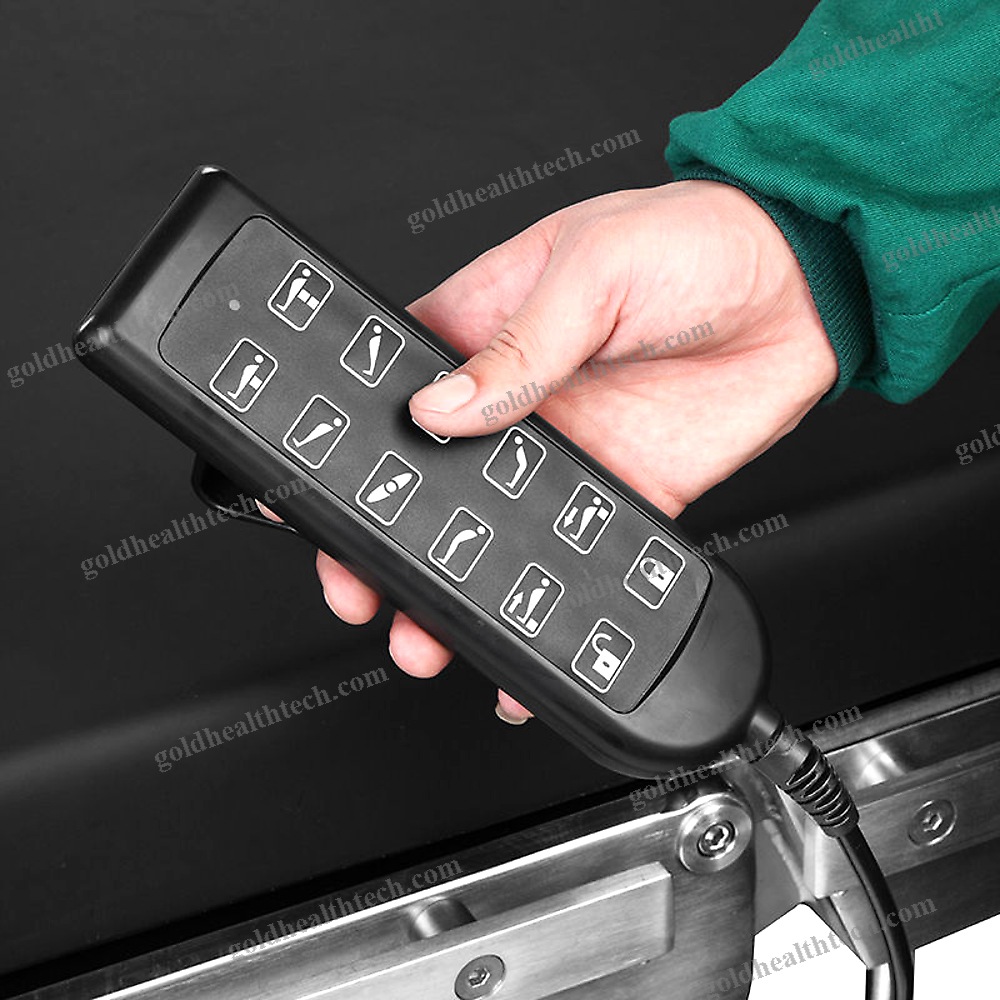

| Components | With Remote Control, With Legrest, With Armrest |
Associated tags
Product review
Catalog record
Inquiry support
Product summary

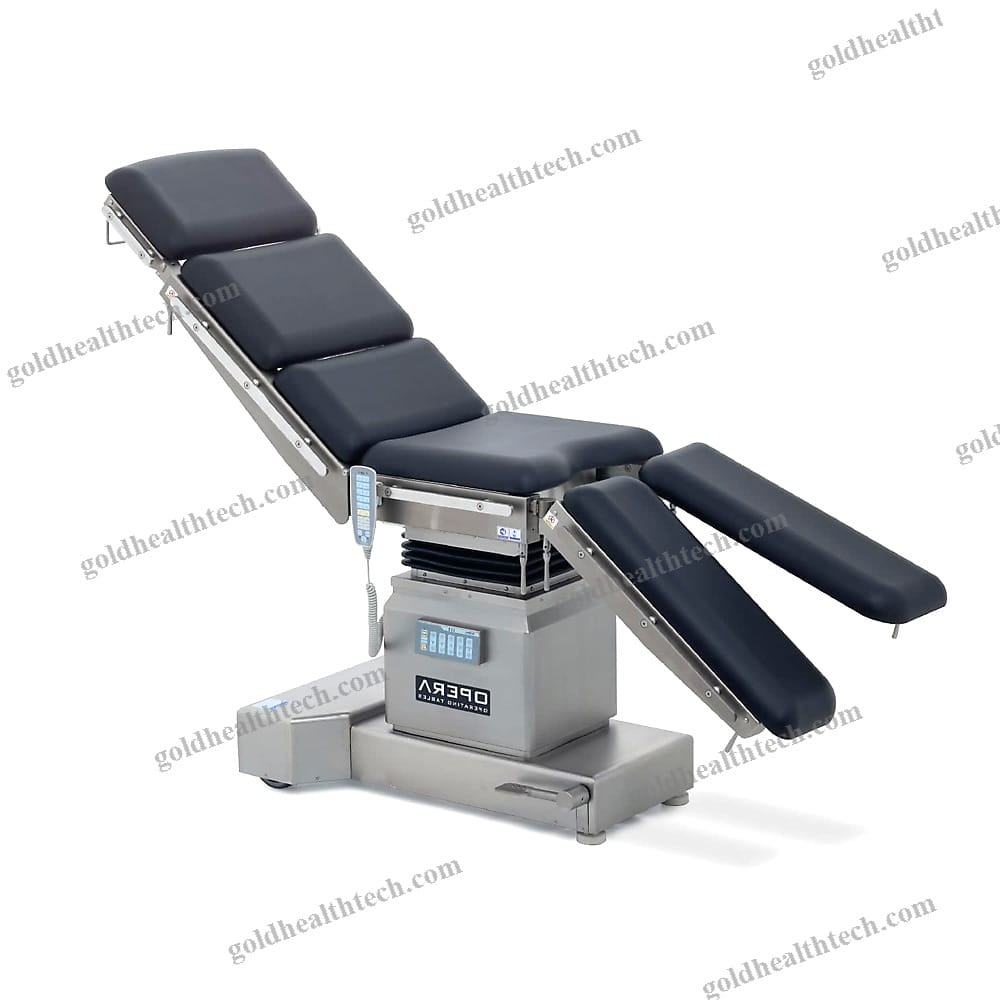

Description: The FYE300C electric operating table is specifically designed to accommodate the needs of general surgical procedures.It is constructed from full 304 stainless steel, which possesses exceptional anti-rust properties.X-raying is feasible for the tabletop.It is possible to slide for a distance exceeding 300mm, which is sufficient to satisfy the requirements of the C-arm.input:
output:Technical Specifications: 2000mm in length and 550mm in width. elevation (up/down): 680mm/930mm Trendelenburg: ≥25° Reverse Trendelenburg: ≥25°
Lateral Tilt (left/right): 1.5°/15° Headrest (up/down): 45°/90°

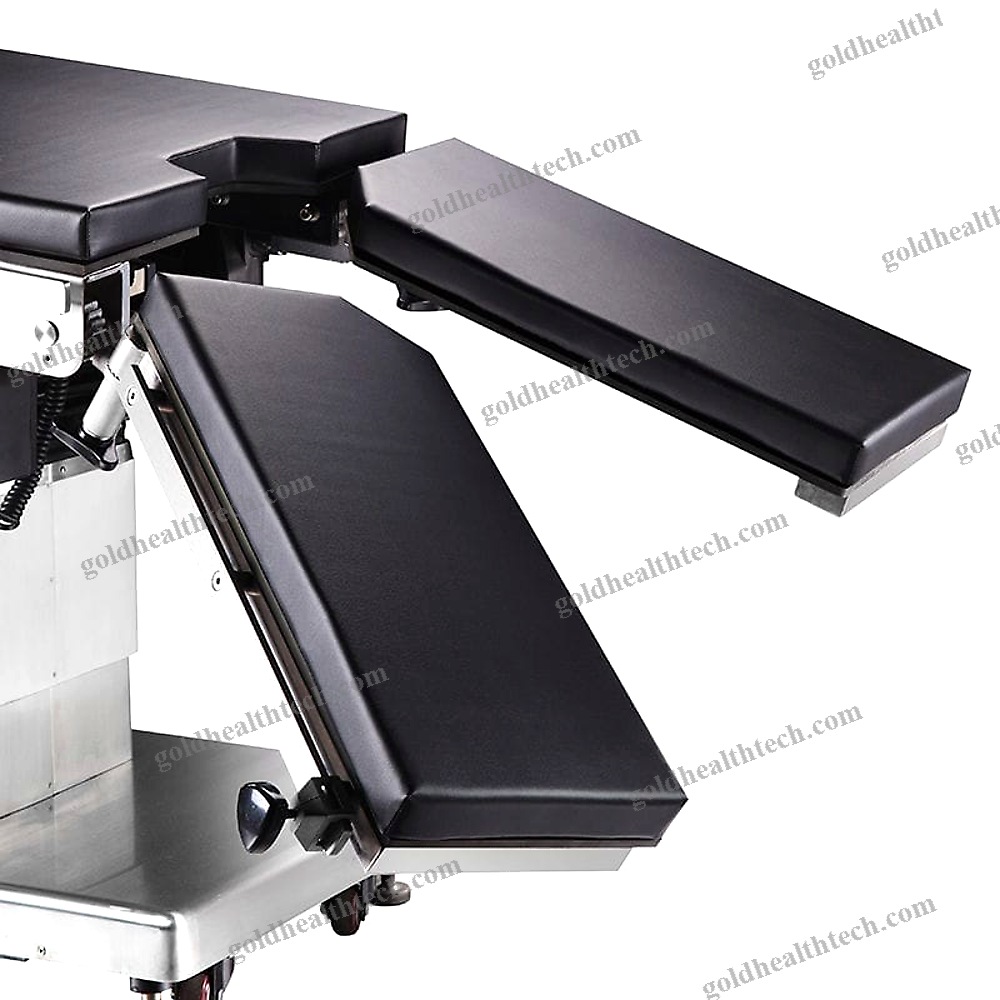

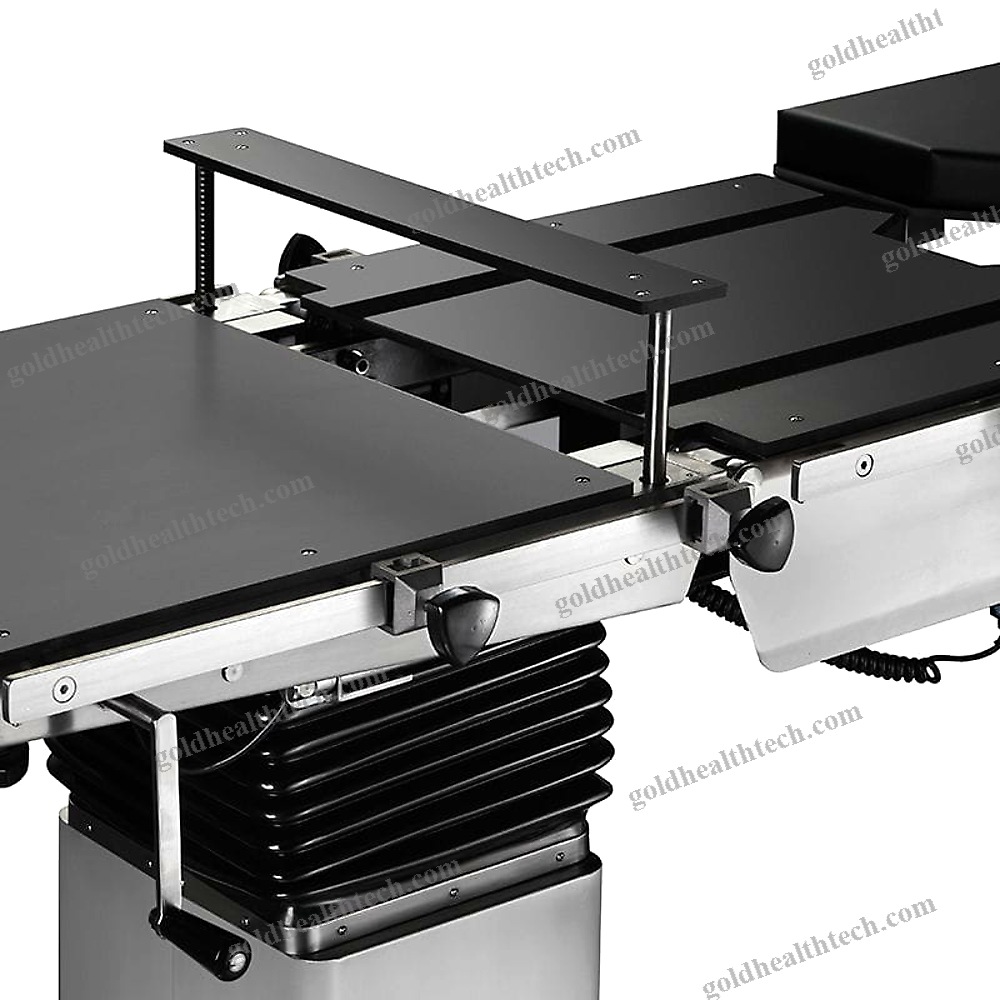

90°90°15° (up/down/horizontal positioning)Back plate (up/down): 75°/20° Kidney bridge: 110mm Sliding: 300mm Power: 1.0kW, 220V, 50HzAccessories that are considered standard * One anesthetic screen * Two shoulder rests * Two-arm support * 2 Waist Support * Two knee crutches * Two foot plates * Two long sliders
output:Technical Specifications: 2000mm in length and 550mm in width. elevation (up/down): 680mm/930mm Trendelenburg: ≥25° Reverse Trendelenburg: ≥25°
Lateral Tilt (left/right): 1.5°/15° Headrest (up/down): 45°/90°
90°90°15° (up/down/horizontal positioning)Back plate (up/down): 75°/20° Kidney bridge: 110mm Sliding: 300mm Power: 1.0kW, 220V, 50HzAccessories that are considered standard * One anesthetic screen * Two shoulder rests * Two-arm support * 2 Waist Support * Two knee crutches * Two foot plates * Two long sliders
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Related products
Back to catalog

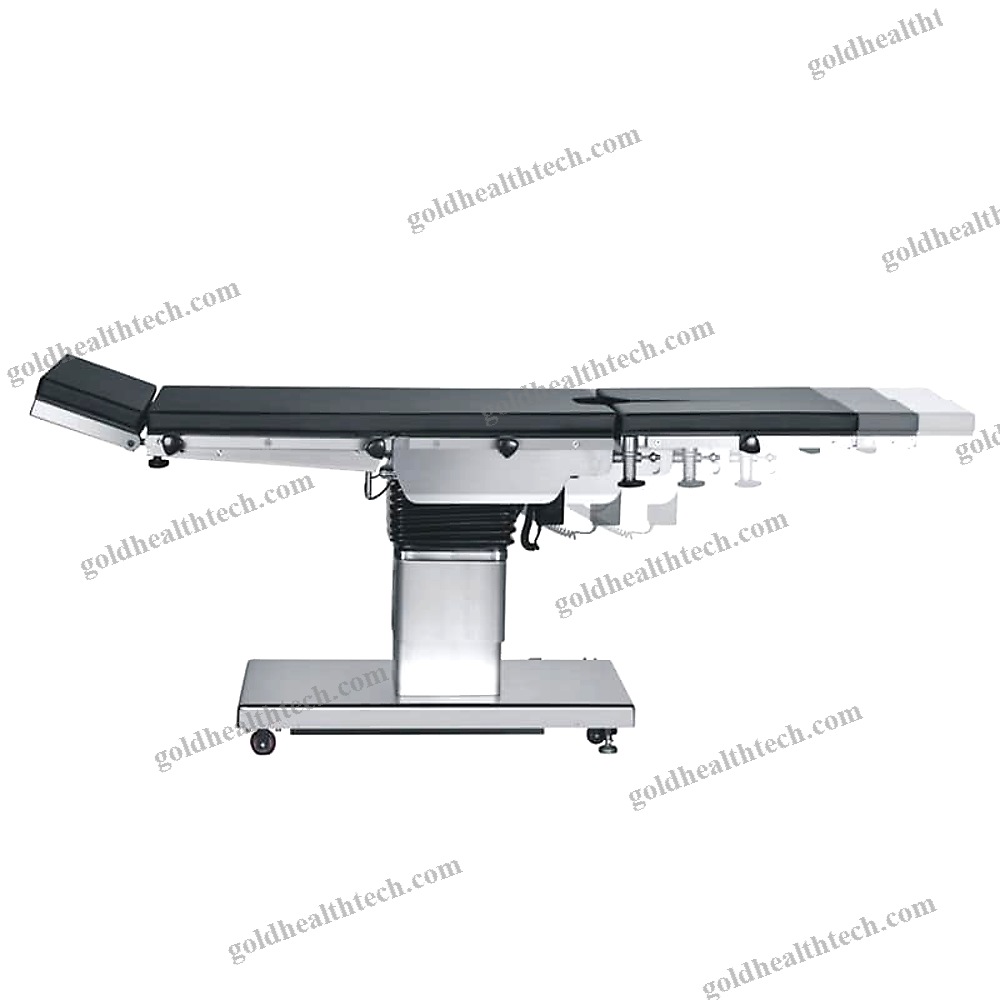

Universal Operating Table
