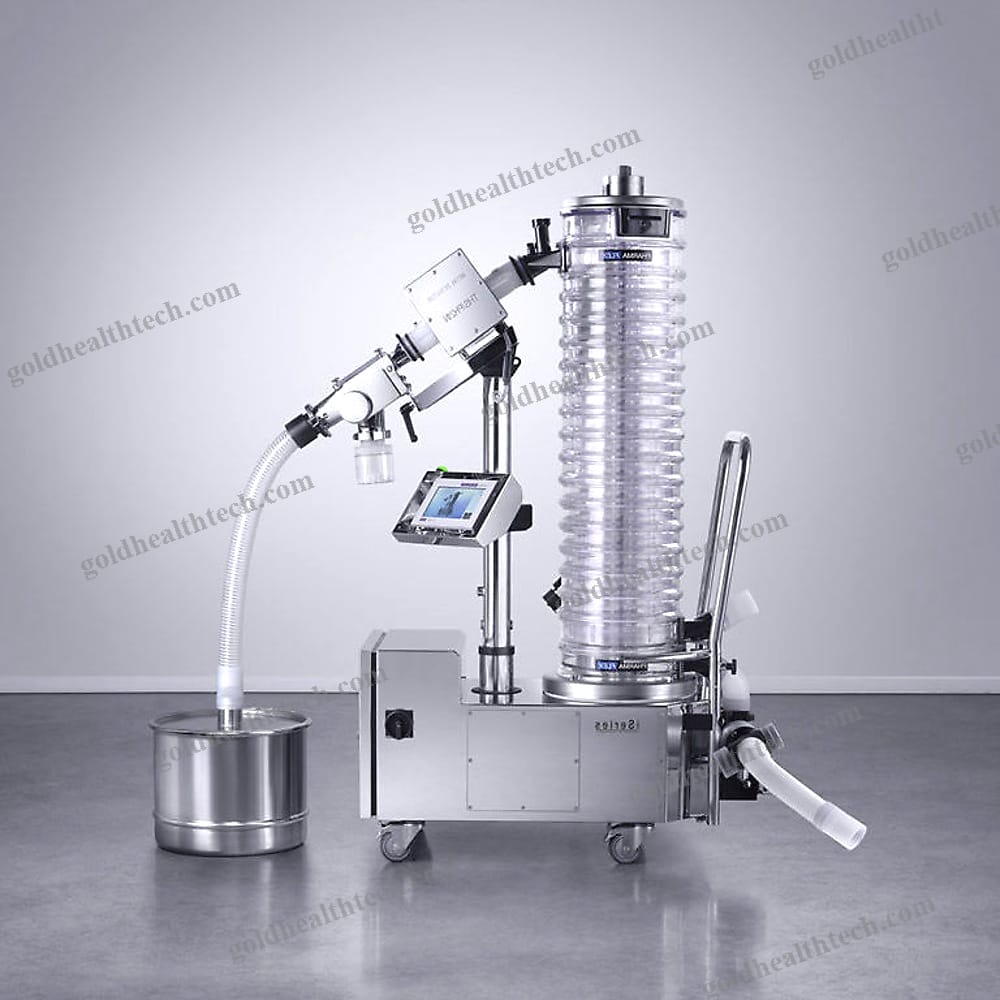

Tablet Deduster

The operator’s exposure to product and dust contamination in the production room is minimized by the “DT” Dust Tight model. Dust Tight systems are capable of being upgraded to “C” Containment and “HC” High Containment washable solutions through modular means.Key advantages

ATEX-certified patented “Dust Tight” dedusting and metal check.

Compact footprint – Five elevation heights ranging from 500 mm to 1500 mm

Light components that have been approved by the Food and Drug Administration for use in the handling

Robust, Reliable, Efficient, and Ergonomic

The operation is quiet, with a noise level of less than 69 dB(A).No risk of cross-contamination – Simple validation

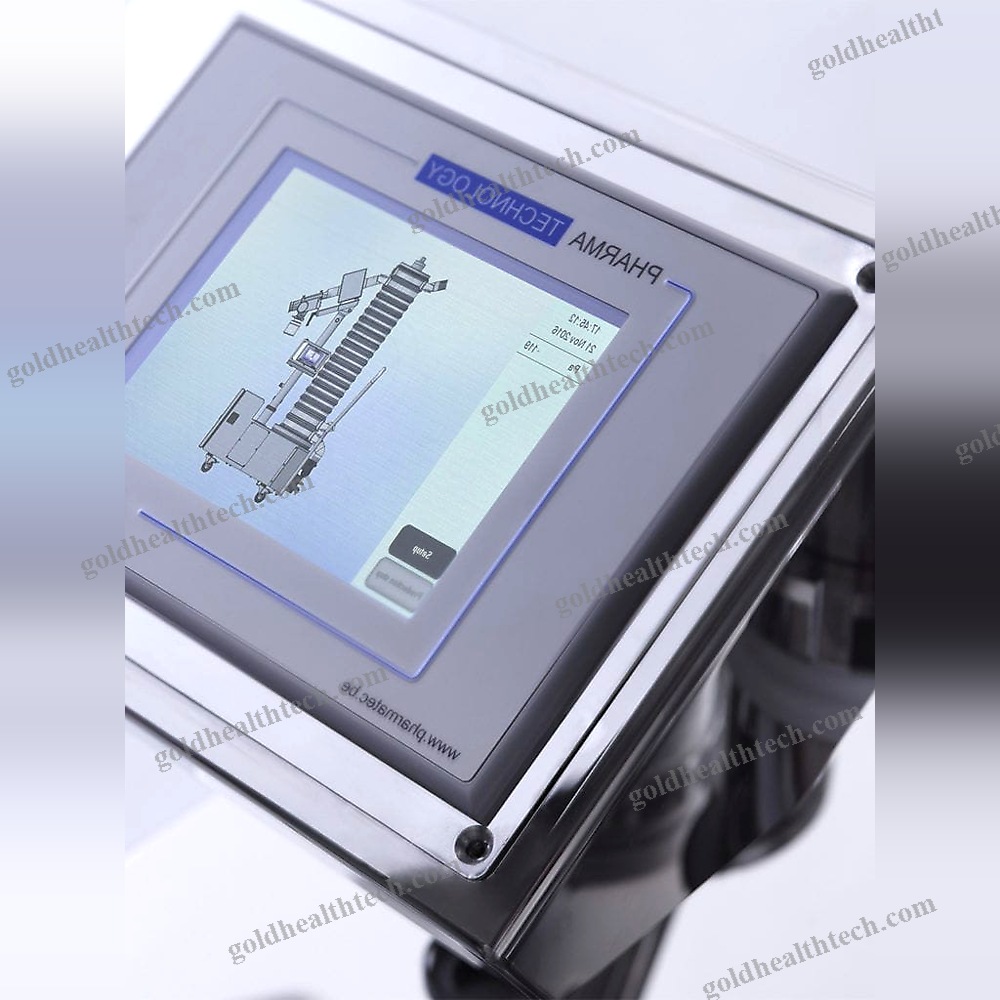

Central HMI with OPC UA, CFR 21 Part 11 compliantinput:
output:Our patented metal check system, Flex Connect, ensures a completely closed Dust Tight transfer from deduster to drum without the need for a tri-clamp solution.input:

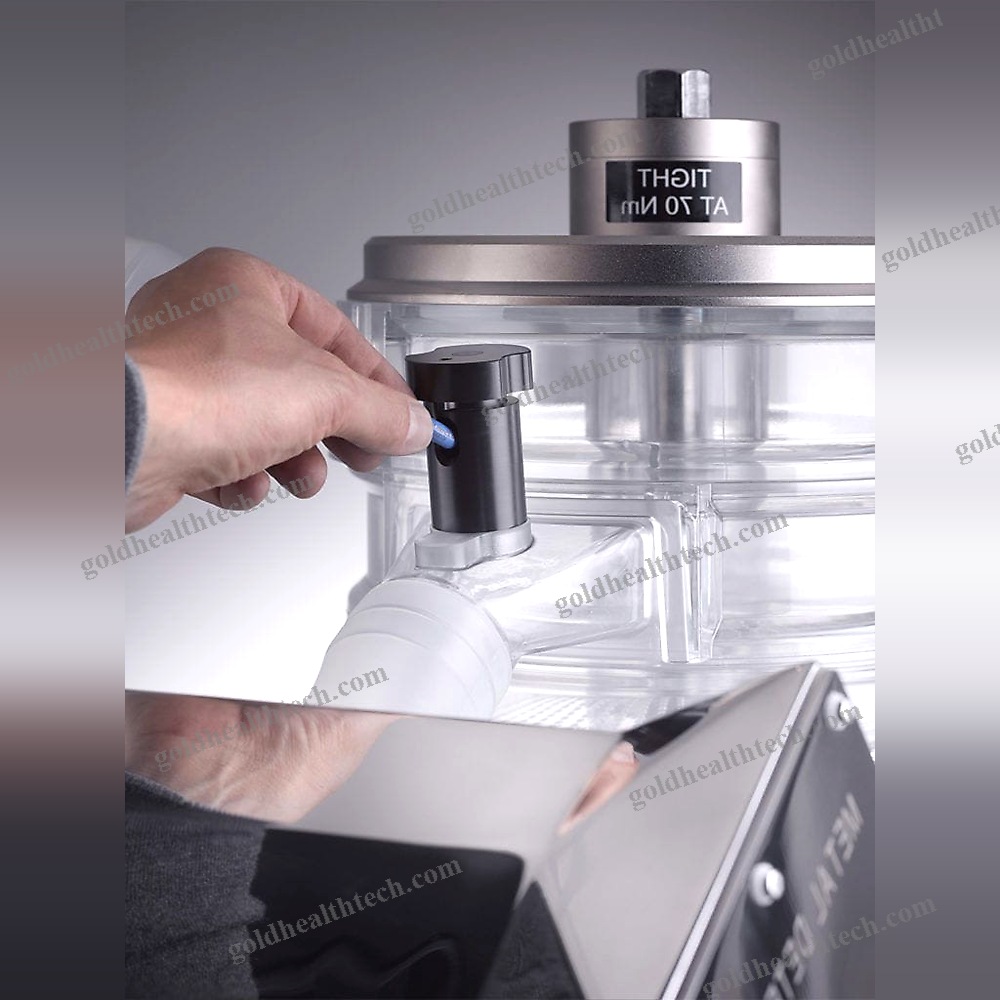

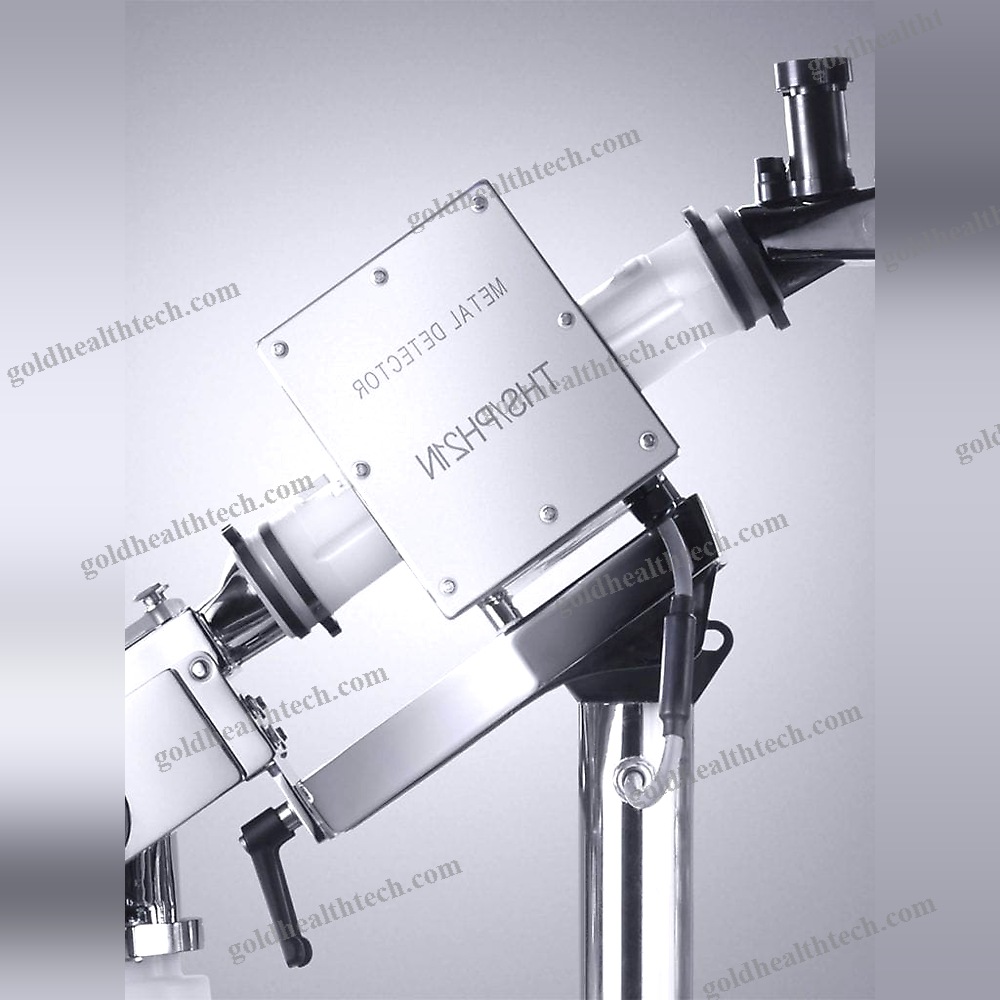

output:A metal particle detector is typically included in the unit. Lock, Ceia, and Safeline are the three detectors that customers may select. Our Flex Connect components isolate the vibrating components of the deduster from the steady components, as metal particle detectors are sensitive to vibrations. This enables the attainment of optimal accuracy, as evidenced by the spherical 316L stainless steel part of 0.4 mm in the products. We can introduce test samples into the metal check head using a smart system, which eliminates the need for the operator to come into contact with the product.input:
output:The original software of the metal check supplier is integrated into the central machine HMI to monitor the metal check parameters.input:
output:Five distinct conveying dedusting heights are accessible, ranging from 500 mm to 1500 mm.input:
output:This Dust Tight unit can be effortlessly converted into a “C” Containment or “HC” High Containment with a washable execution, thanks to its advanced engineering.
