Spray Disinfection Robot

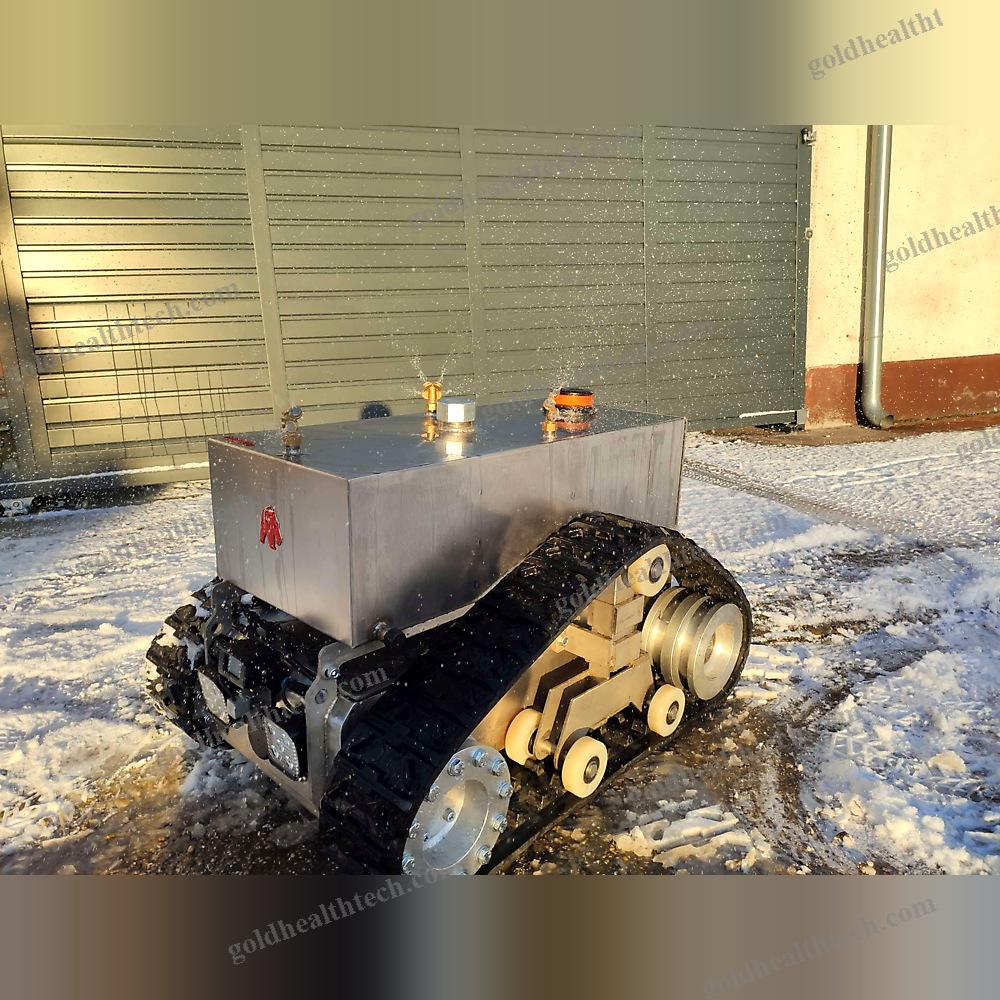

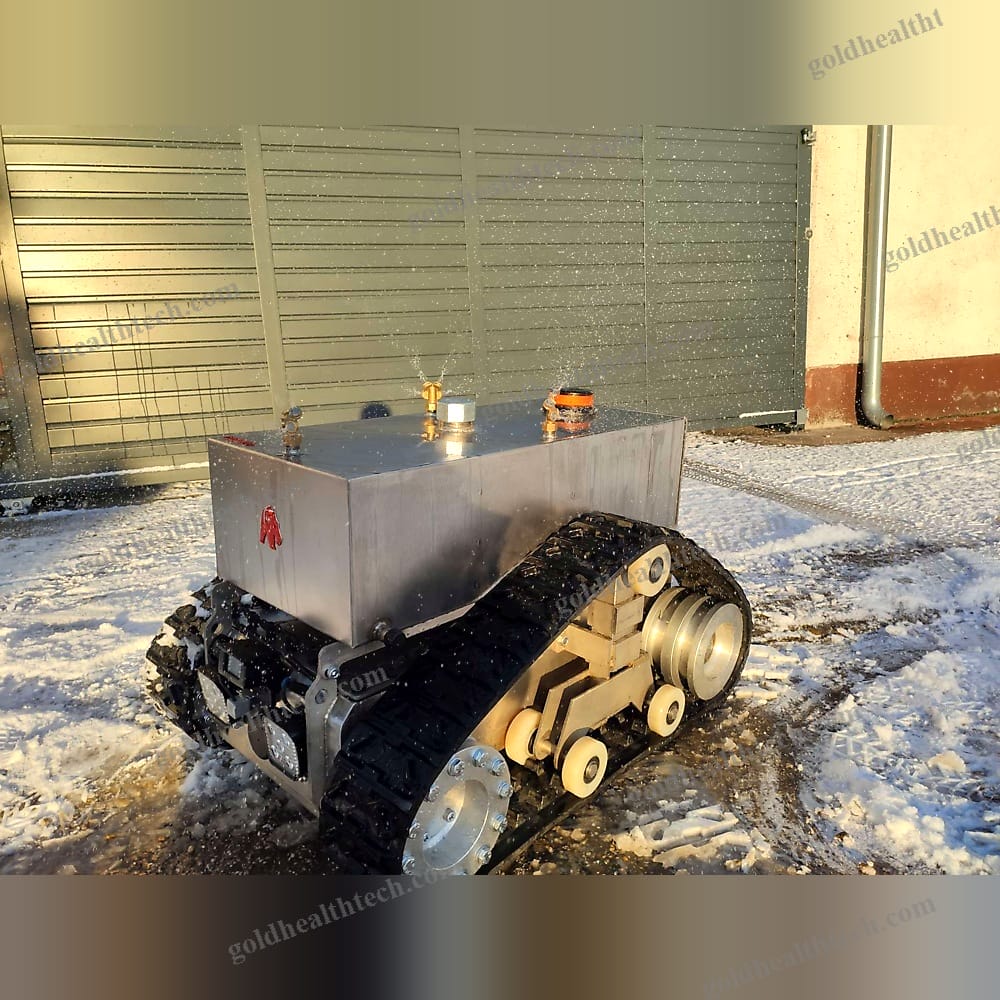

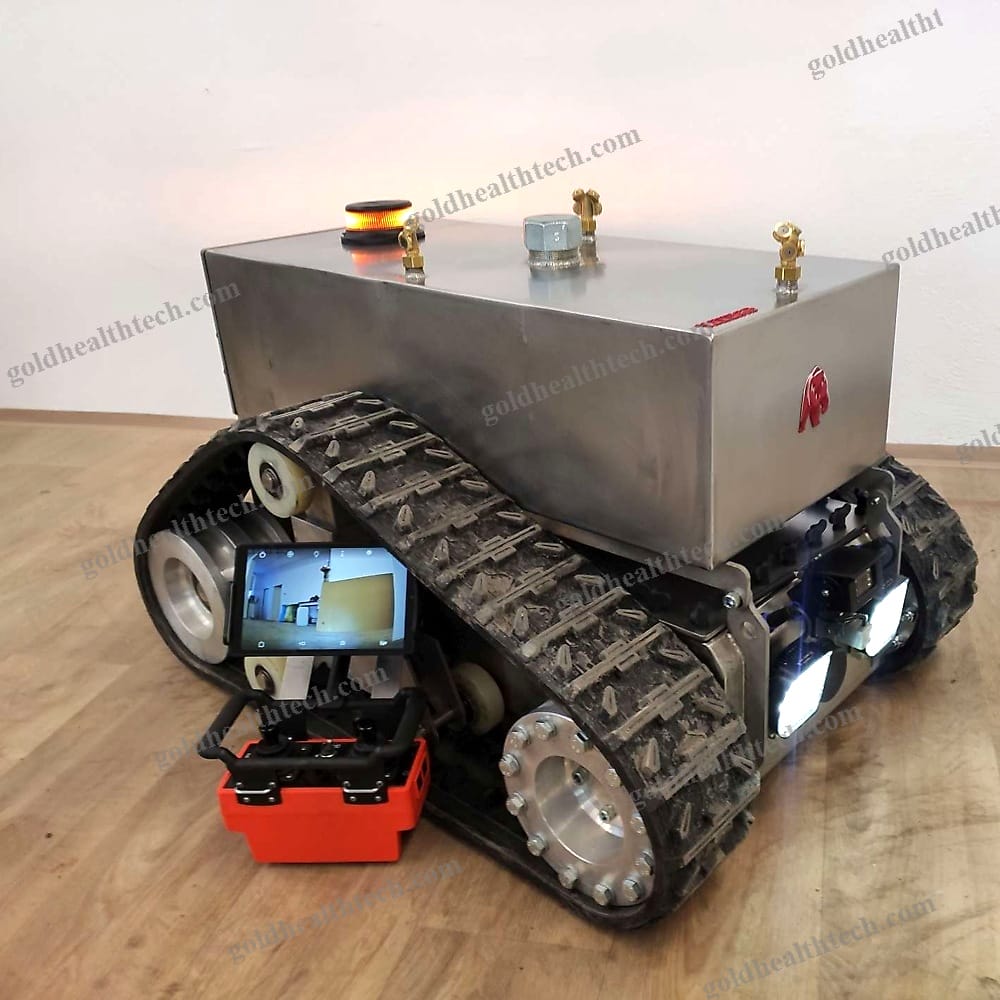

SummaryThe GRIZZLY PROMETHEUS is a mobile crawler robot that is operated by remote radio control.

A comprehensive video system with night vision that transmits images from the device to the operator.input:
output:Two body types are included: chemical disinfection and non-chemical disinfection.

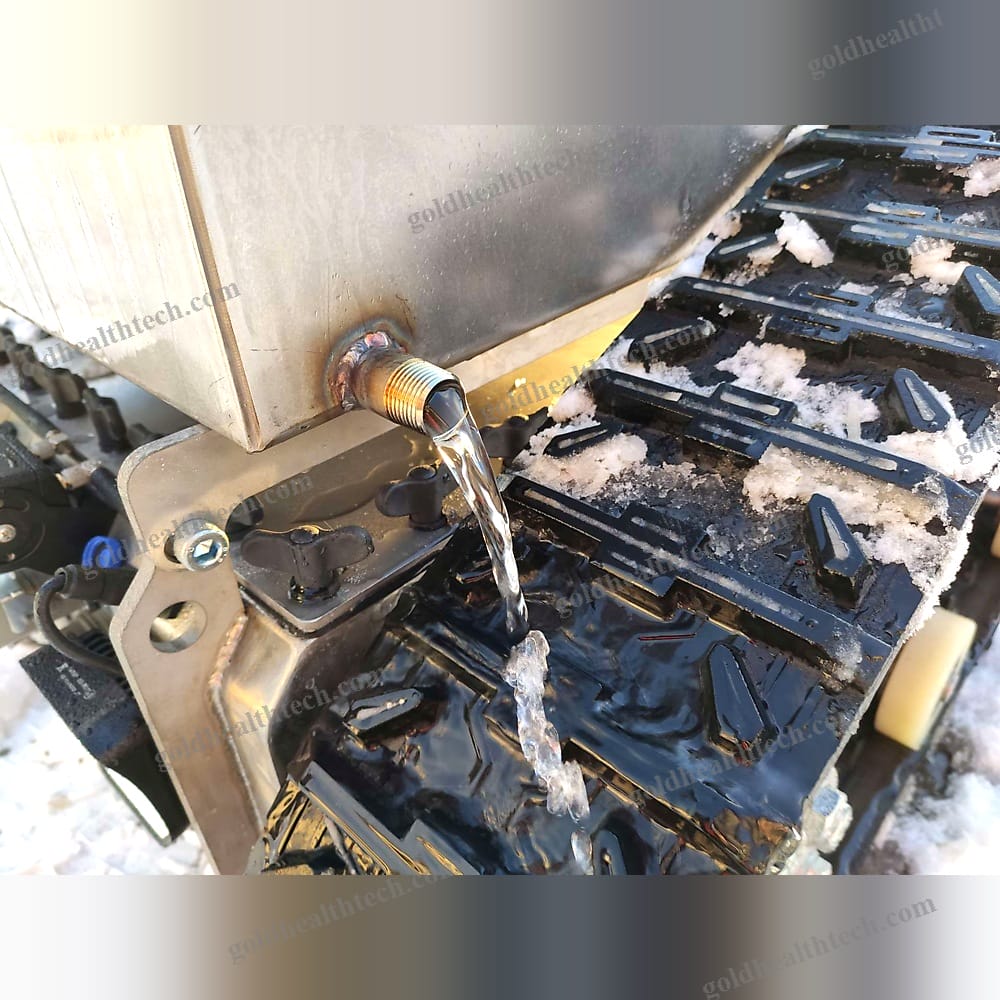

Chemical disinfection: This is a 50-liter tank that is equipped with a spray system that utilizes nozzles that can be adjusted to a 360-degree angle.

Disinfection without the use of chemicals: This is a performance-oriented ozone generator that includes a battery and ventilation system.

Suitable for interiors, the ozone generator produces an output of 80,000 mg/h.input:
output:Robot type: A crawler-based, mobile robot that is remote-controlled.input:
output:Protection against dust and water: IP67input:
output:Weight and dimensions of the robot without a tank: Dimensions: 97.8 cm in length, 68 cm in width, and 31.6 cm in height. Weight: 213 kilogramsinput:
output:Weight and dimensions of the robot with a 50-liter tank: Dimensions: 97.8 cm in length, 68 cm in width, and 63 cm in height. Weight: 240 kilogramsinput:
output:The robot with an ozone generator has the following dimensions and weight: the length is 97.8 cm, the width is 68 cm, and the height is 31.6 cm. Weight: 248 kilogramsinput:
output:Robot material: Equipped with a minimum thickness of 5 mm of stainless steel AISI 304.input:
output:Chassis material: AISI 304 steel components and rubber flex belts with carbon fiber reinforcement.input:
output:Batteries: Two SAMSUNG 48V-47.5Ah batteries (total 95Ah), and one SAMSUNG 12.6V-21Ah battery that can be replaced without the use of tools.input:
output:Engines: Two DMKE 1000W BLDC enginesinput:
output:Remote control: Radio HBC (Germany)

2.4GHz with a range of 100m or 433MHz with a range of 300minput:
output:Operating time: Exceeds three hours when batteries are fully charged.input:
output:Lighting: Two LED lights, which can be operated with a remote control.input:
output:Equipment velocity: Continuous acceleration from zero to seven kilometers per hour. (It is feasible to establish alternative speeds)
