Remote-Controlled Ophthalmic Chart Projector

The transition from a conventional electric bulb to an LED light source has resulted in a reduction in both electrical power consumption and CO2 emissions.input:
output:Virtually never is it necessary to replace the LED.input:
output:A broader selection of test charts is now accessible with the introduction of Log MAR charts.

Vertical, horizontal, and single-character masks are accessible.

Alternatively, it may be entirely open.

The visual acuity values are displayed in the test frame.

Changes to charts may be implemented through either the chart buttons or the arrow buttons on the controller.

Chart units are dust-tight and sealed, and they can be interchanged with other units.

The main unit’s angle can be adjusted vertically and horizontally (tilting up and down, and swinging left and right) using the friction method.

The buttons on the controller are positioned in an ergonomic alignment.input:
output:Detailsinput:
output:Distance of projection: 2.9 to 6.1 meters

The projection size is 240 mm in width and 216 mm in height. Ø240mm (when utilized at a distance of 5 meters)

The rate at which the chart disk rotates Per frame, the time is 0.1 seconds, and the duration is within 0.7 seconds. The highest possible value

Mask disk rotation velocity 0.1 seconds per frame

The program offered two types, each with 31 steps.The primary bulb operates on LED technology.

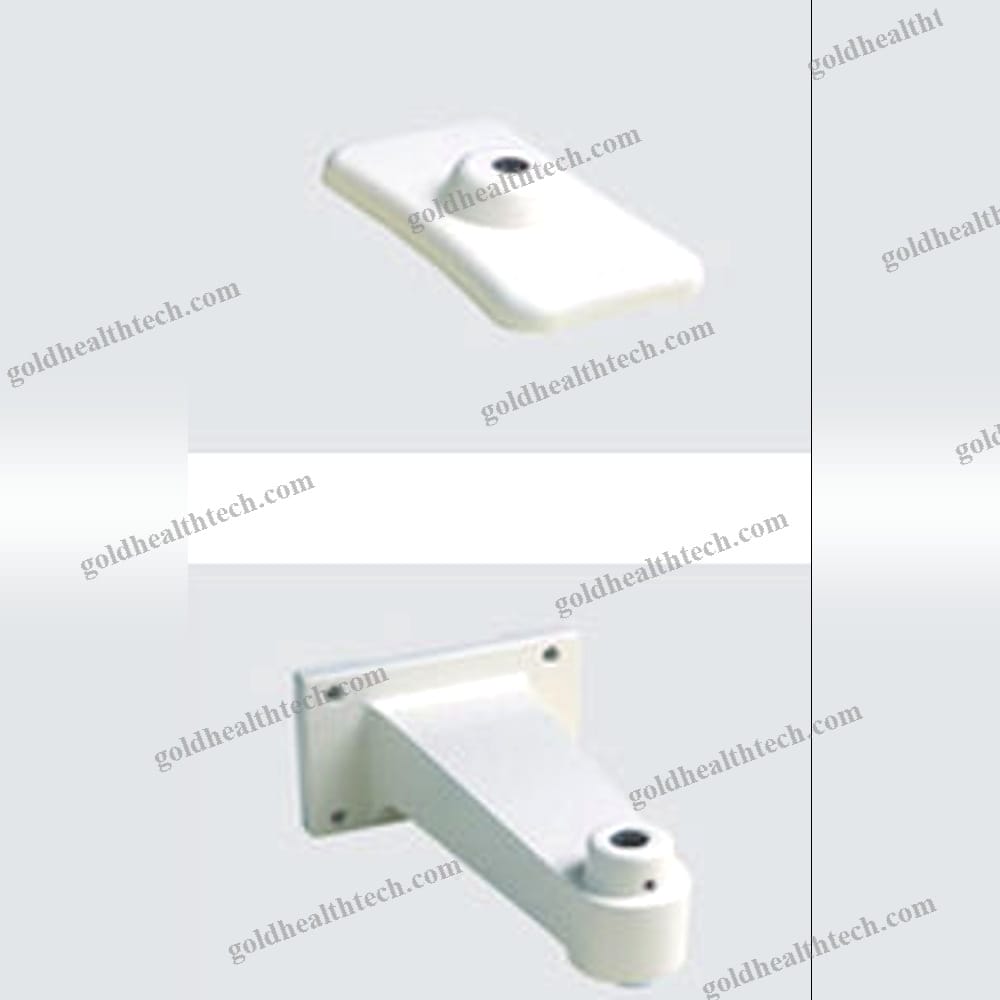

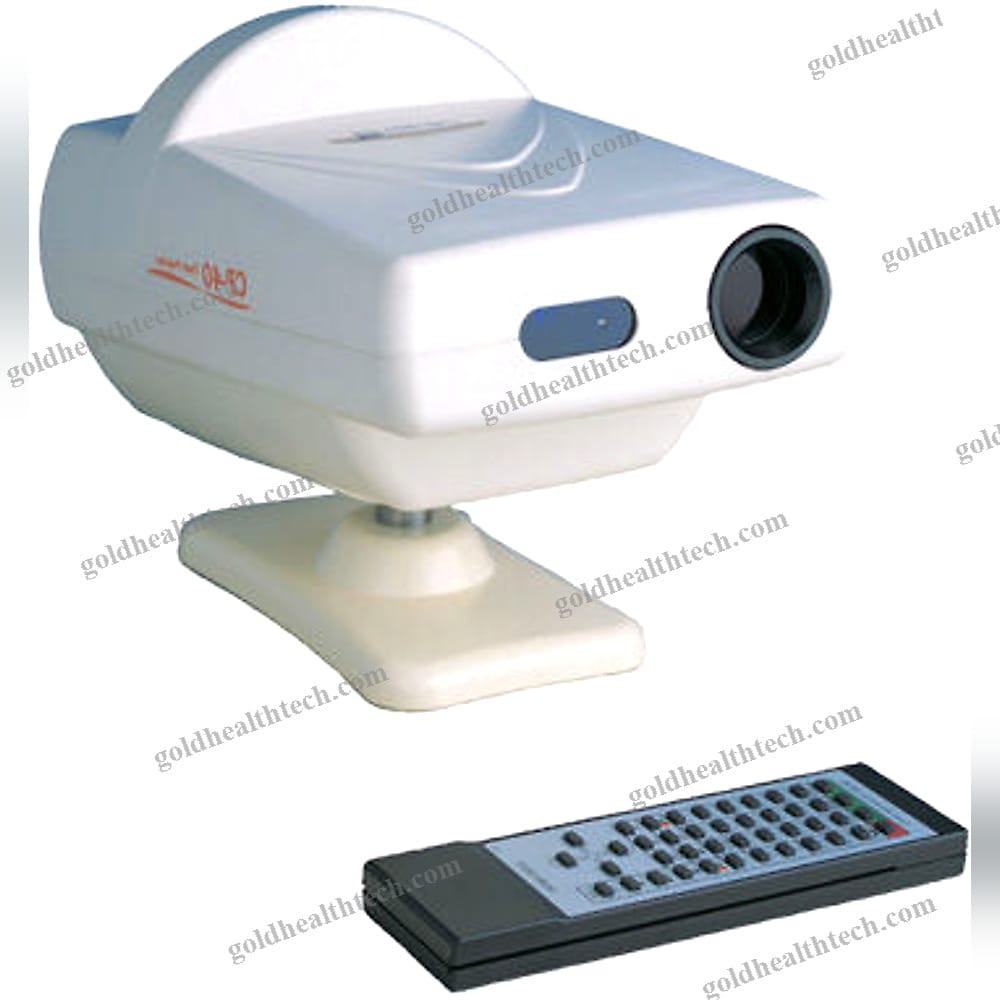

Power Conservation Power off automatically after 10 minutes of use.Control an infrared wireless remote control.AC100V-AC240V 50/60Hz power sourceMounts are accessible. Wall type, Table typeFunction of tilting Tilts to the left and right and up and down.Weight: 4.1 kilograms
