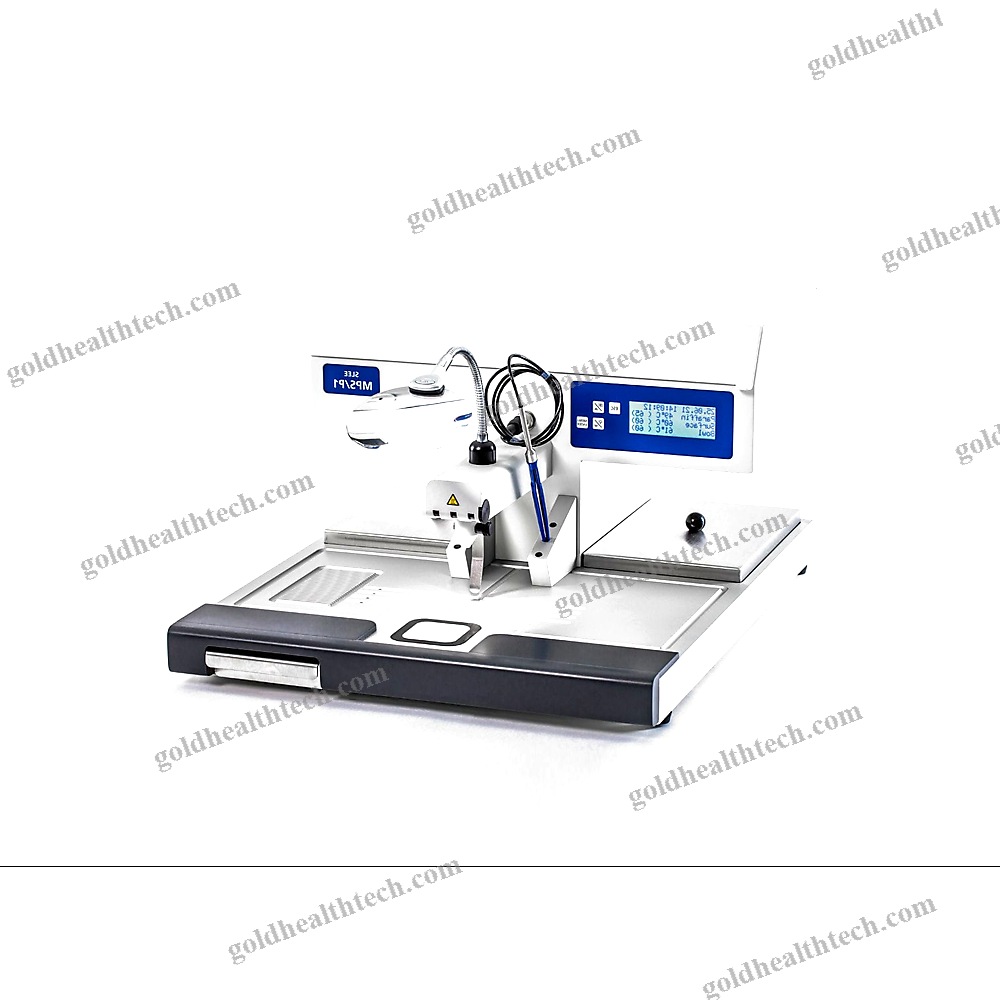

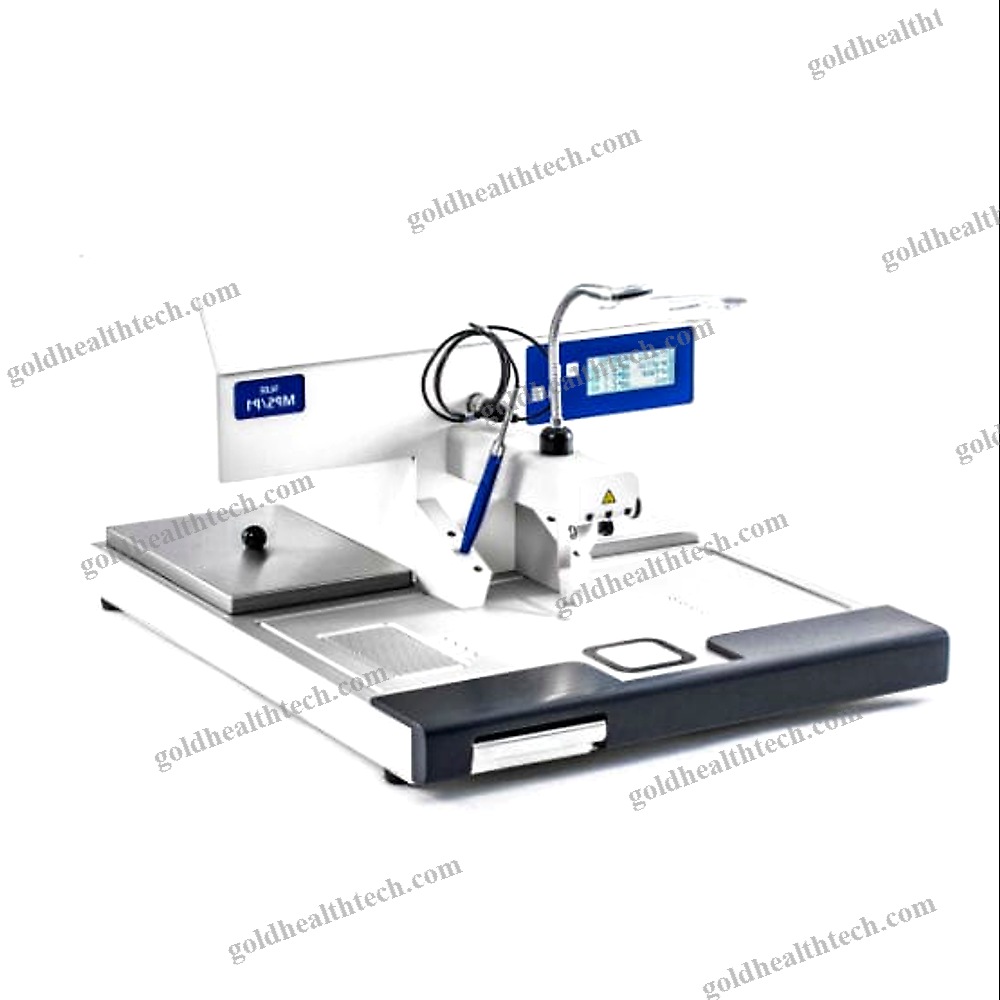

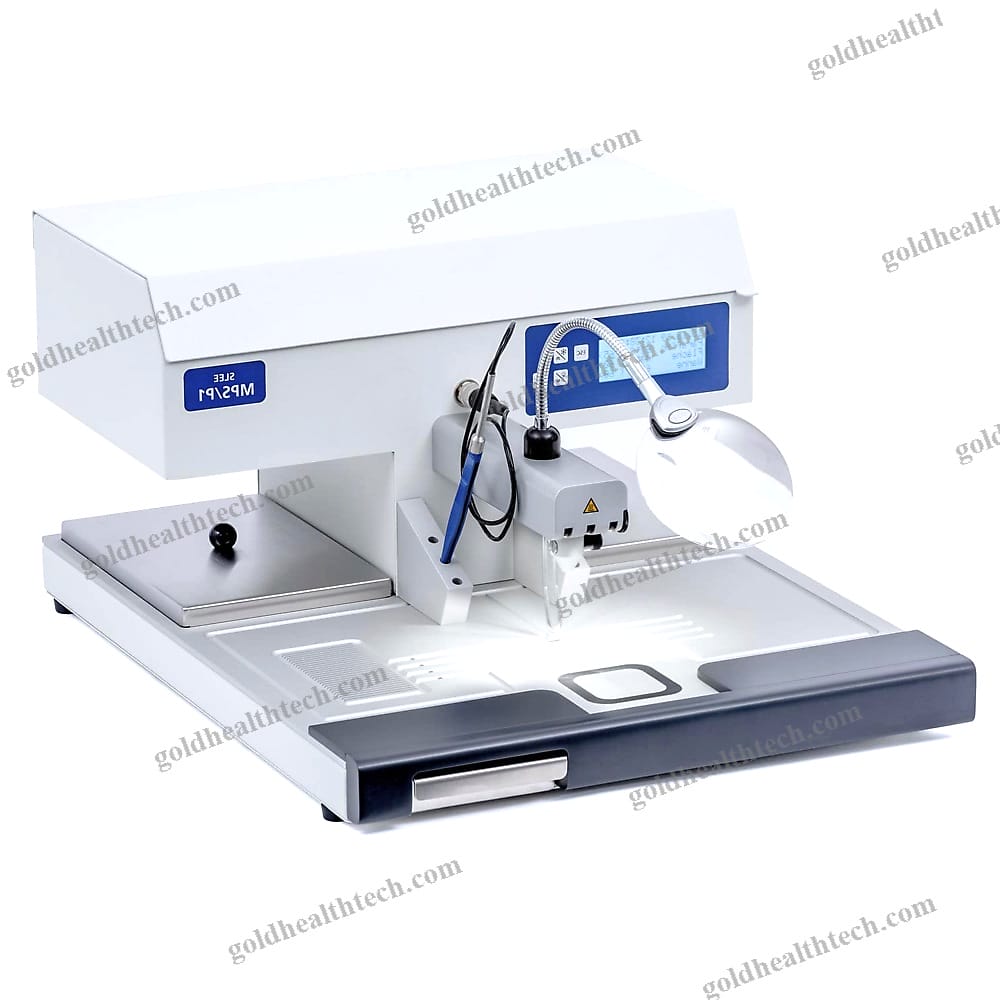

Paraffin Embedding System

The MPS P I is a comprehensive paraffin dispensing unit that is designed to save space. It comprises a heated working area, a cooling spot, and a 3.8 liter paraffin container.input:
output:The adjustable LED light illuminates the ergonomically elevated heated working area, enabling the comfortable processing of specimens. The device’s functions are managed by an intuitive control panel that includes the ability to program working hours. A pre-warming capacity of 120 cassettes and 250 embedding molds is achieved through the use of two heated trays.input:
output:Emphasizes

Paraffin dispensing is facilitated by a manual lever and foot switch.Ample cooling space

Magnifier that is integrated and adjustable

Armrest for optimal ergonomics during work

Paraffin collection tray that is both heated and spaciousParaffin container with a capacity of 3.8 litersOperating times that can be programmed

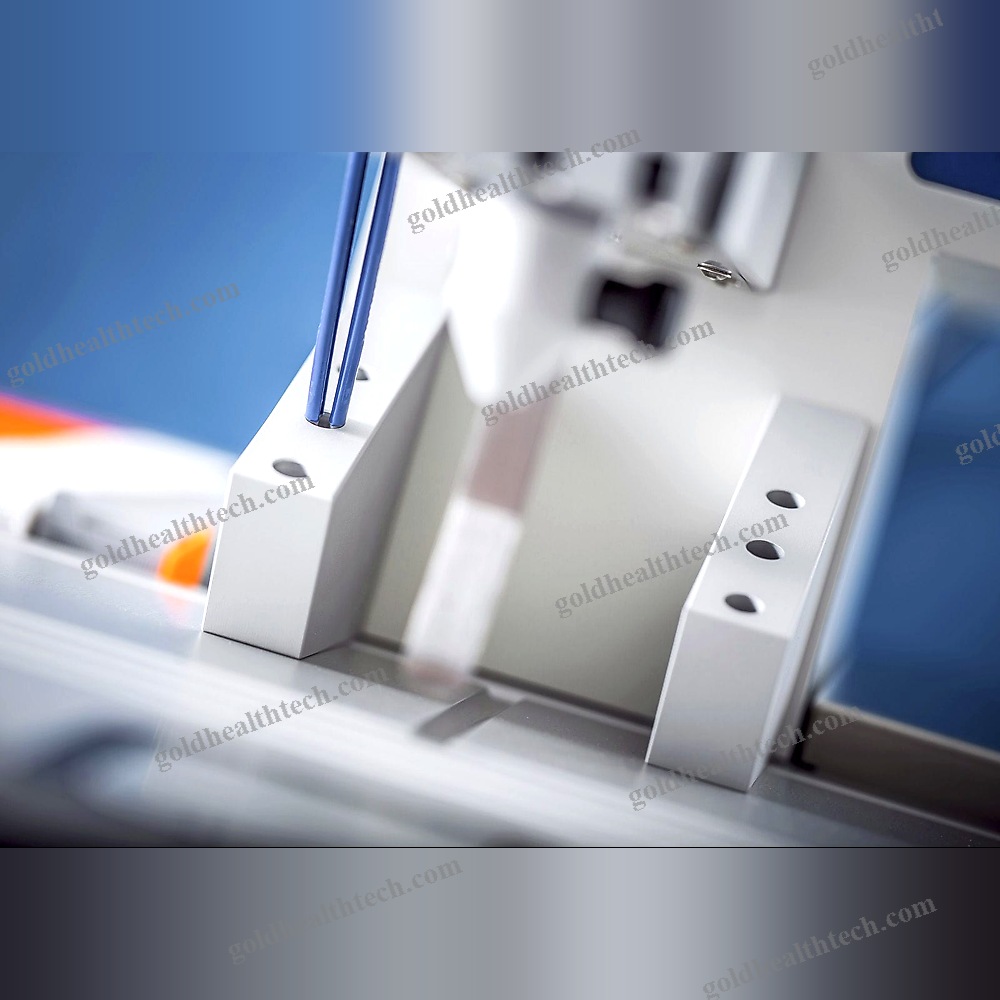

Magnetic forceps holders that are effortlessly adjustable

Adjustable LED illumination

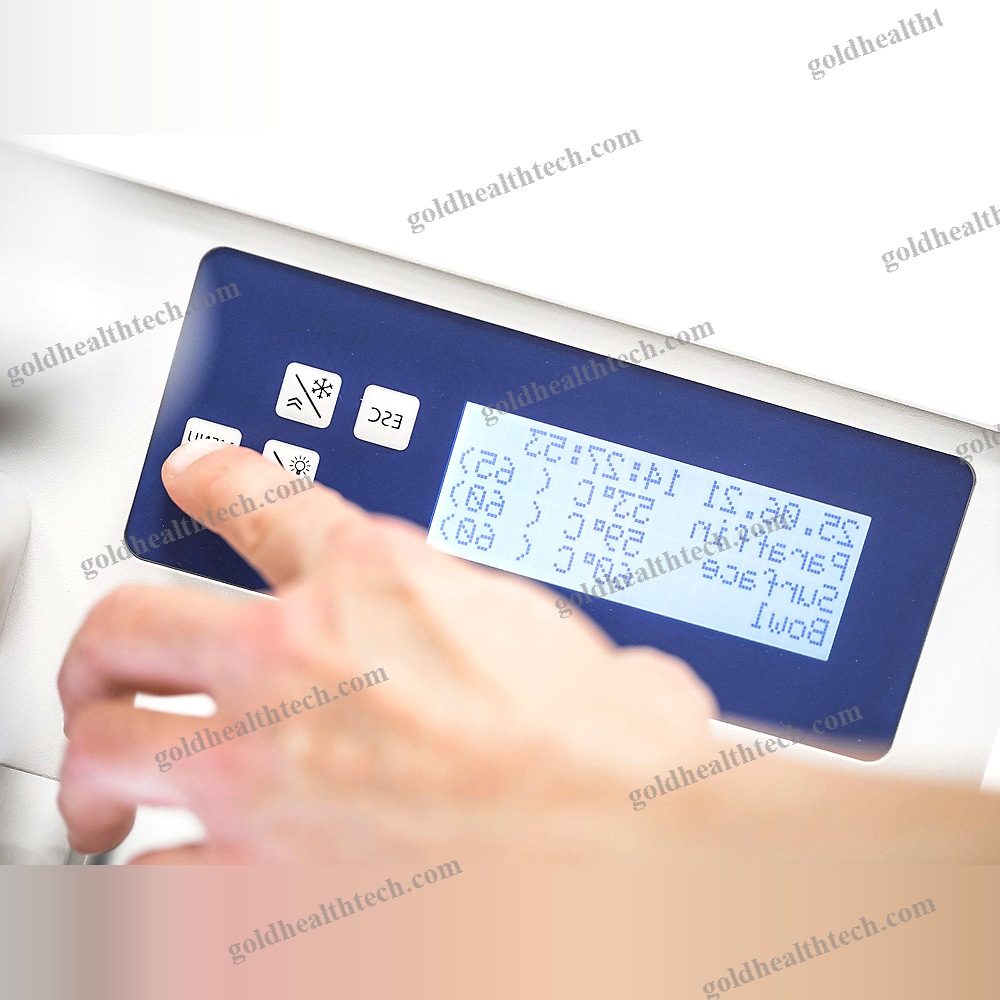

Control panel that is intuitive

Wax trimmer with integrated heating: Efficiently eliminates excess paraffin from any embedding tissue cassette; The paraffin is effortlessly melted and drained into the removable tray located beneath. Consequently, physical damages (e.g., those caused by traditional trimming tools like a knife or razor) are prevented. The trimmer area’s large scale design allows for the simultaneous paraffin trimming of multiple blocks.Two pre-warmed areas are available to accommodate up to 120 cassettes and 250 embedding molds.Standard components Large selection of electrically heated forceps (optional)Pre-warming and dispensing module. Foot switch for paraffin dispenser.Magnifier, adjustable

Paraffin collection trayBlack cleaning spatula Forceps holder

Forceps (1 blunt, 1 pointed)

Base molds measuring 7 x 7 x 7 mm (stainless steel, 12 pieces)12 stainless steel base molds, 24 x 24 x 7 mm.Main cable

Manual
