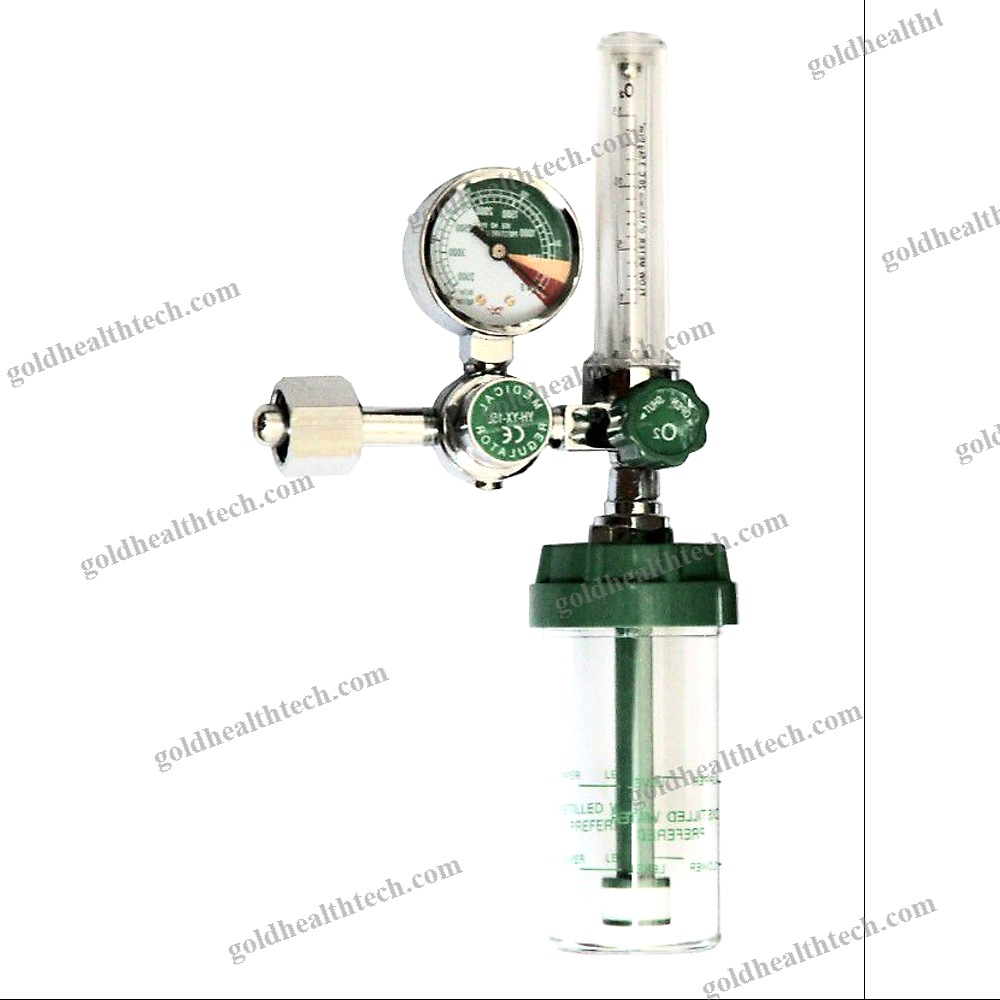

Oxygen Flowmeter

1. Completely pressure and leak-tested.input:
output:2. Available in three configurations: wall-mounted with a box, console-mounted on the head of the bed, and hose barb.input:

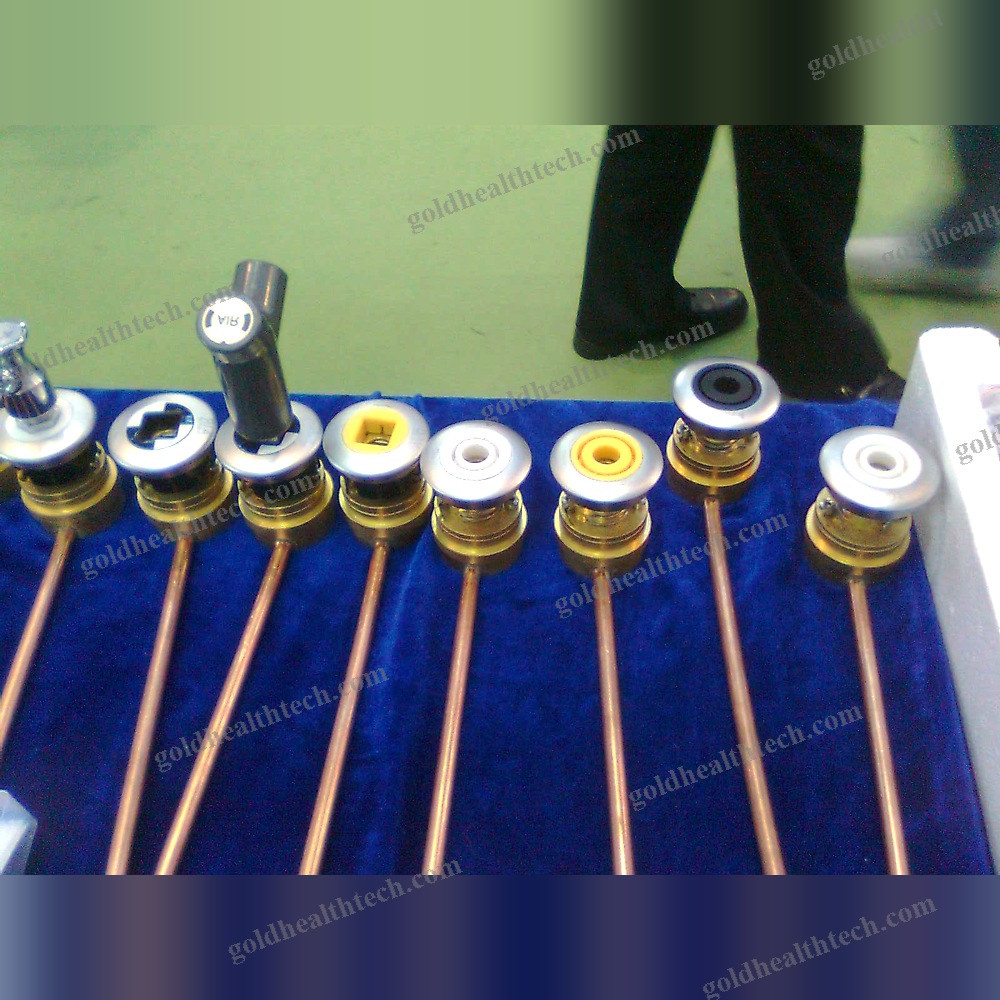

output:3. A common universal rough-in is required for all outlets.input:

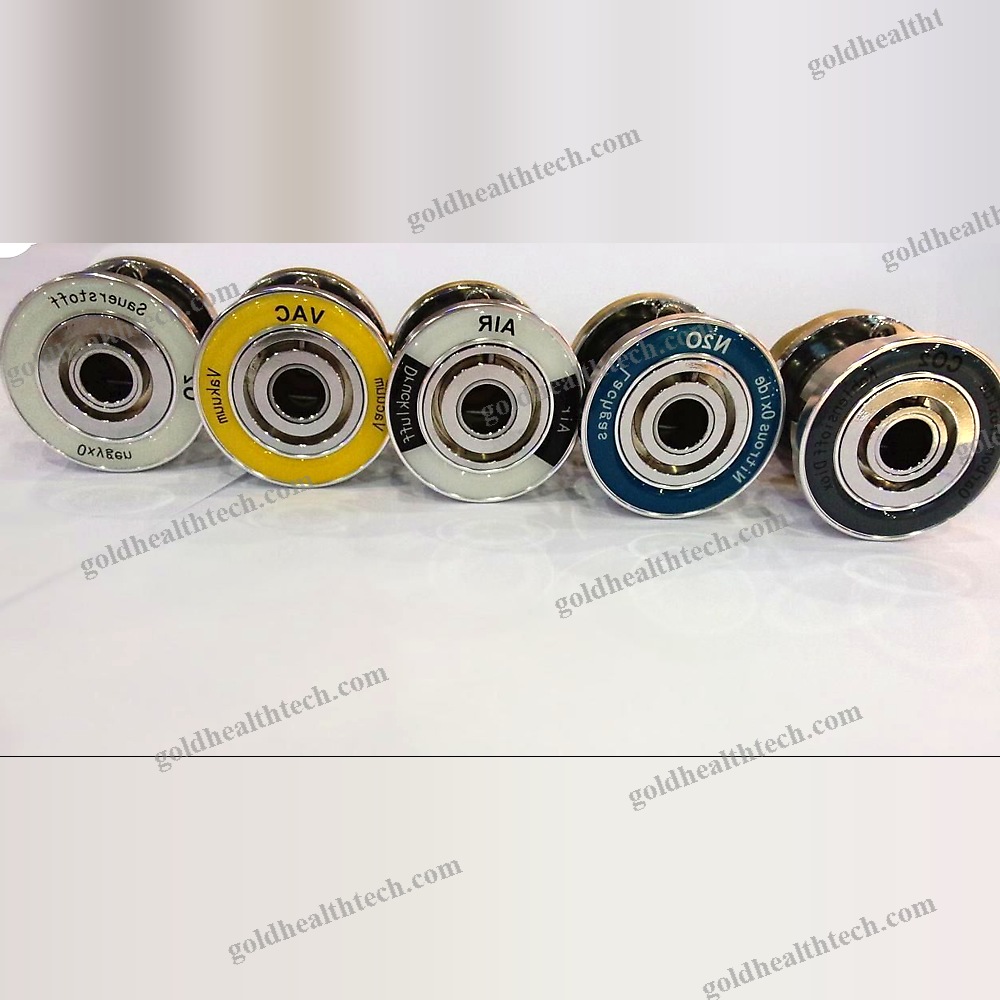

output:4. The NFPA full-color standard facilitates the identification of gases.input:

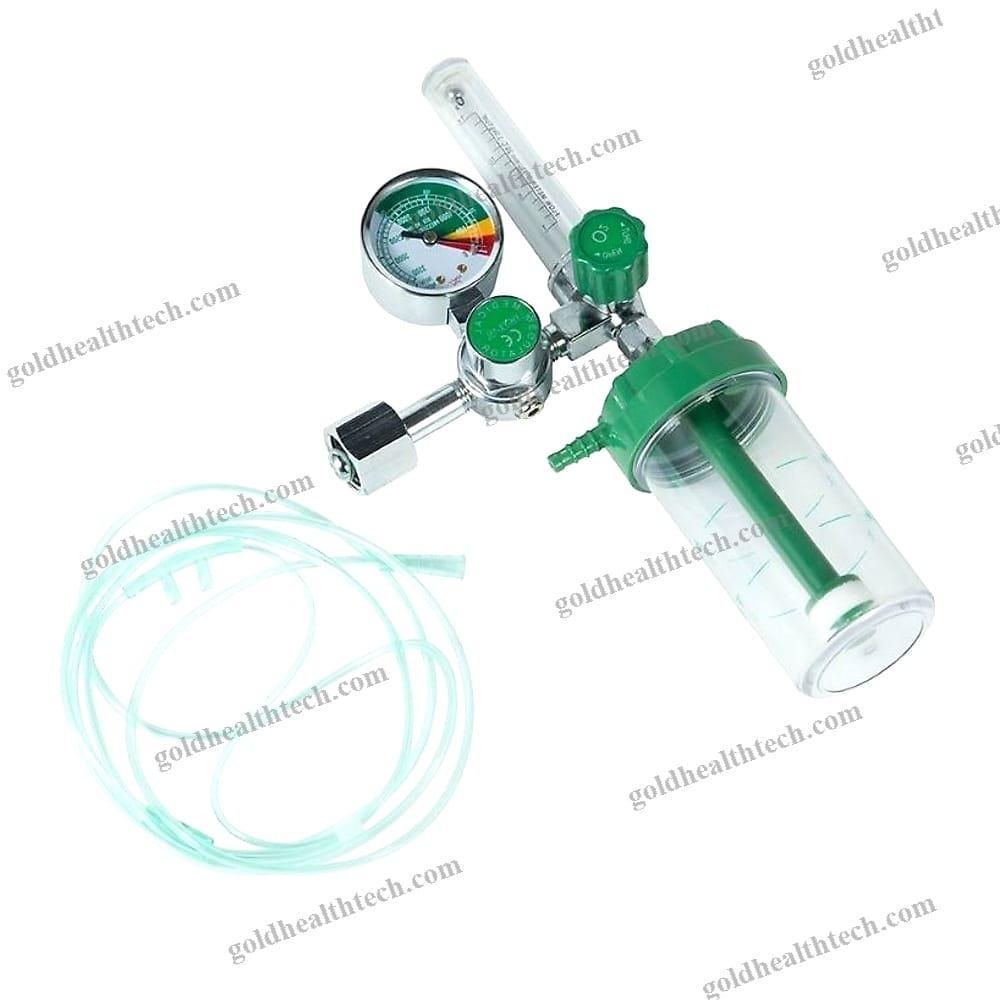

output:Oxygen flowmeter with humidifier configuration: single flowmeterTwin: a single back bar that is mounted with two flowmeters.input:
output:
Gas inlet types: 1) gas-specific inlet probe that complies with BS 56822) 1/8 NPT female-threadded inlet3) Additional country-specific direct and remote-fitting configurations are available; please contact the office.input:
output:- Gas outlet types: 1) female thread on the body; utilize BMI ‘universal’ tubing nippleinput:
output:2) The body is equipped with a 9/16 UNFmale thread that is intended for use with a tubing nipple (oxygen).Advantage – The joint is smooth and high-accuracy, and it is possible to select from a variety of problems. Additionally, the type of problem can be selected.15Mpa is the input pressure.input:
output:Oxygen flow rate — 1-10 L/min 1-15 L/minRange of pressure reduction: 2.0-3.0 MPaRelieving valve pressure range: 3.5±0.5 mpaScrew thread for output connection: 8mmScrew thread for input connection: G5/8-14-RH, CGA540-RH, and G3/4-14-RHinput:
output:Output pressure: 0.2-0.3 MPainput:
output:Flow rate – 1-10L/min, 1-15L/min;The valve material is brass. The humidifier has a capacity of 170 ml.PC bottle material: polyvinyl chloridePiston-type structureDelivery Details: 15 days — oxygen flow meter with humidifierDimensions: 20 pieces per carton (color box) or alternative.G.W./N.W. – 20/19 kgPacking – Each set is delivered in a plastic bag and then placed in an inner box. There are 20 sets per carton.input:
output:Maintenance inspections: three-monthly leak-checksan annual inspectioninput:
output:Store/operate within a temperature range of 5 to 25 degrees Celsius.provide protection for exposed o-rings from light.Oxygen flow meter with humidifier: 2-year quality guarantee
