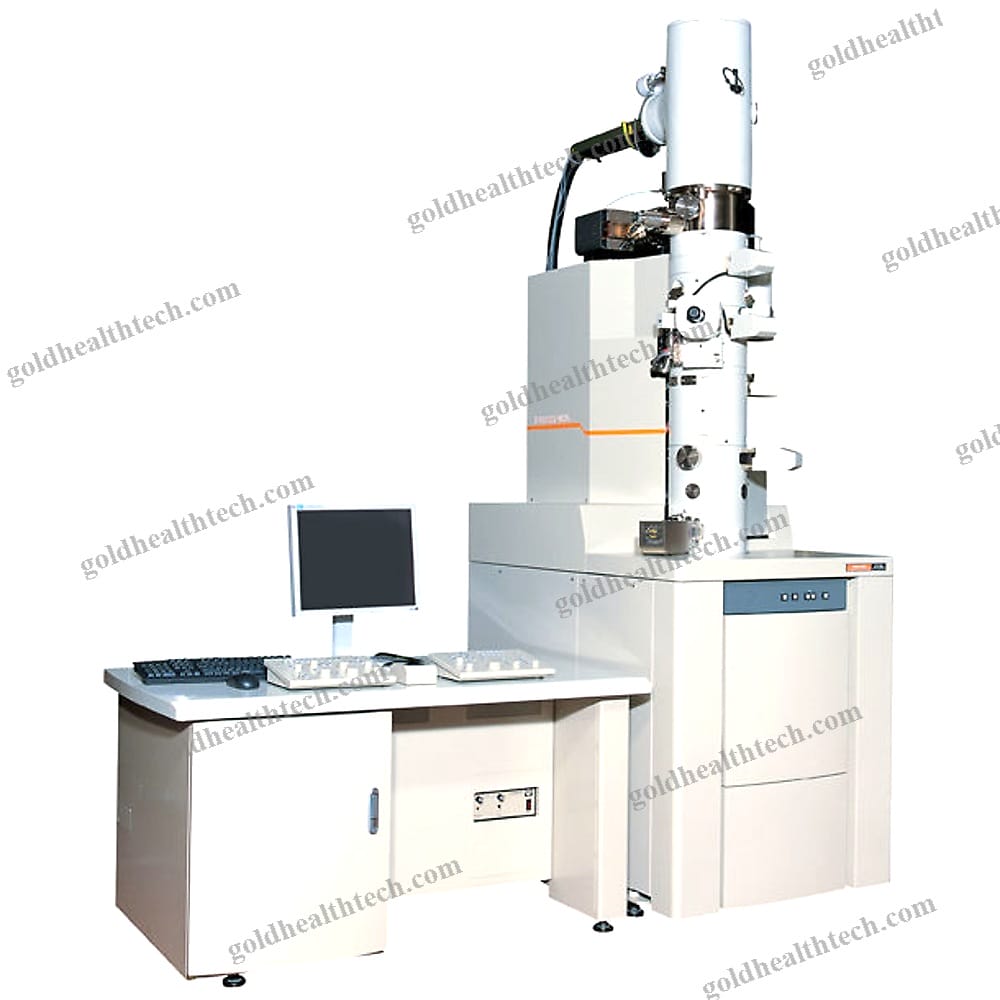

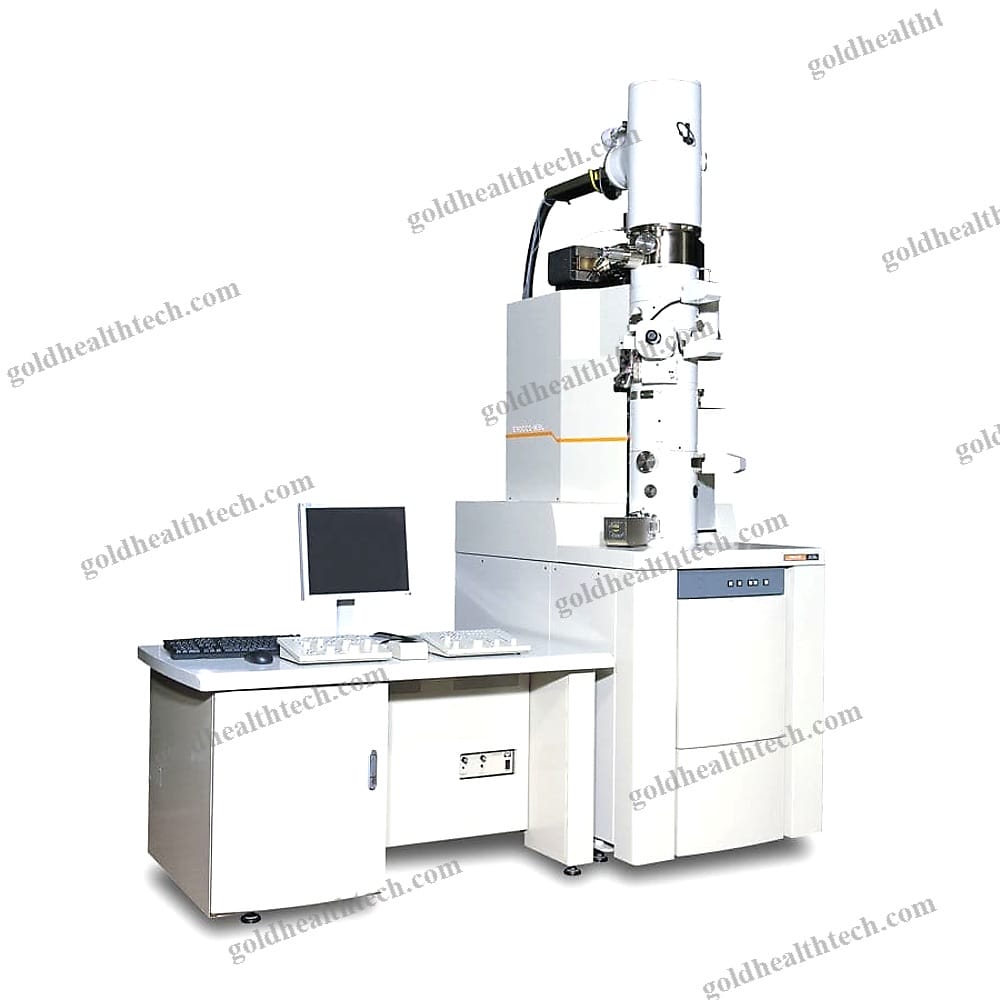

The JEM-2200FS, a cutting-edge analytical electron microscope, is equipped with a 200kV field emission gun (FEG) and an in-column energy filter (Omega filter) that enables a zero-loss image. This eliminates inelastic electrons, resulting in clear images with high contrast. The chemical state or elemental information of a sample is provided by energy-filtered images that are formed with electrons at low loss or core loss energy. Additionally, spectroscopy is accessible for the chemical and elemental analysis of specimens.

Omega filter (in-column energy filter)

The in-column energy filter allows for the acquisition of electron energy loss spectra and energy-filtered images. The filtered images are distortion-free due to the filter’s optimal design.

System of controlinput:
output:
Fully PC-controlled are the JEM-2200FS’s primary components, including the evacuation system, goniometer stage, and optical system. This system consistently generates data of exceptional quality.input:
output:imaging systeminput:
output:Rotation-free energy-filtered TEM images and diffraction patterns are achieved over a broad spectrum of magnifications and camera lengths by a novel imaging system that comprises two-stage projector lenses and four-stage intermediate lenses.input:
output:
Piezoelectric goniometerinput:
output:A novel goniometer stage that integrates a piezo device provides a smooth operation for the purpose of searching fields of view at the atomic level.input:
output:Integration with other instrumentsinput:
output:The microscope can be fully managed using a personal computer. The design concept allows for the integration of CCD cameras and an EDS system.Applicationinput:
output:Investigating Biological Samples in 3D Beyond Classic Electron Tomographyinput:
output:XEDS and EELS for Atomic-Resolution Elemental Mapping in Aberration-Corrected STEM
