| Options | Automatic, Manual |
| Type Of System | Optical Lens Blocker |
Product review
Catalog record
Inquiry support
Product summary

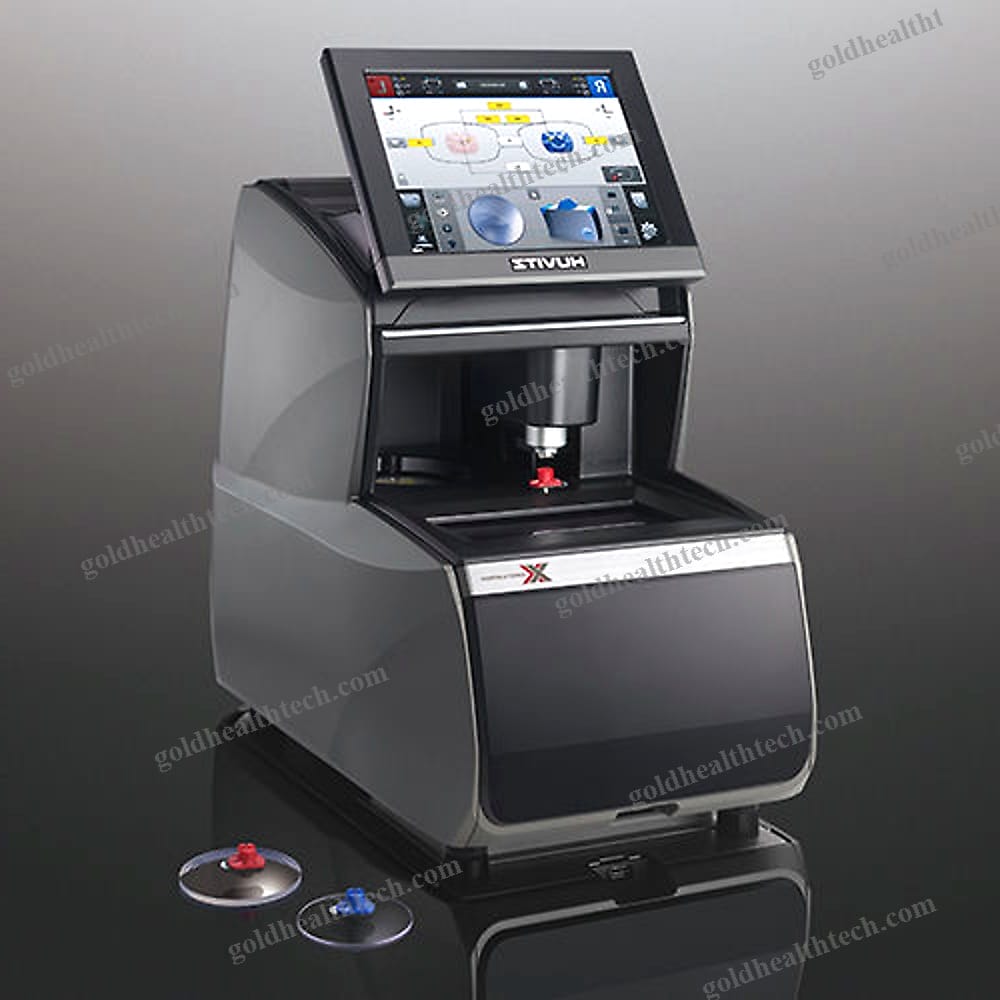

An Incredible Development of the Auto-Blocker
Convenient Blocking, Accurate Lens Recognitioninput:

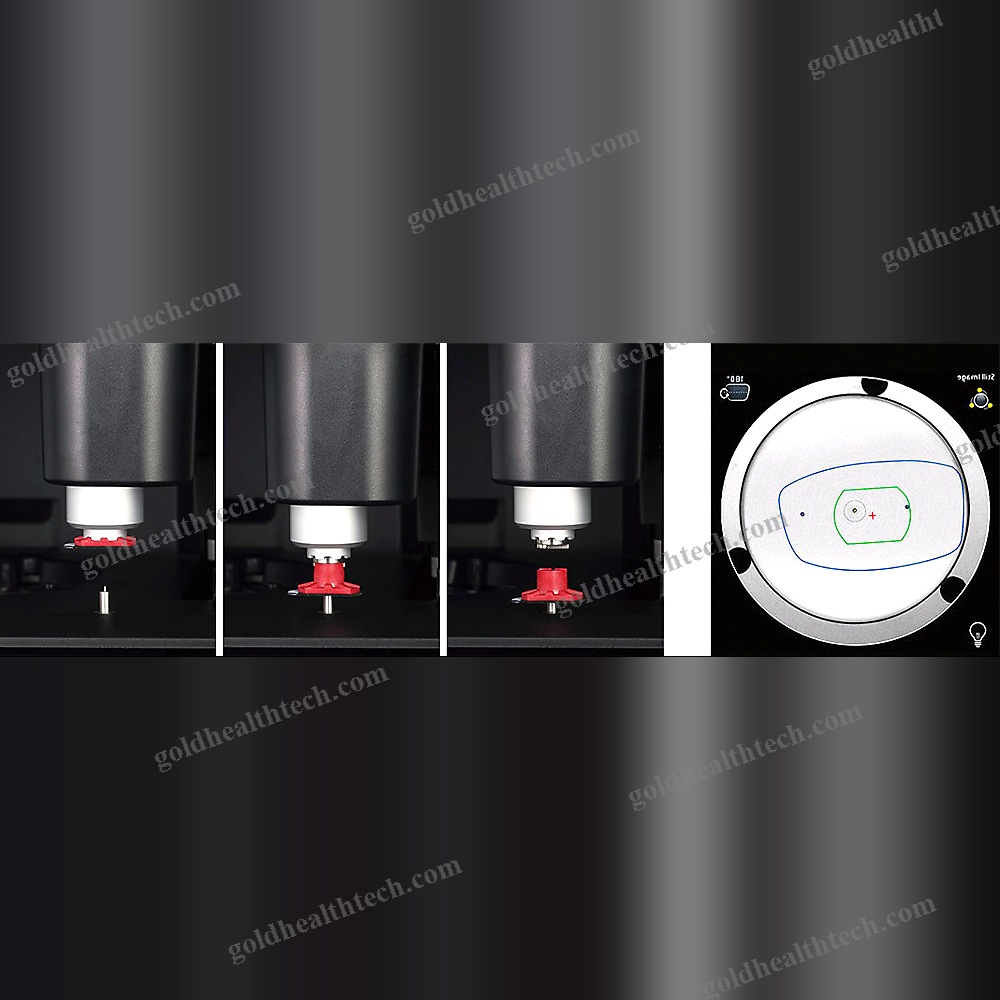

output:1. The block adaptor loading and lens gripping are performed with minimal operator effort.The automated lens gripping function is more precise, preventing any lens slippage. The Auto Block Adaptor Loading feature utilizes magnetic forces to facilitate lens blocking, irrespective of the direction in which it is positioned, with the simple press of a button.input:
output:2. Huvitz's optical technology is remarkable all over the world.input:
output:The Hartmann lensmeter and RetroReflection structure are combined to facilitate the precise identification of lenses and the faster and more accurate measurement of lensmeters.input:
output:3. Increased performance and fourfold increase in speedinput:
output:The digital scan speed, scan & cut, and lensmeter measurement have been enhanced by a factor of four or more.Specificationsinput:
output:Tracing Type Tracing TypeTracing Mode: Auto, Semi-Auto (Manual tip-positioning)Tracing Dimensions Pattern ø 16.0 ~ 84.0 mm, Frame ø 16.0 ~ 92.0 mmFrame Material: Ultem, Soft Plastic, Hard Plastic, MetalFrame Data Processing (FPD), Frame Curve, Circumference, 3D Angle, and Concave Shape (Demo lens)25 D ~ + 25 D measurementSph and Cyl Measurement - 6 D ~ +6 D (Cylinder included, minimum step 0.01 D)
Axis ± 1°, Blocking Tolerance - 0.5 ~ + 0.5 mmBlocking Method - Automatic blocking with mechanical arm Automatic loading block adaptor with magnetBlocking Pressure: 2.0 kgf
Convenient Blocking, Accurate Lens Recognitioninput:
output:1. The block adaptor loading and lens gripping are performed with minimal operator effort.The automated lens gripping function is more precise, preventing any lens slippage. The Auto Block Adaptor Loading feature utilizes magnetic forces to facilitate lens blocking, irrespective of the direction in which it is positioned, with the simple press of a button.input:
output:2. Huvitz's optical technology is remarkable all over the world.input:
output:The Hartmann lensmeter and RetroReflection structure are combined to facilitate the precise identification of lenses and the faster and more accurate measurement of lensmeters.input:
output:3. Increased performance and fourfold increase in speedinput:
output:The digital scan speed, scan & cut, and lensmeter measurement have been enhanced by a factor of four or more.Specificationsinput:
output:Tracing Type Tracing TypeTracing Mode: Auto, Semi-Auto (Manual tip-positioning)Tracing Dimensions Pattern ø 16.0 ~ 84.0 mm, Frame ø 16.0 ~ 92.0 mmFrame Material: Ultem, Soft Plastic, Hard Plastic, MetalFrame Data Processing (FPD), Frame Curve, Circumference, 3D Angle, and Concave Shape (Demo lens)25 D ~ + 25 D measurementSph and Cyl Measurement - 6 D ~ +6 D (Cylinder included, minimum step 0.01 D)
Axis ± 1°, Blocking Tolerance - 0.5 ~ + 0.5 mmBlocking Method - Automatic blocking with mechanical arm Automatic loading block adaptor with magnetBlocking Pressure: 2.0 kgf
