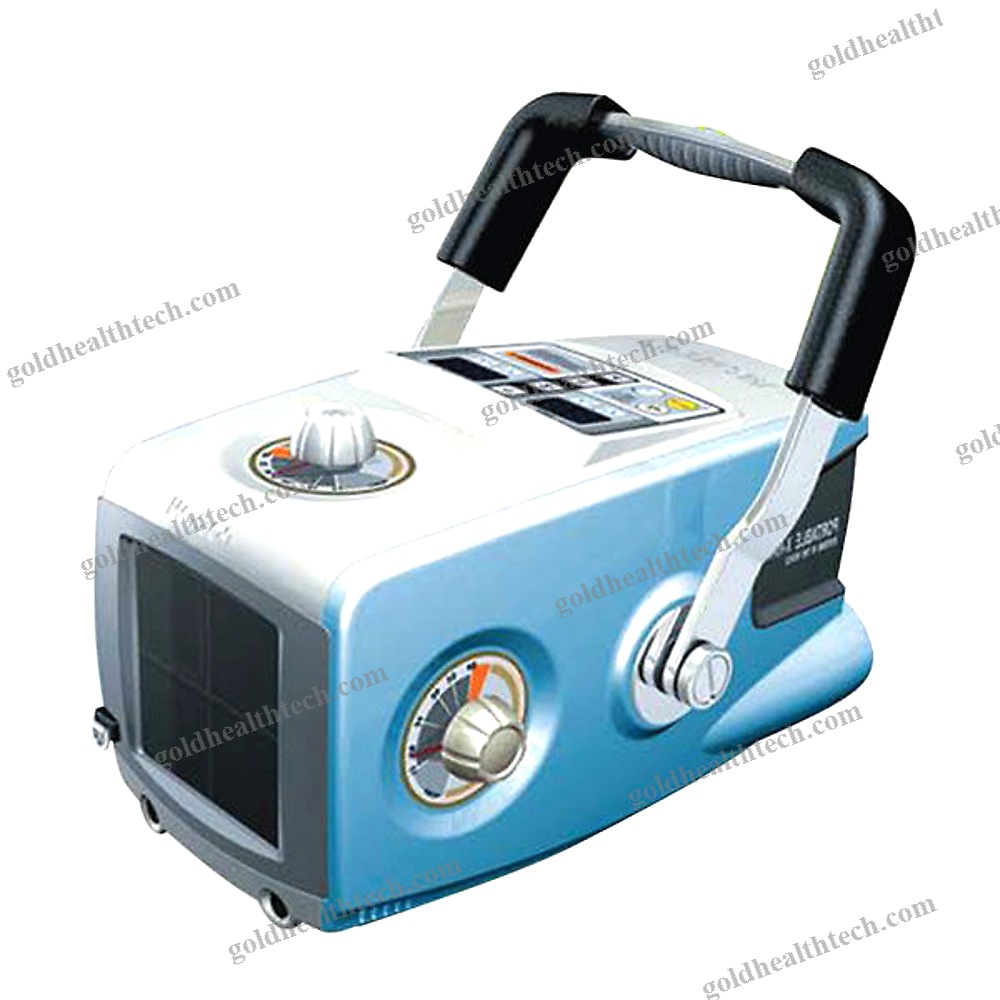

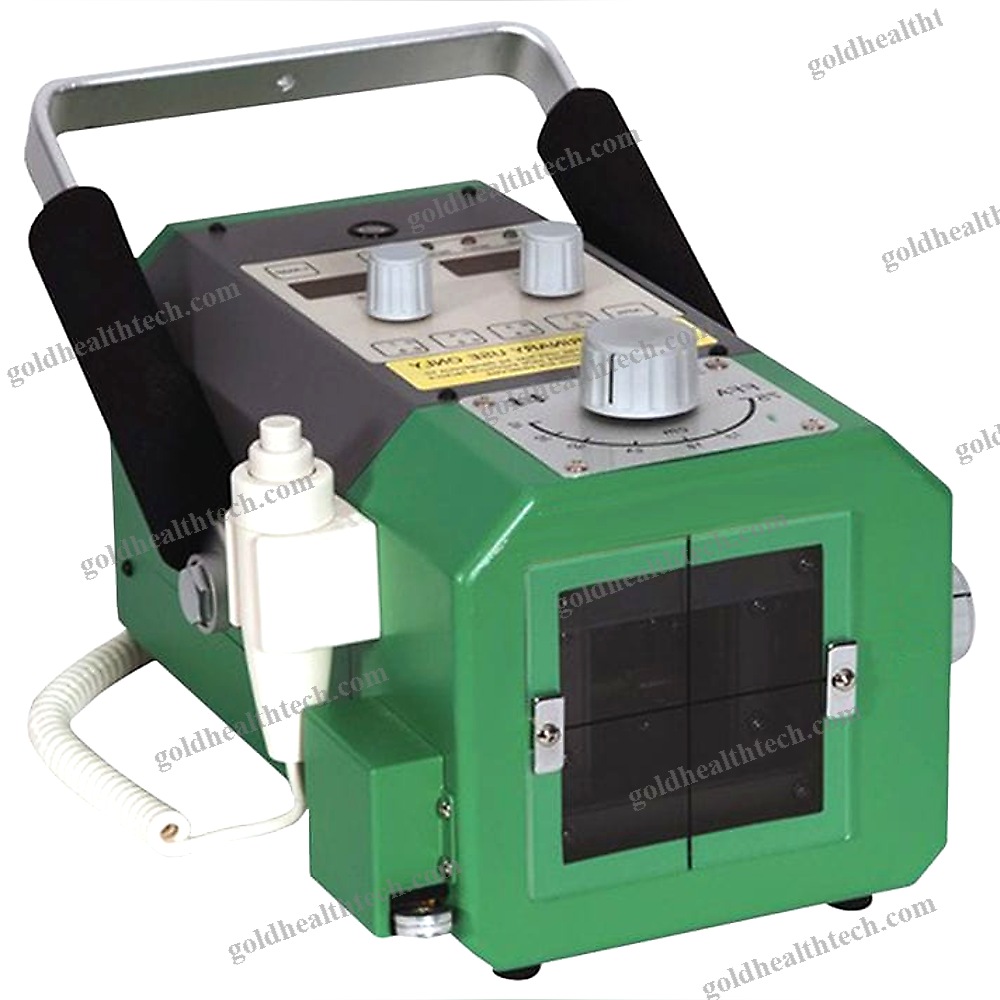

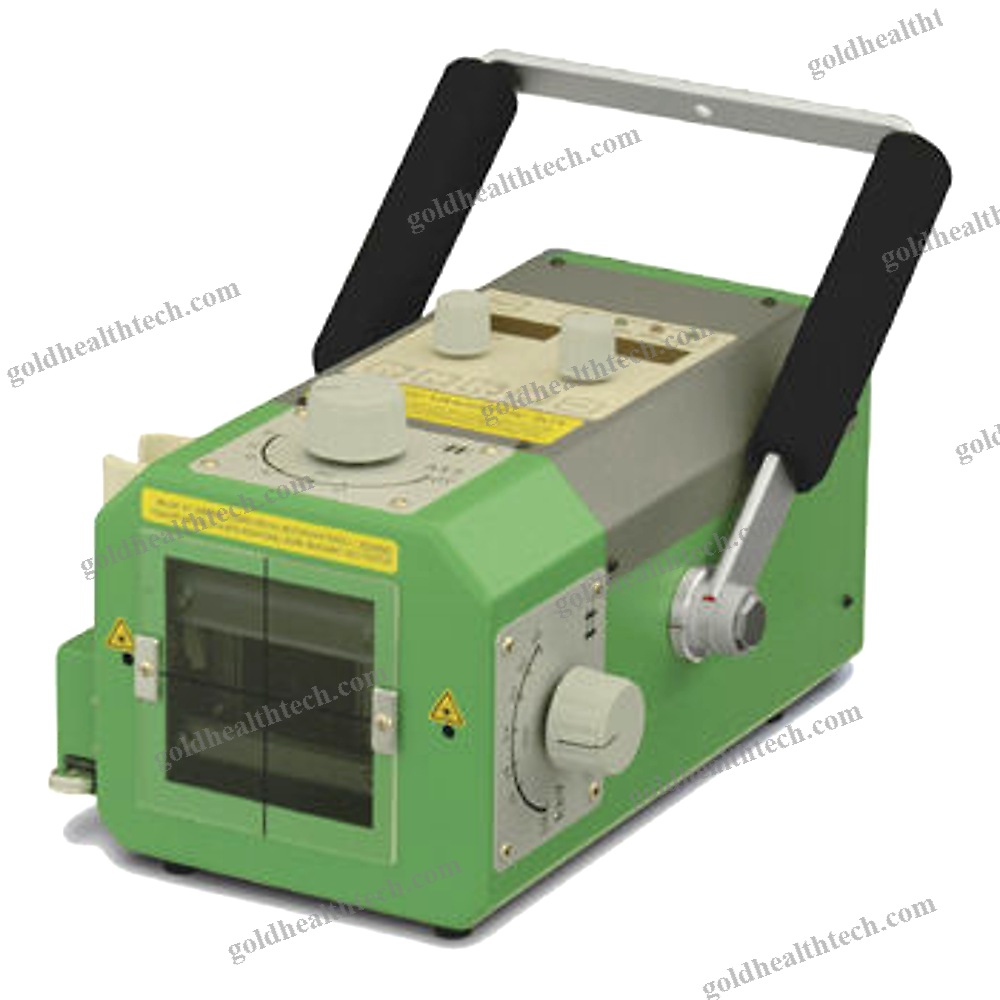

Multipurpose Radiography X-Ray Generator

The HELIOS-35 source is intended for X-ray applications and has an anode voltage adjustment range of up to 70kV. The device is distinguished by its compact size, high conversion efficiency, and an analogue digital interface that is compatible with RS-232 and Ethernet, which facilitates integration.input:
output:The X-ray tube is provided with exceptional anode voltage regulation and low crest noise by the advanced inverter-type control circuit. The filament power is regulated by the inverter, resulting in a high level of regulating power stability. This stability is a contributing factor to the X-ray flux intensity and the anodic current stability.

The reading and writing functions are linearized by the microcontroller, which is positioned on the electronic board and performs control functions with second-level feedbacks. It also regulates the temperature and ensures that the operating conditions are within the specified range. In the event of an exception, it generates the corresponding alarm signals.input:
output:In order to expedite the diagnostic process of any potential failure, the generator employs an event recording mechanism.Typical applications include:X-ray scanning… Food inspections.input:
output:Nondestructive testinginput:
output:OEM customizationinput:
output:Power Supplyinput:
output:Supply voltage: 220·240Vac, 10%, 50/60Hzinput:
output:Current: 1Arms at a maximum voltage of 110Vacinput:
output:Frequency of the power supply: 50/60 Hzinput:
output:Protection fuse: 1 A T-Vac 220Vinput:
output:1 mm2 conductor cable sectioninput:
output:Chemistry

Dimensions: 175 x 230 x 150 mmWeight: 12 kilograms
