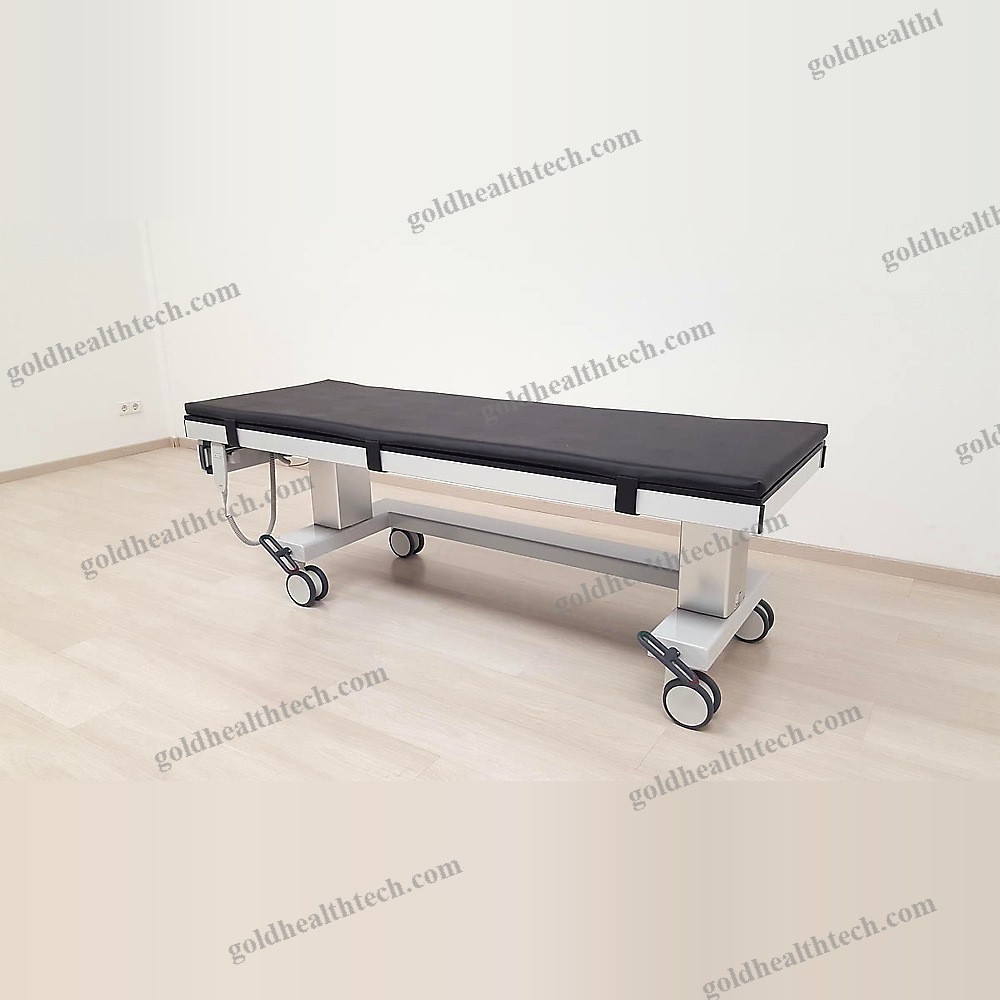

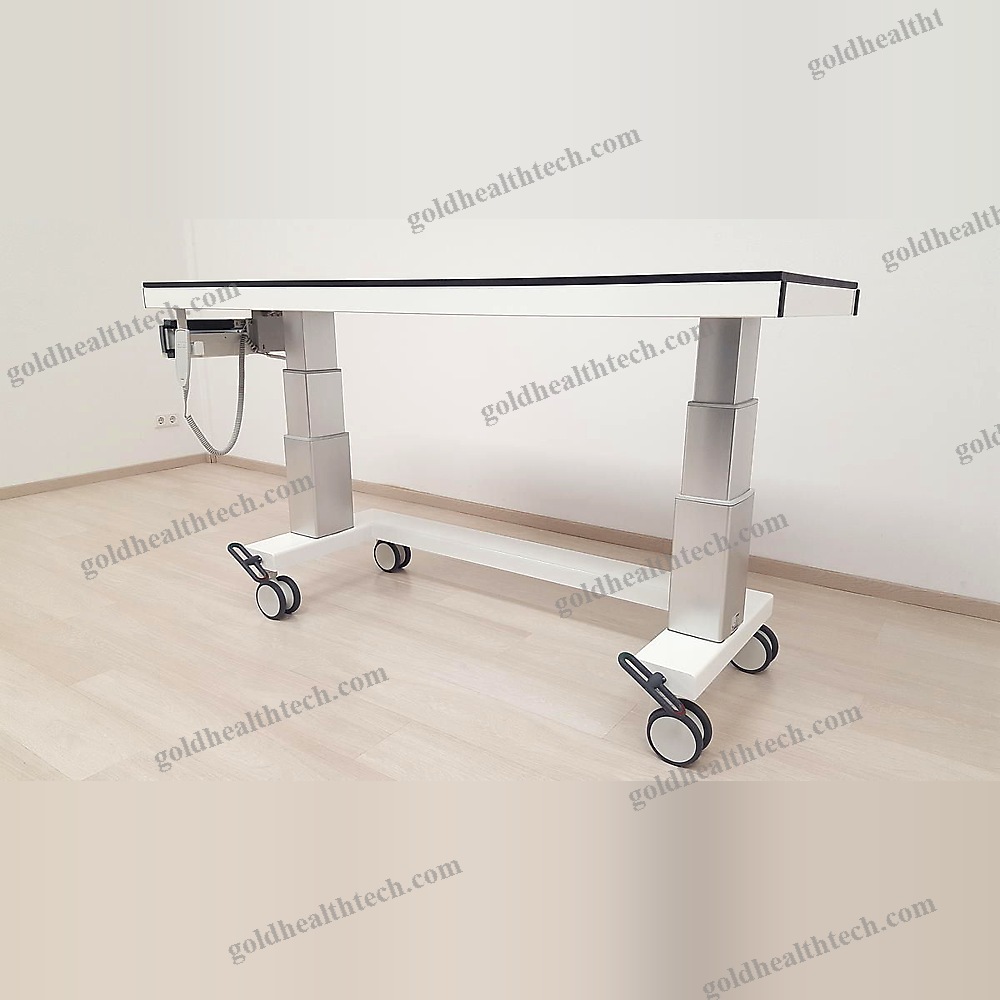

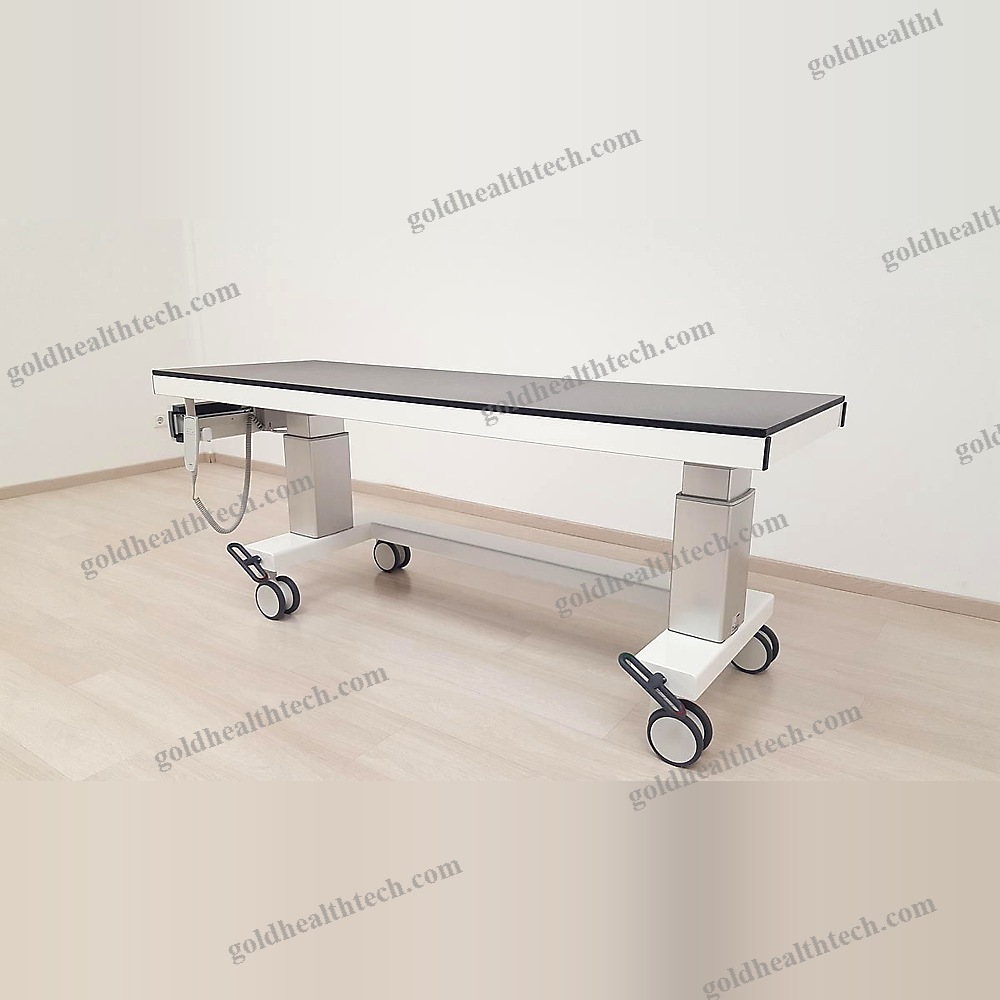

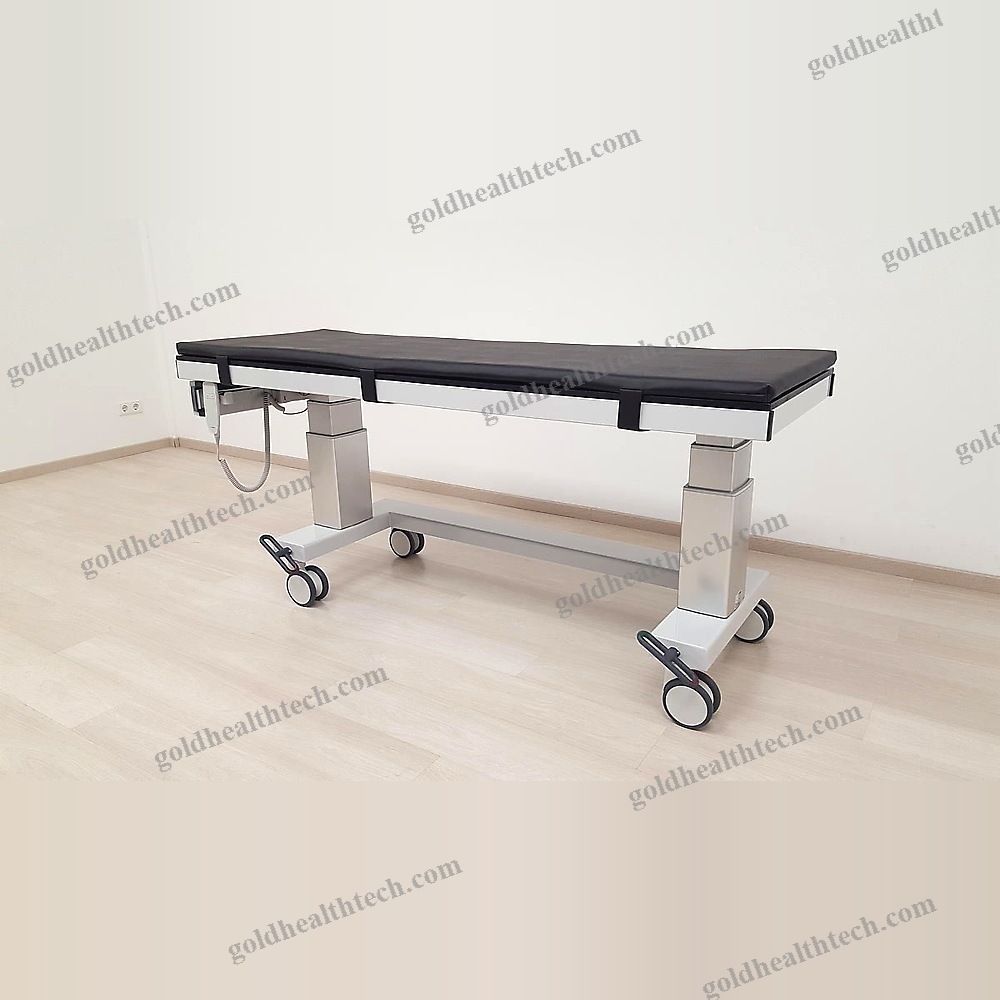

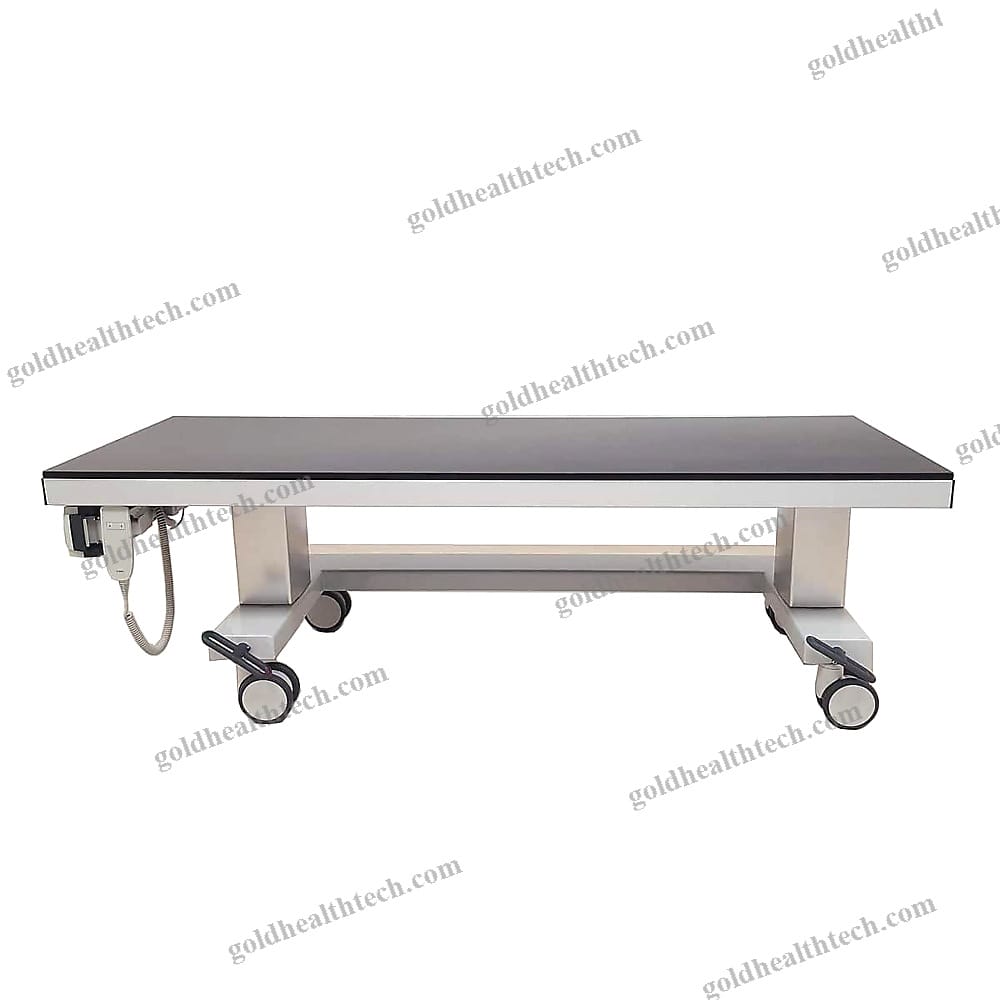

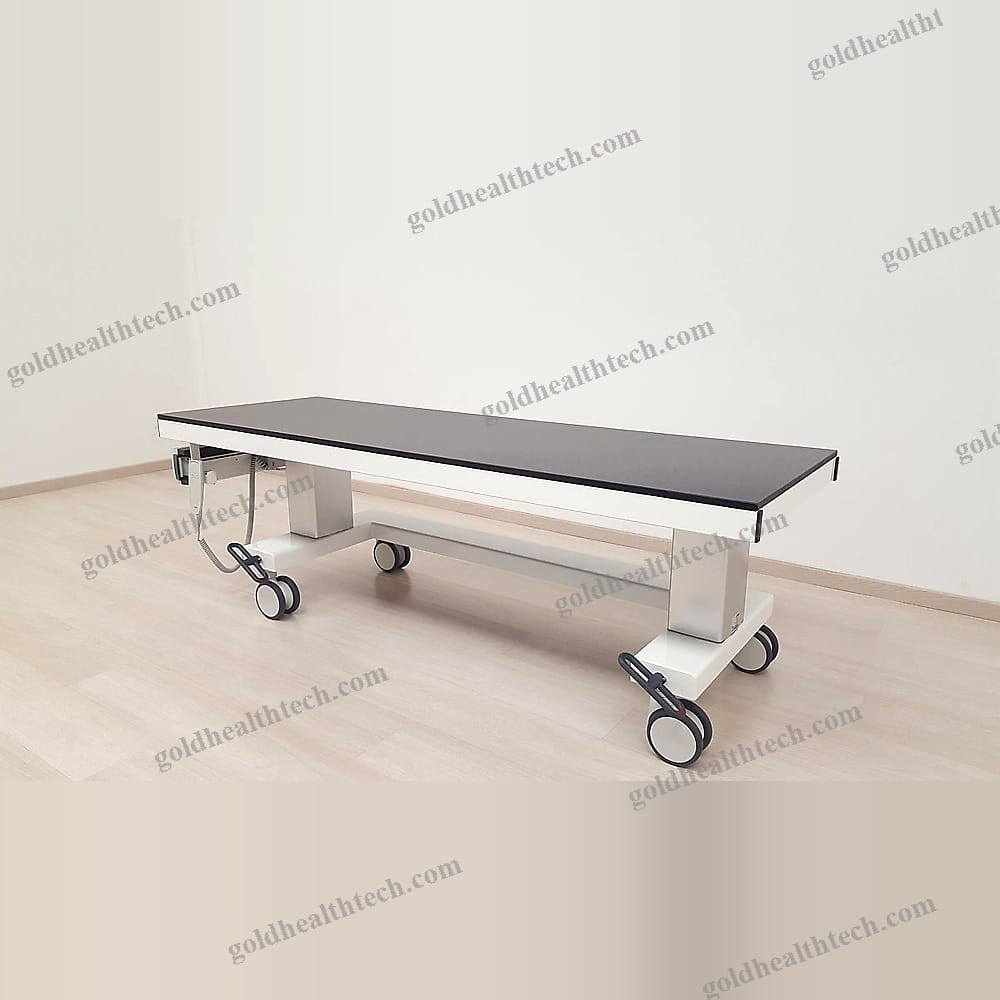

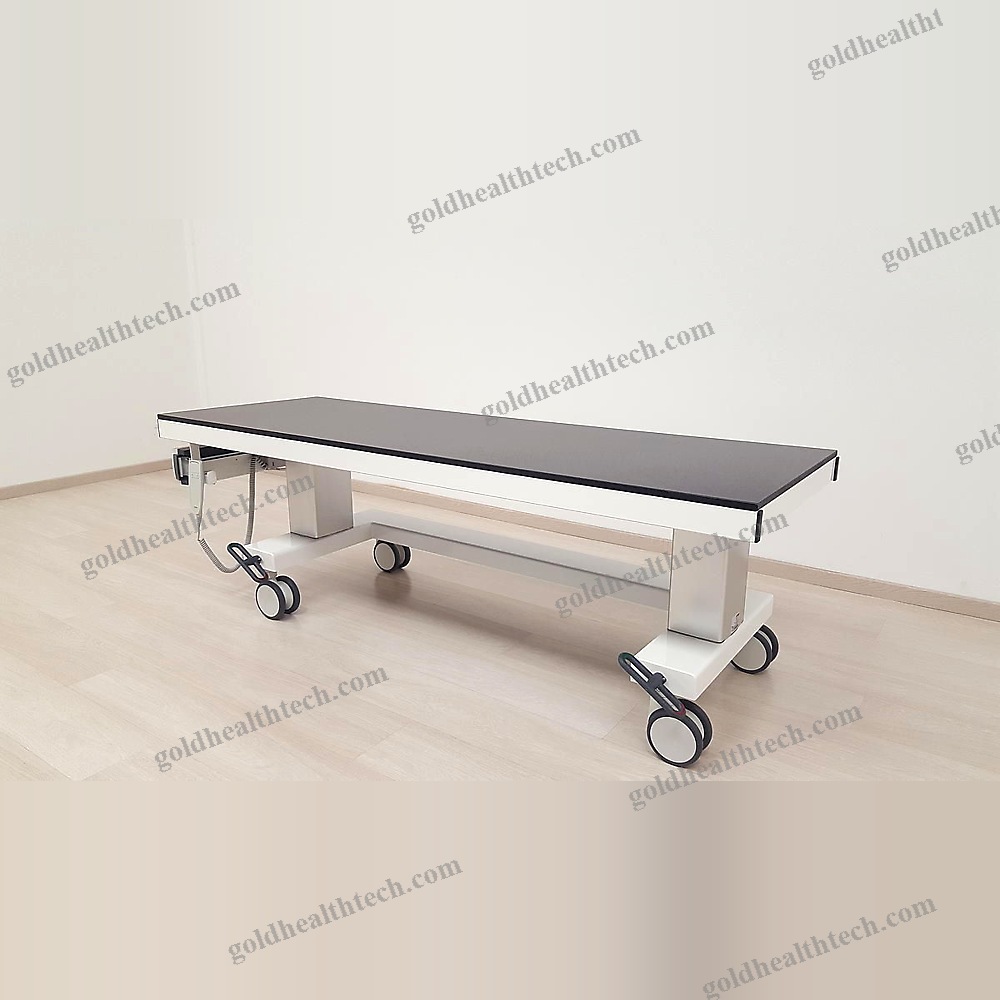

Mobile X-Ray Table

The power circuit must be permanently connected to the X-ray tables AGA-POWER-LIFT and AGA-POWER-DUO-LIFT in order to adjust their height and tilt. The AGA-AKKU-POWER-LIFT X-ray tables from AGA Sanitätsartikel are equipped with battery-controlled drives that facilitate height adjustment. A hand switch with two buttons is used to operate the height adjustment.Featuresinput:
output:The regenerated PE-1000 support plates (tabletop) are black and radiolucent, with a thickness of 15 mm for a table width of 650 mm and 25 mm for a table width of 800 mm.

The base frame is equipped with leveling feet as a standard feature to guarantee optimal stability.

A hand switch with two buttons (system with key lock and emergency stop) is used to regulate the height adjustment from 460 to 860 mm.

The area between the lifting columns is devoid of metal components (approximately 1,200 x 600 mm, L x W, for the 650 mm table width and 1,200 x 750 mm, L x W, for the 800 mm table width).

Please be advised that the headrest and the transition to the main surface of the X-ray table with a 2-piece tabletop are only partially radiolucent as a result of the hinges and the grid.

The position of the headrest may be on either the left or right side, and it can be adjusted in 13 locking steps up to +30°. The X-ray table will be delivered with a headrest on the right side if no side is specified during the order process.

The two telescopic lifting columns are constructed from anodized light metal and are operated by a hand switch that features two buttons and is powered by a battery. 230V, 50/60Hz, 4.0A, 160W, IPX6, v=16mm/s, 2 x 2,000N are the connection values per battery unit.input:
output:The standard configuration comprises the following:input:
output:An up/down hand switch with a spiral cable and two buttons.
