Medical Valve

2/2-way – Normally Closed (NC)3/2-way – Normally Closed (NC) and Normally Open (NO)Universal (UNI) – 3/2-way

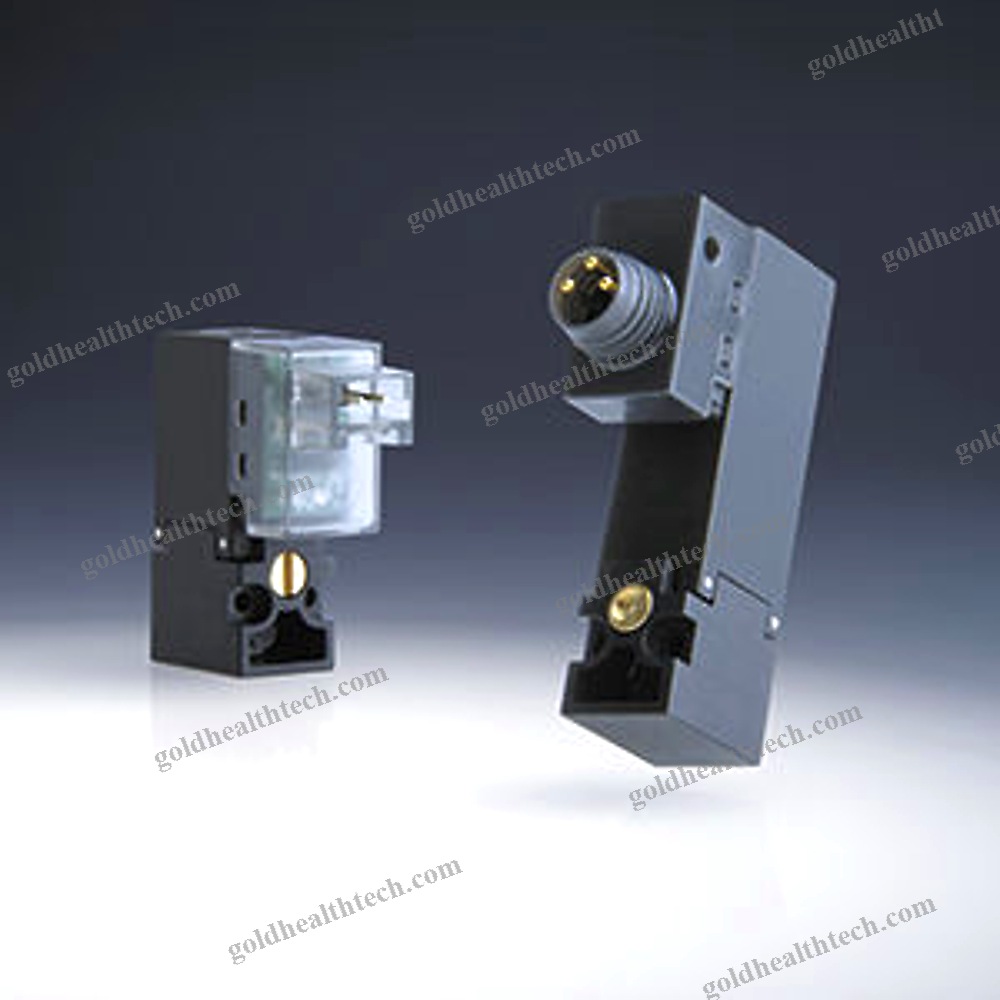

Series KL are solenoid valves that have been miniaturized to a mere 10 mm in width. The valve is available in a 2-way normally closed, 3-way normally closed, open, and universal version, and the body is designed to be mounted on both the manifold and the subbase. The pressure values that the valves can withstand were increased by employing a longer coil.input:
output:
TECHNICAL FEATURES -Function – 2/2 NC – 3/2 NC – 3/2 NO – 3/2 UNI

Operation – direct acting poppet type

Subbase pneumatic connections

Orifice diameter: 0.6 to 1.6 mmFlow coefficient kv (l/min) – 0.12… 0.50

Working pressure: 0-10 barOperating temperature: 0 to 50°CFluid – inert gas, filtered compressed air, unlubricated, according to ISO 8573-1:2010 class [3:4:3].
Response time – ON <10 ms – OFF <10 msOnly for 3/2 versions: manual override - monostable or bistableInstallation - in any locationMATERIALS IN CONTACT WITH THE MEDIUM -Body - PBTFKM seals Brass – stainless steel—internal componentsinput:
output:ELECTRICAL SPECIFICATIONS -Voltage: – 6 to 24 V DC – Other voltages available upon requestVoltage tolerance: ±10%

Power consumption: 1 W – 1.3/0.3 W – 4/1 WDuty cycle – ED 100%

electrical connection – connector mod. 121-8… – M8 connector mod. CS… (the valve’s M8 connection is capable of accepting polarity reversal)Protection class – IP50 with connector 121-8… – IP65 with M8 connector
