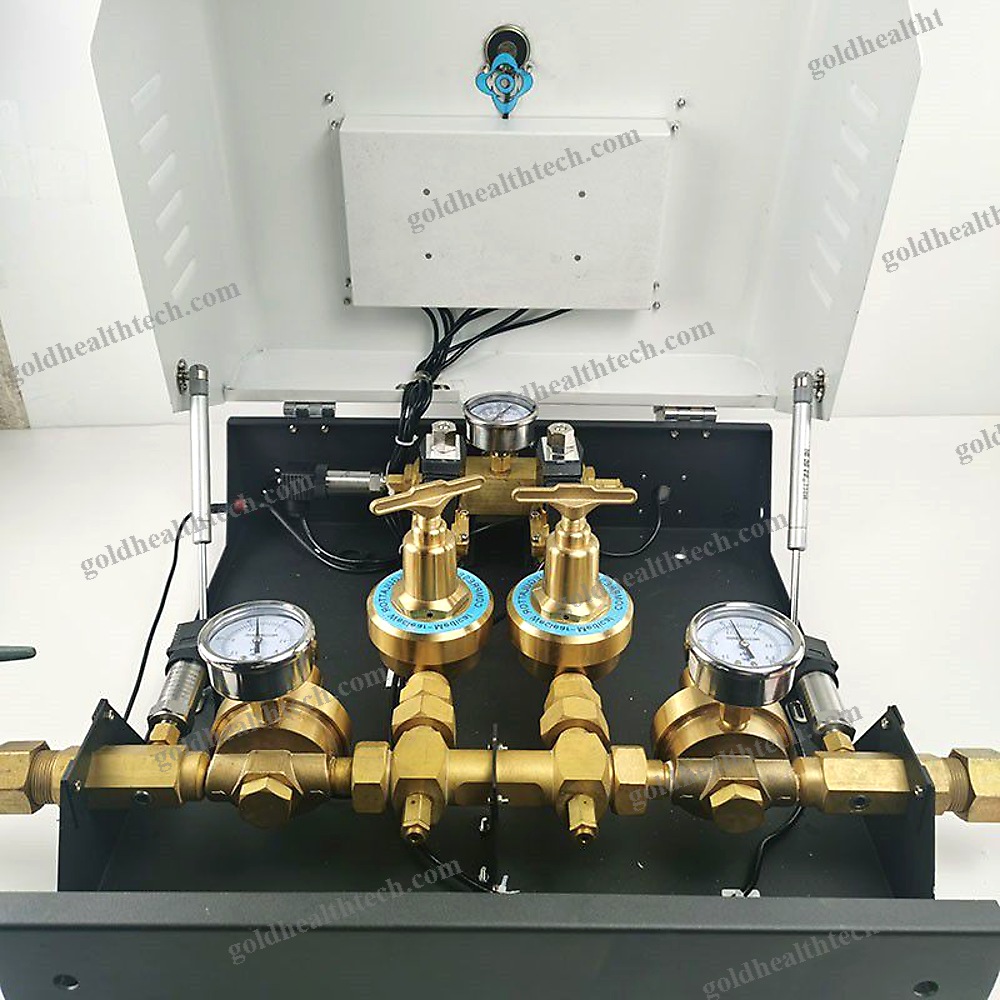

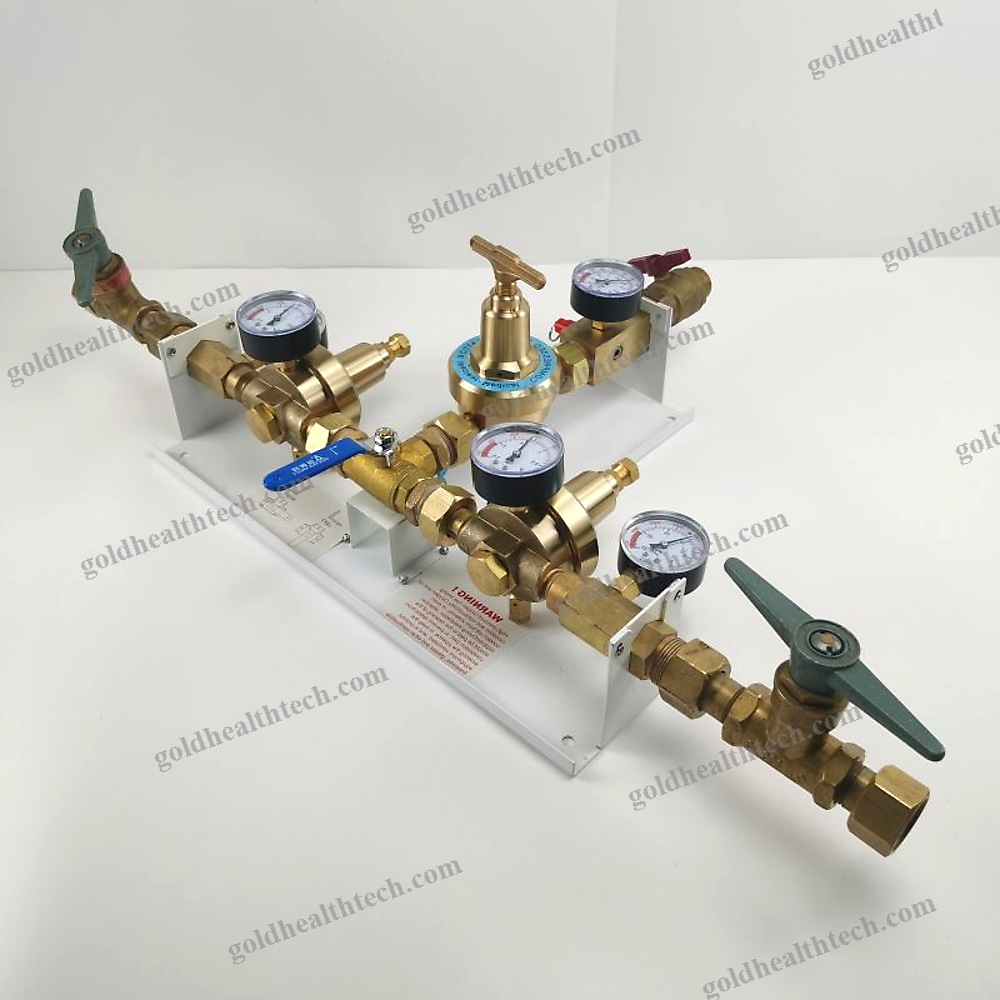

Manual Manifold

One type of our manifold is the Weclearmed® Manual manifold.The components are constructed from high-purity medical brass, and it is capable of generating consistent output pressure.It is appropriate for the majority of gases, including oxygen, air, nitrous oxide, argon, carbon dioxide, and nitrogen, as well as gas cylinders, liquid oxygen, and oxygen generators. In the operational state, one side is dedicated to gas supply, while the other is reserved for standby.Alternately and continuously distribute medical gas to the ward building.

Product Description

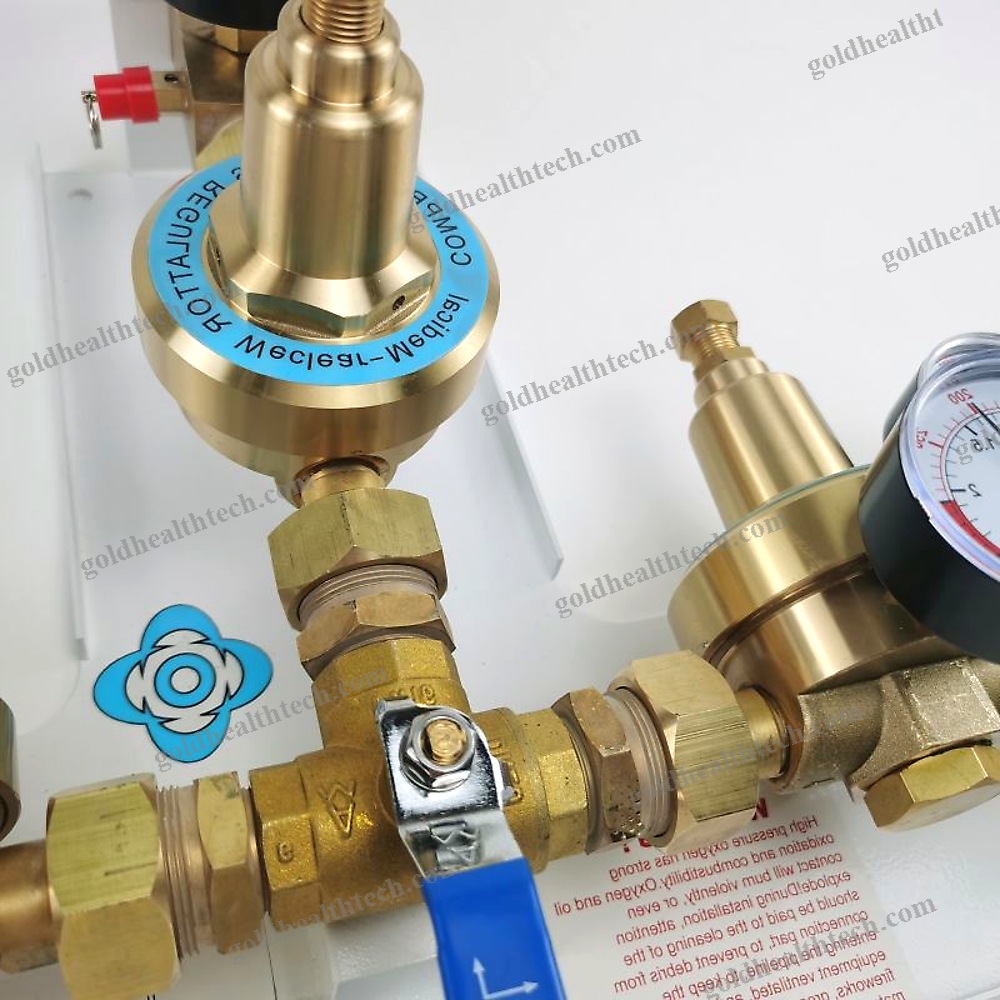

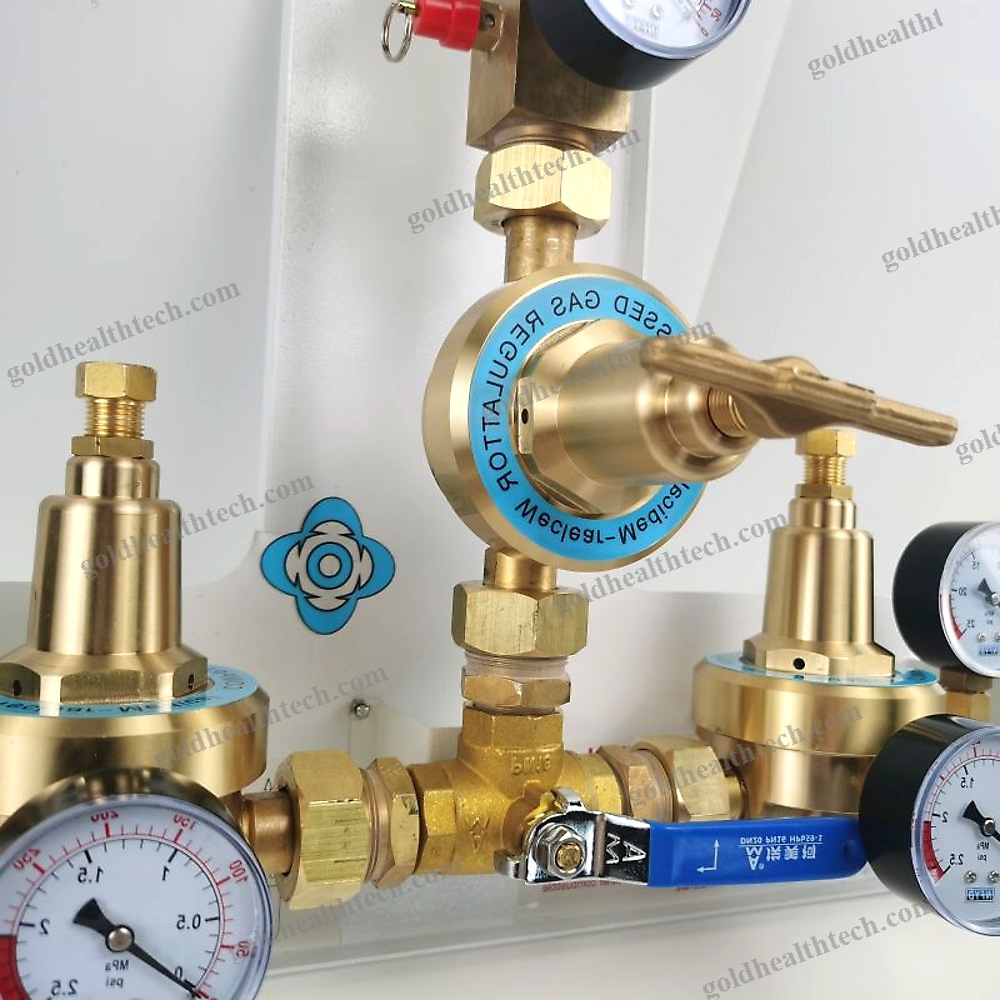

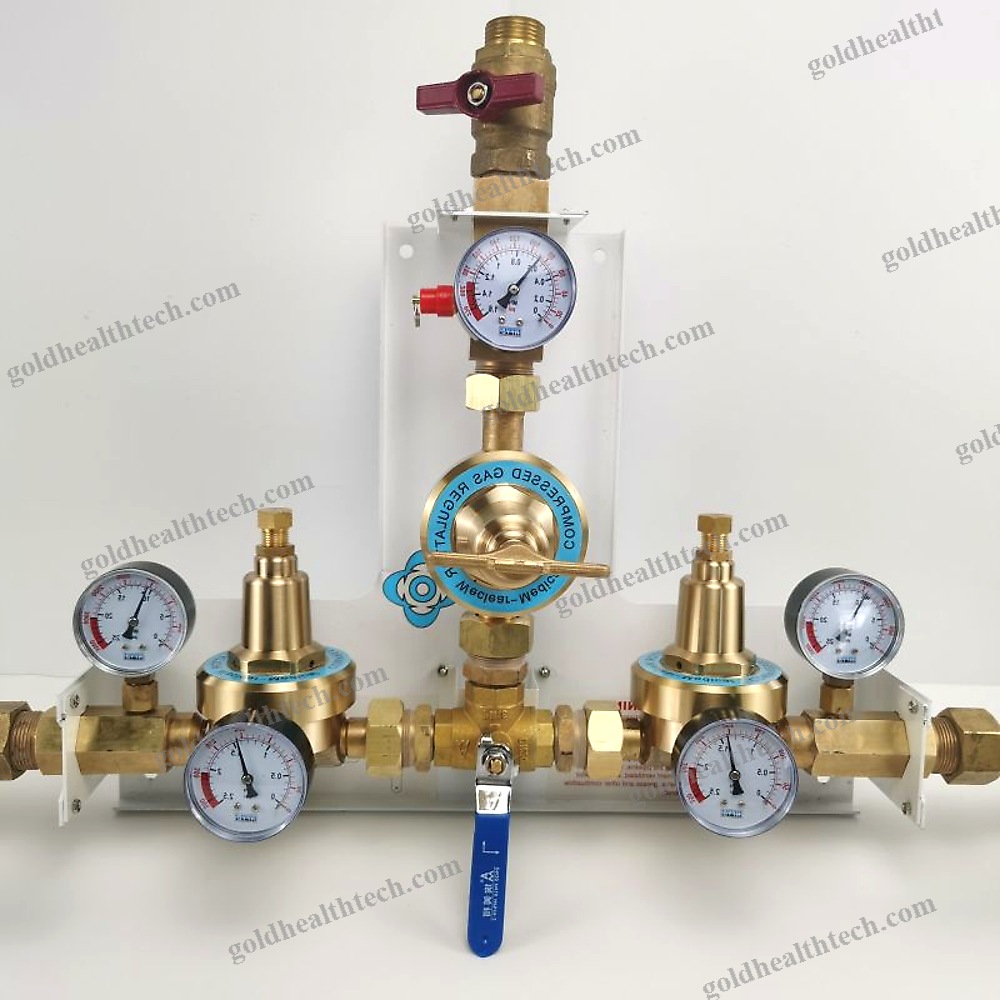

The Weclearmed® Manual manifold typically consists of a pressure regulator, pressure gauge, safety valve, and pipeline.The high pressure regulator reduces the medical gas on the left or right side to low pressure gas.The mechanical pressure gauge is capable of verifying the pressure following decompression.The low pressure gas is reduced to a lower pressure gas by the low pressure regulator to guarantee its safe transportation to the hospital building.It is capable of supplying a large flow and maintaining a consistent pressure to the second stage regulator in the ward building or directly to the terminal.Parameters: – Input pressure – L/R10 to 200 psiinput:
output:Pressure at the outletinput:
output:4 to 12 bars (Adjustable)input:
output:Flow Rate: 100 m³/h input:
output:Pipe joint thread: M33×2.0 (Adjustable)input:
output:Altering pressure6 to 10 bars (can setting)Changing the modeManual switchingThe opening pressure of the high pressure regulator relief valve is as follows:Twenty bars input:
output:The opening pressure of the low pressure regulator relief valve is as follows:Fourteen barsExternal dimension56 cm x 36 cm x 21 cmOperating temperature: -5℃ to 40℃input:
output:Relative humidity is the degree to which the air is moist.15% to 80% input:
output:Atmospheric pressure ranges from 80 kPa to 106 kPa.
