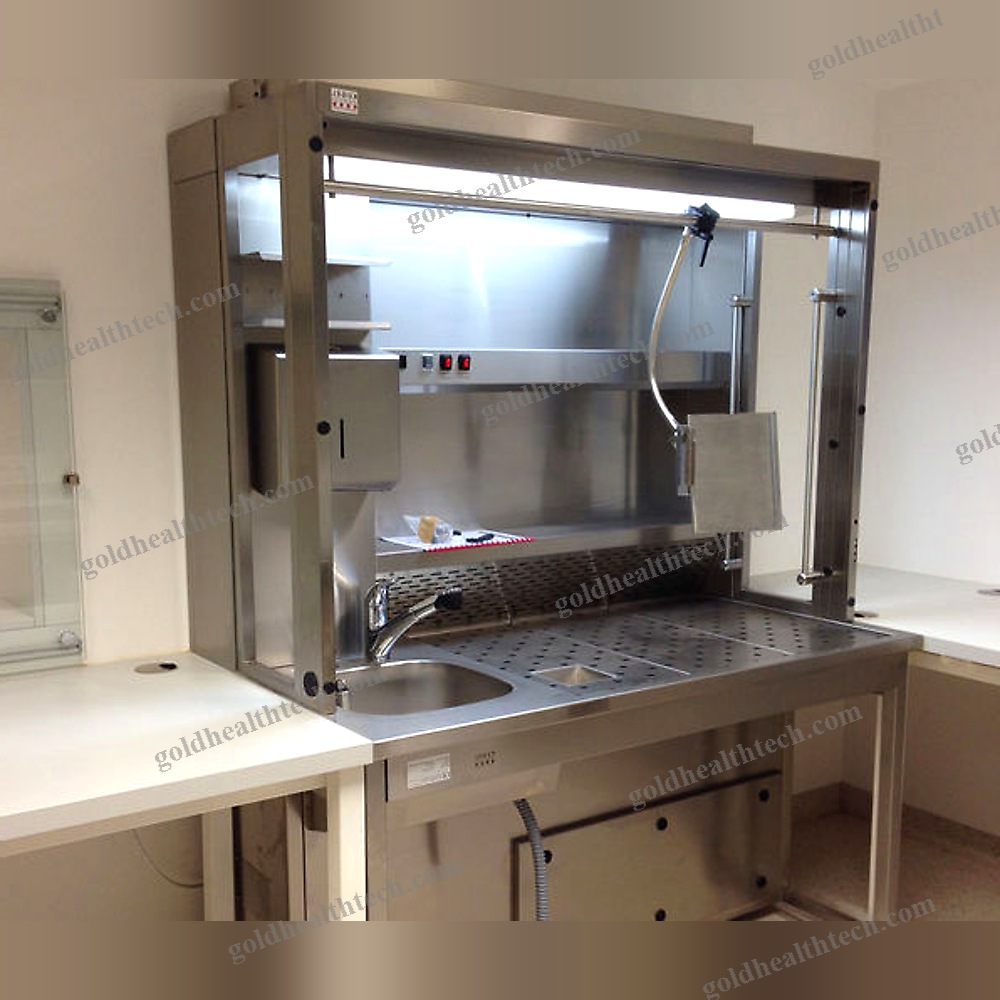

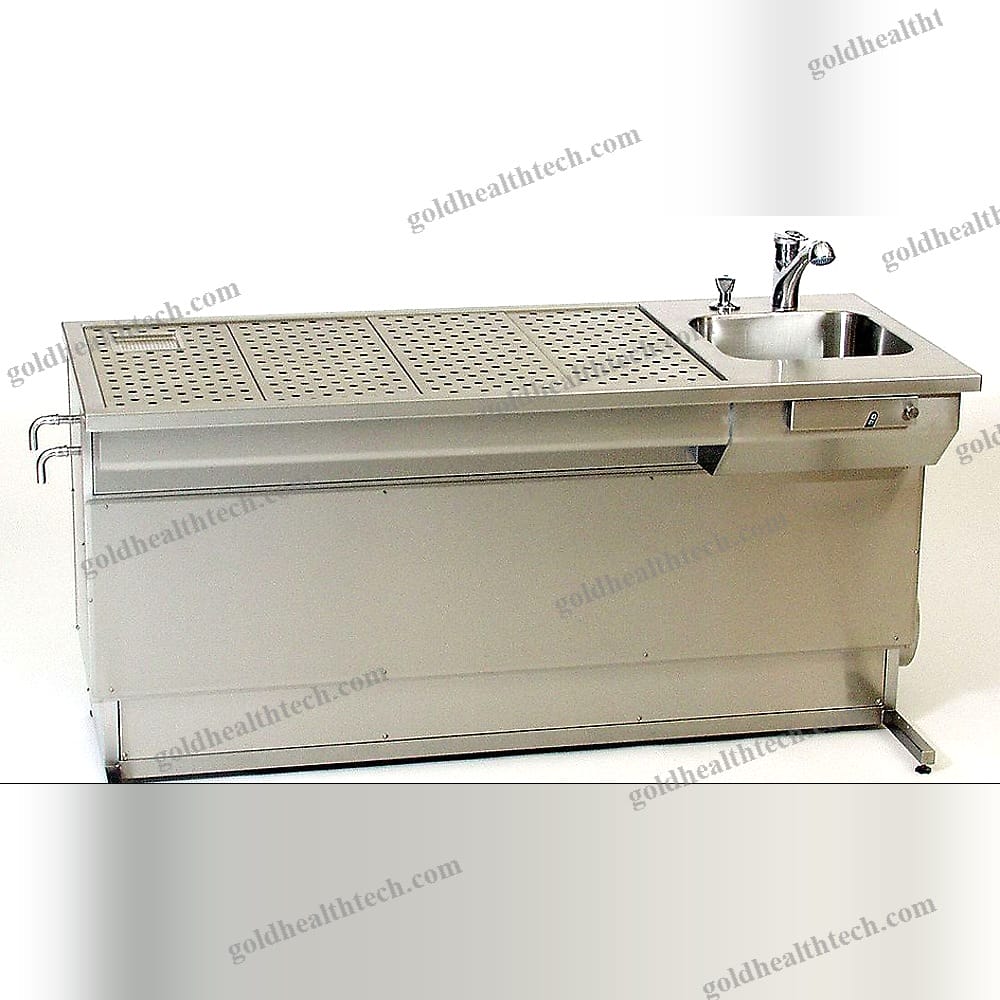

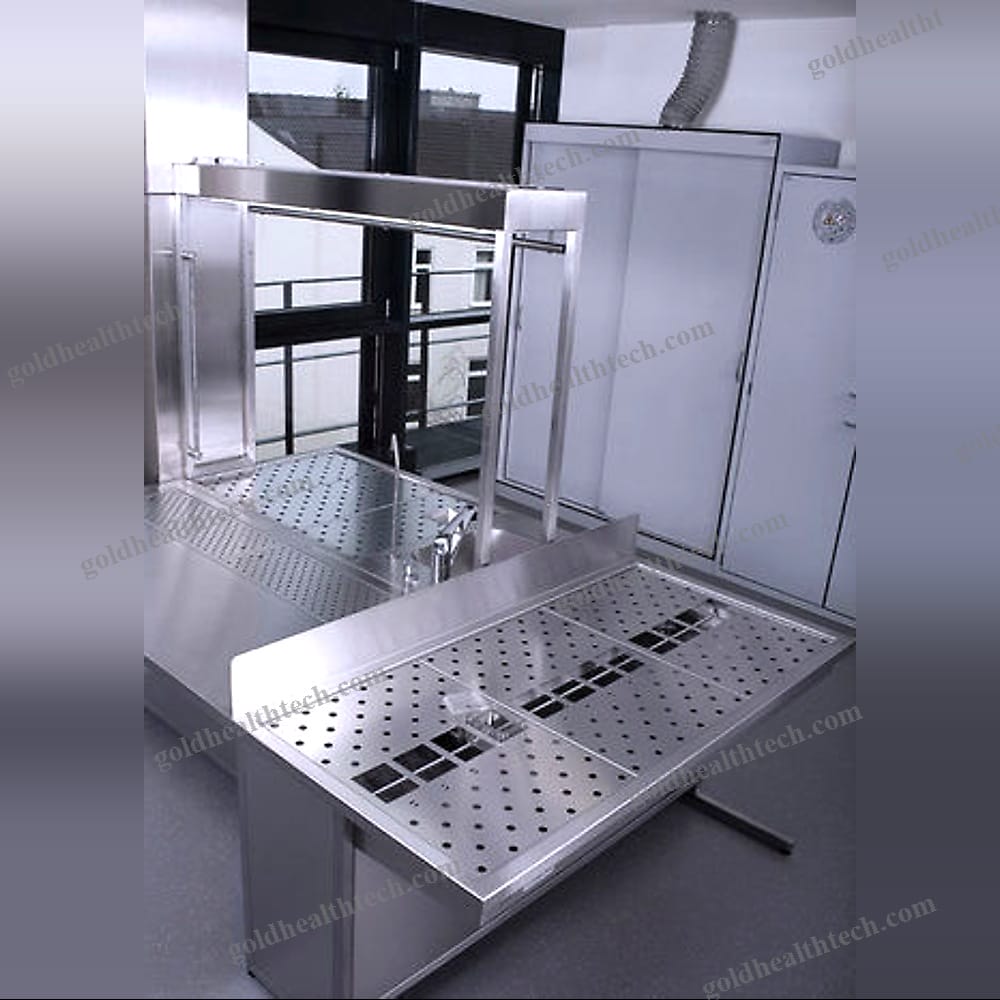

Macroscopy Table

A down-draft grossing table is equipped with an air-down draft system. The laboratory environment is guaranteed to be free of pollutants while slicing and preparing histological slide preparations on this specialized work table, which is also well-suited for small dissections. Optimal removal of unsanitary vapors is achieved by routing airflow throughout the entire working area and sucking it out downward. Throughout the entire vacuum-effected area, the MAC (maximum allowable concentration) values for formalin are below the target. The cutting table is to be connected to a side-mounted exhaust system that the customer has provided.

Workstations with a substantial surface area
The entire structure is composed of stainless steel.
Height-adjustable from 750 to 1000 mm
Adjustable legs and a self-supporting, stable undercarriageThe upper structure’s low overall height enhances leg room.The work surface is comprised of a basin that is seamlessly welded and measures 400 x 400 x 200 mm.The basin is equipped with an integrated air vacuum.The basin may be installed on either the right or left side.Very durable, perforated, and insertable working platesUnder the perforated working plates, there is an integrated sprinkler system with an adjustable valve for bath sanitation.Formalin sink with sieve insertCombining a tap with a detachable cold and hot water shower.Left or right side of exhaust duct

Diverse dimensions are accessible.TECHNICAL DATADimensions: 2000 x 750 x 750 / 1000 mm br/>
Minimum exhaust air capacity: 1100 m³/hMaterial: brushed stainless steel (1.4301 – ANSI 304)Perforated working area: approximately 1460 x 670 mmConnection for cold and warm water: 1/2″2″ waste water connectionDiameter of exhaust duct: 250 mm
