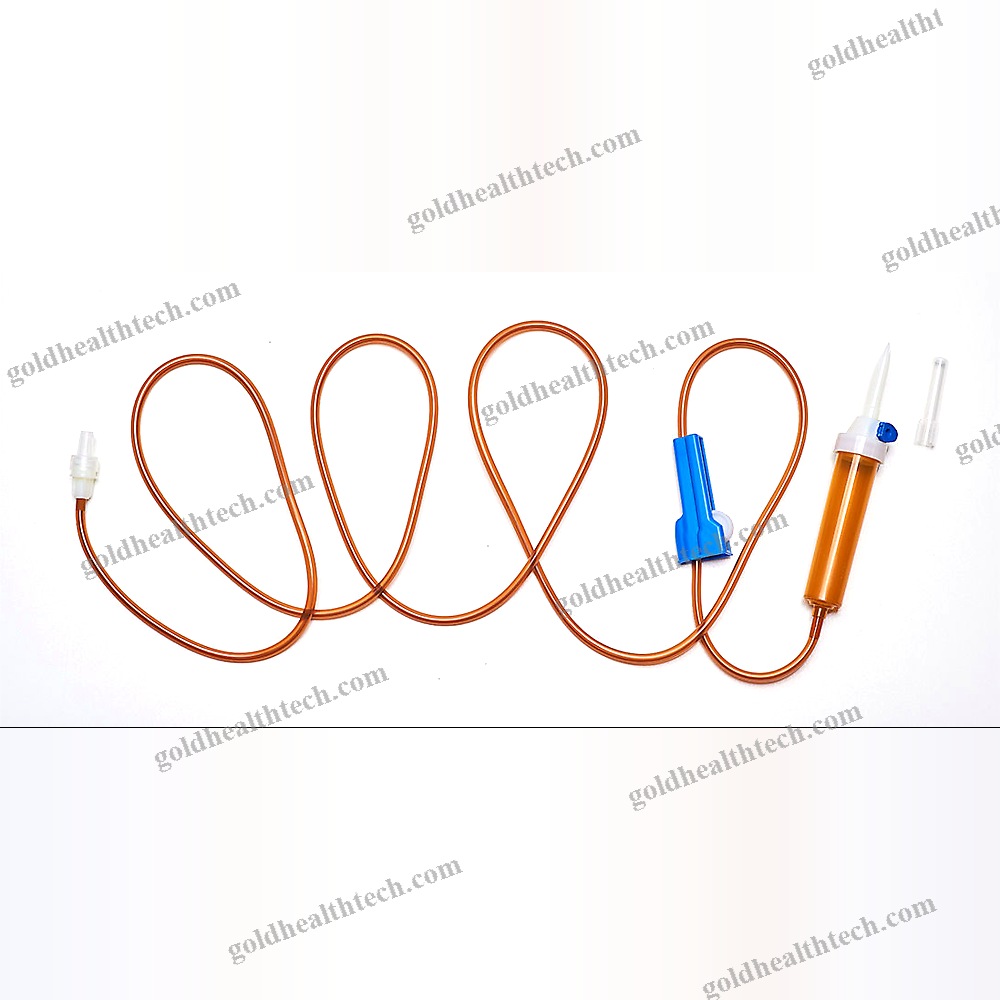

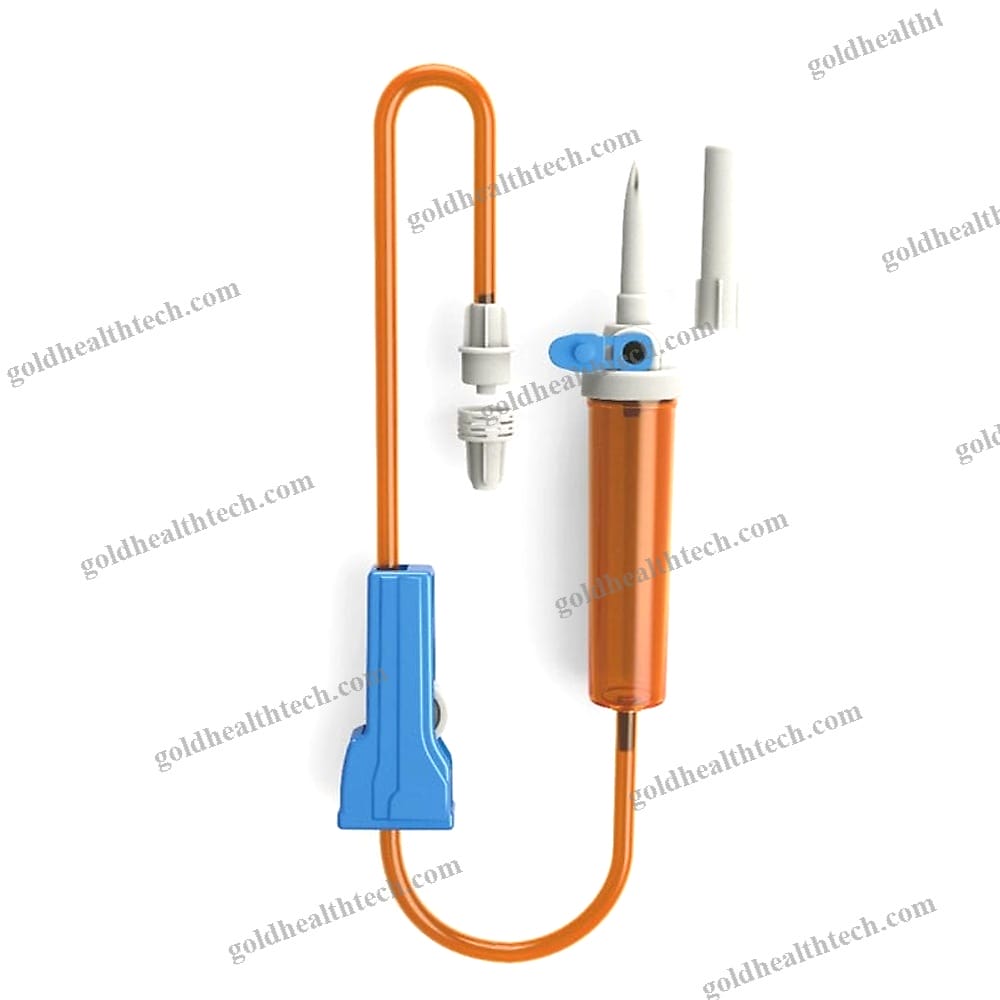

Iv Infusion Set

The infusion set IS is UV-protected and is utilized for the intravenous gravity infusion of fluids from a variety of containers, including bags. Sterilized by ethylene oxide, infusion sets are products intended for single use only. They are non-pyrogenic and non-toxic. They are free of phthalates and latex (DEHP, BBP, DBP, DIBP).

The amber color safeguards light-sensitive fluids by blocking 90% of UV light rays with a wavelength of 290 to 450 nm. input:
output:Options: with a long tubing that ranges from 150 cm to 220 cm.Specific components of the infusion sets include:

1. Spike cover with longitudinal ribs for effortless removal

2. – Two-channel spike to prevent the fluid from flowing out of the connection port and the sets from falling out of the container, allowing for easy insertion into small soft containers

3. – 20 drops of drip tube = 1 ml ± 0.1 ml

4. Luer-lock connector with cap

5. Long tubing (150 cm to 220 cm) that is DEHP, BBP, and DBP-free6. Hydrophobic air filter
7. A transparent, flexible plastic drip chamber that is long and free of PVC is used. This chamber is soft and comfortable to use, and it allows for easy determination of the fluid level.8. A fluid filter with a 15 μm mesh size9. – Blue on/off cap for hydrophobic air filter10. The flow regulator’s roll allows for the precise dosing or cessation of the fluid.11. Flow regulator with a logo, adjustable to a minimum of 15 mm.12. – After use, locate the spike.13. – Location for the tubing
