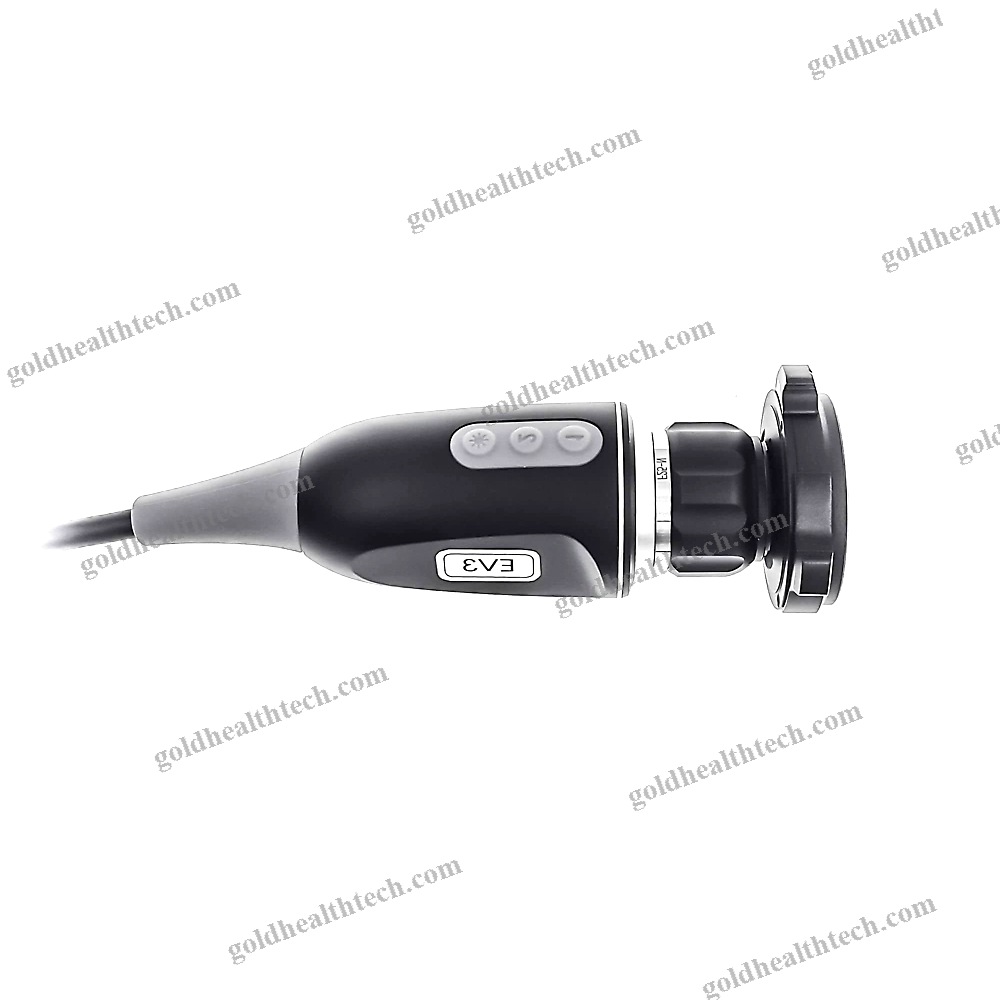

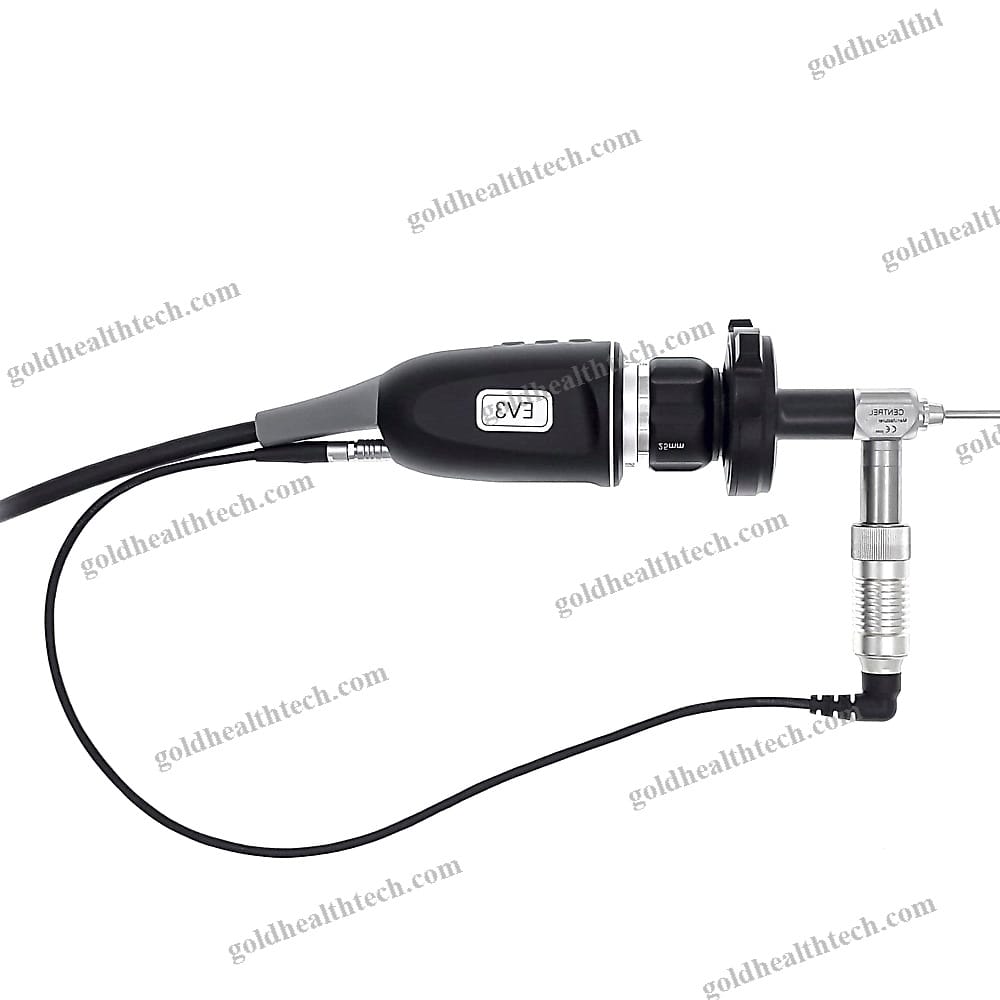

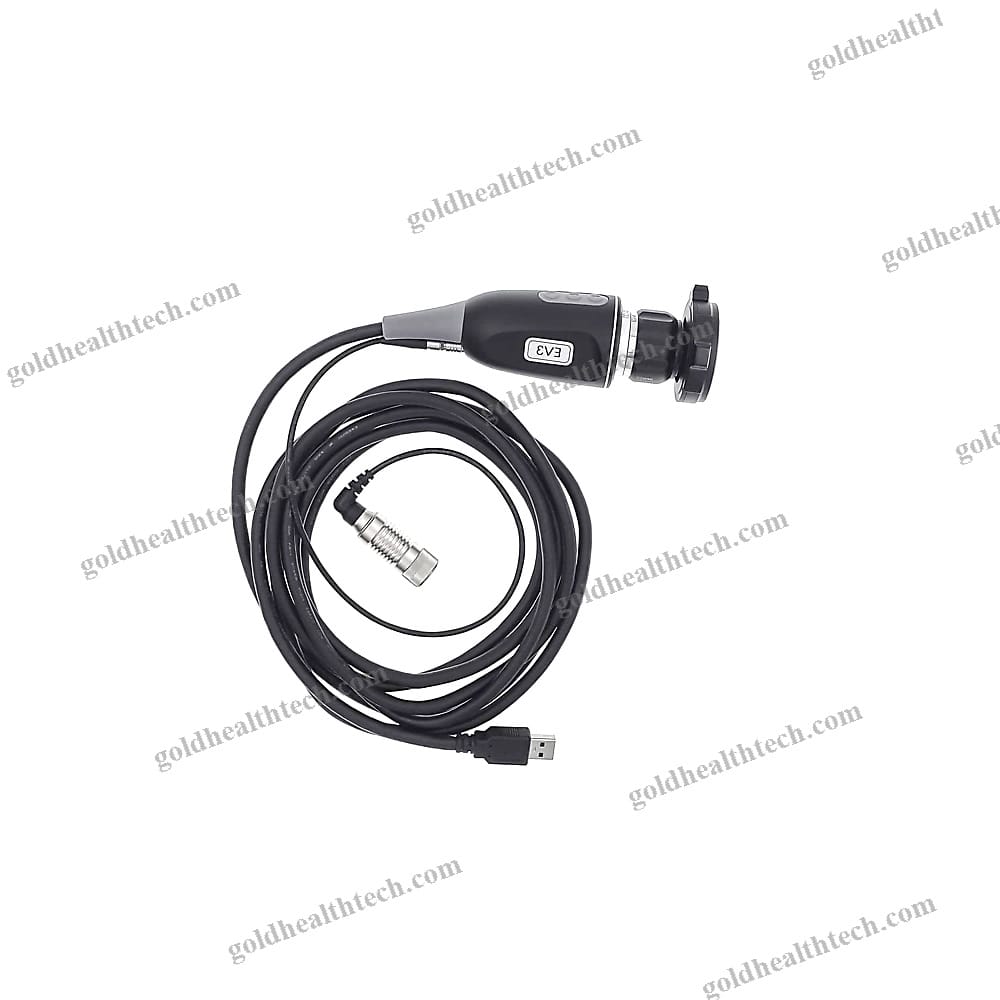

Endoscope Camera Head

The EV3 is the optimal choice for those who require an instrument with exceptional mobility and a negligible weight. To obtain a comprehensive video endoscopy station, a PC or notebook with a USB 3.0 connection is all that is necessary.input:
output:The camera head’s LED, which is powered by the USB port, eliminates the necessity for an external light source and the associated fiber optic cable. Even in low-light conditions, the Full HD CMOS sensor’s high sensitivity produces a clear and vivid image.input:

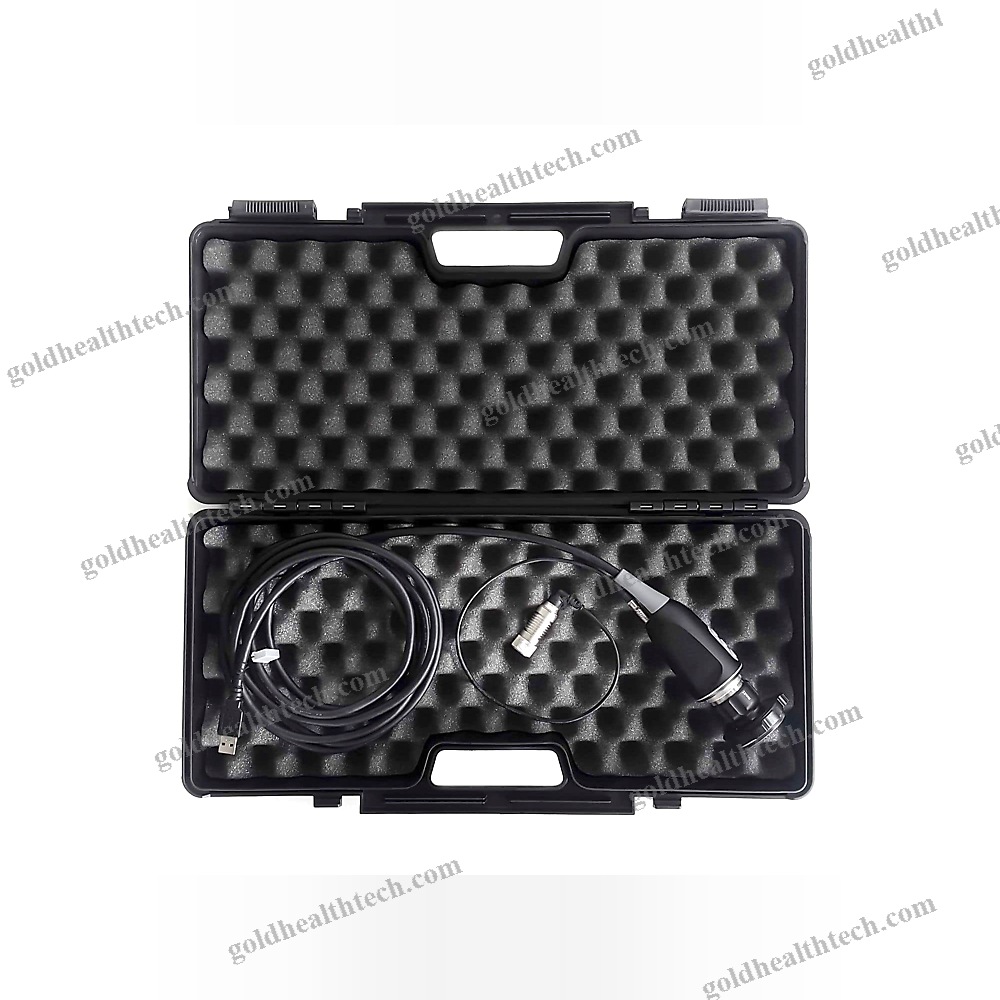

output:The field of view can be customized to match the fixed or flexible endoscope being used by utilizing the standard connection fittings, which are available with a variety of fixed and zoom focal lengths. The EV3 is delivered with a practical carrying case and software that includes a patient database as standard.input:
output:Specificationsinput:
output:
Sensor: CMOS 1/3″ Full HD, 16:9input:
output:Resolution: 1.920 x 1.080 at 30 frames per secondinput:
output:Sensitivity: 1 Luxinput:
output:Electronic shutters are available in speeds ranging from 1/50 to 1/100.000 seconds.Signal-to-noise ratio: greater than 52 dB
Image/movie capture – Two buttons are located on the camera head.input:
output:Fitting – C-Mount coupler (optional)White balance: Press the “white” button on the camera head.LED light source with a lifetime of 250,000 hours and a color temperature of 5,500°Kinput:
output:USB3.0 standard, 3 meter connection cableinput:
output:Application – Endoscopes that are both flexible and rigidinput:
output:Sterilization: Immersion in liquid or ethylene oxideinput:
output:Dimensions of the head: 5 cm in height, 5 cm in width, and 10 cm in depth.input:
output:S.O. compatibility – iOS and Windows 10input:
output:In accordance with the European Directive 93/42/CEEinput:
output:Classification – I type BF
