Double-Layer Press

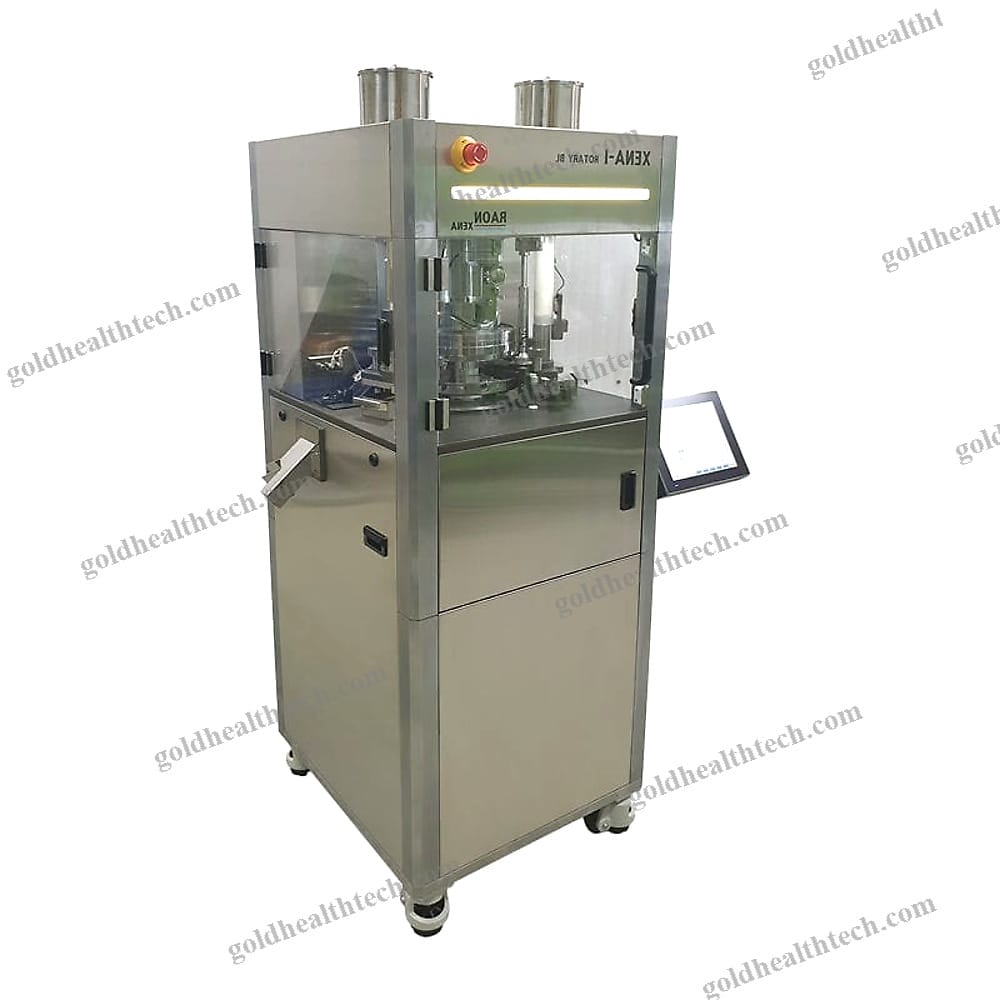

The XENA-I ROTARY BL was specifically engineered for the production of mono-layer and double-layer tablets. It is well-suited for clinical or small-quantity production operations, process improvement, and product research and development.

This compact press is GMP compliant and features a removable fairing, which allows for effortless assembly and disassembly of components.

R&D software is included in the software package to facilitate the production and development of tablets.Station: 10

Type: Euro D or B or D&B

Maximum Main Compression: 60KN

Maximum Main Pre-Compression: 10KN

Maximum Ejection Pressure: 5KNMaximum Filling Depth: 18mm Upper Punch Penetration: 1–4mmMaximum Second Layer Insertion Depth: 6.5mmMaximum Tablet Diameter: 25mmMaximum Tablet Thickness: 8mmTurret Speed: approximately 40 RPMFeeder Speed: approximately 60 RPMØ230: Turret Pitch Circle DiameterSize: 1740(H) x 700(W) x 780(D)mm [Without Hopper, Panel PC] Filling Cam: 4~10mm / 8~14mm / 12~18mm

[With Panel PC, Hopper] 1880(H) x 1070(W) x 780(D)mm

Power: 4KVA, 220V (3 phase), 50/60Hz

Compressed Air: 5 barThe weight of the 12.1″ panel PC is approximately 1000 kg.

All controls are located on a single screen.Feeder 2 reverses direction at the commencement of sampling.Punch Tooling: Inching Control & Replace both upper and lower punches in a single sectionPowder Detection: Supplied with a powder detection sensor (Feeder 1, 2)Filling Cam Automatic Detection by TypeAutomatic control device for filling depthAlarm and stop by interlock as the door is opened during operation.In order to reduce the mixing of the layers, two first and second-layer suction bars were employed, as well as a first and second feeder with a suction function.Multi-recipe functionality
