Corneal Topographer

The sole portable topographer capable of capturing and processing images, processing maps on-board, and maintaining an internal patient database that can be exported via LAN or USB.input:

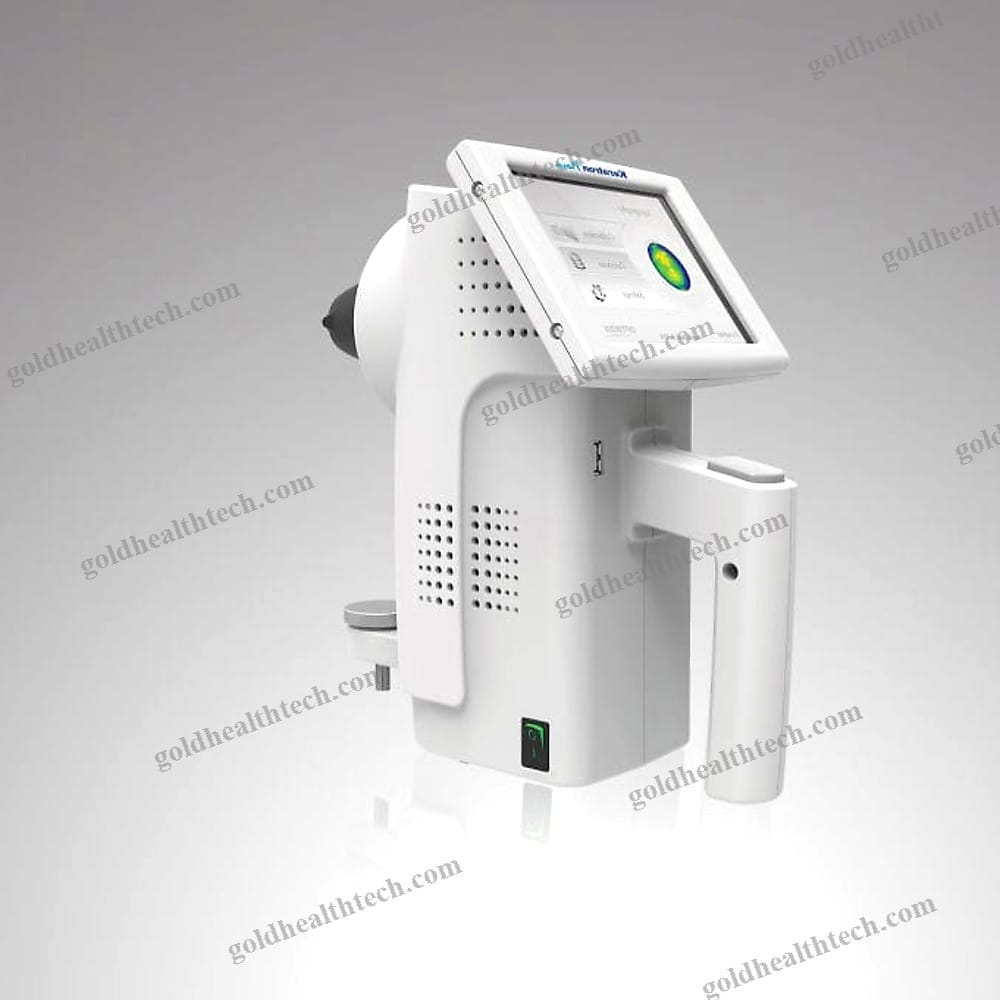

output:Keratron™ Nova, the most recent iteration of the Keratron topographer family, is a benchmark for corneal topography performance. The sole portable topographer capable of capturing and processing images, processing maps on-board, and maintaining an internal patient database that can be exported via LAN or USB.input:
output:PRIMARY FUNCTIONS:input:
output:”Cone” corneal topography, EPCS (Eye Positioning Control System)input:
output:Corneal aberrometryinput:
output:Scotopic and photopic pupillometryNon-invasive break-up timeinput:
output:Keratron™ Nova is designed with a touch screen color display and an intuitive and user-friendly software that enables rapid access to the image processing system, thereby guaranteeing highly repeatable and dependable results in even the most intricate cases.input:
output:The “mires cone” and the capturing system’s simplicity, which provide dual functionality “Near/Far,” provide the benefits of superior corneal coverage and a more efficient and rapid capturing process, resulting in a reduced number of repeated attempts and improved efficiency.input:
output:The data’s precision facilitates the optimization of contact lens testing, thereby assisting the specialist in challenging and unique circumstances.input:
output:PARAMETER SPECIFICATIONSinput:

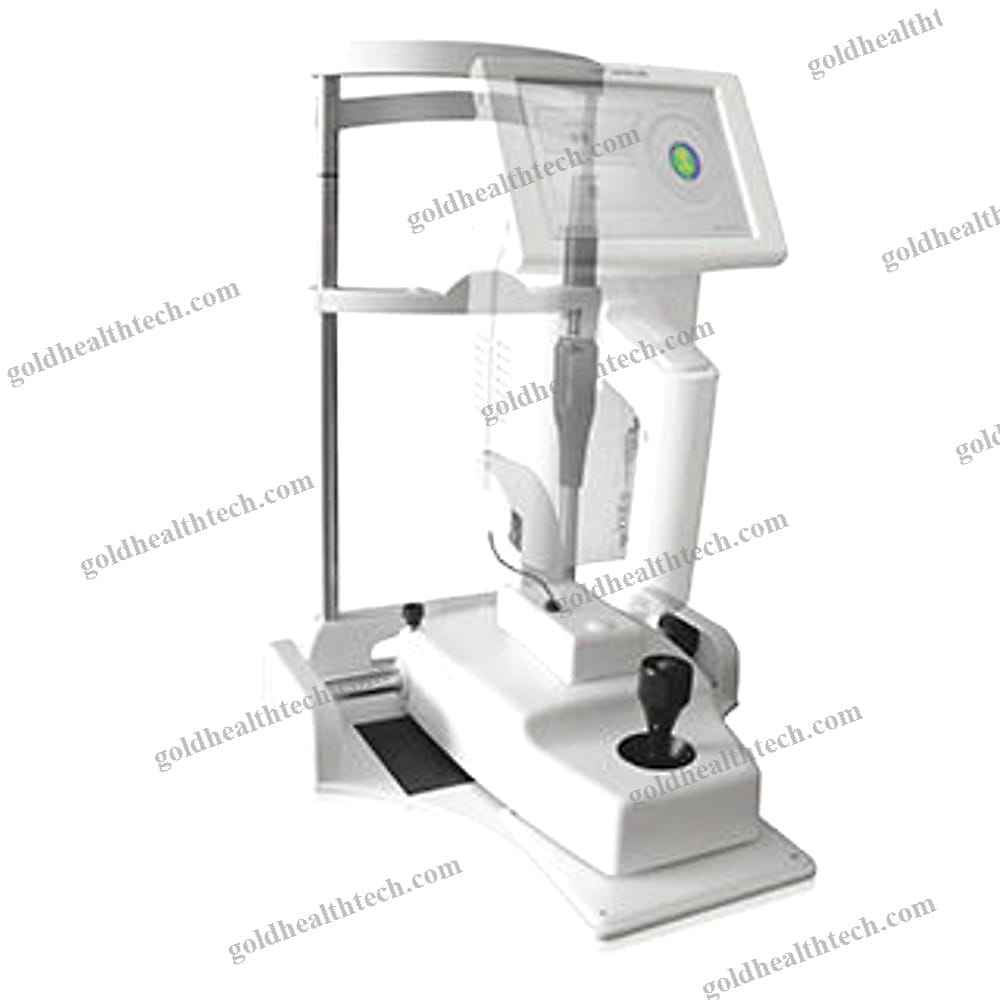

output:CONFIGURATION – Compatible with the most widely used slit lampsinput:
output:ANALYSIS AREA – 10mm x 14mminput:
output:KERATOSCOPE CONE – A 43D sphere with 28 border mires that are evenly spaced. Bivalent cone with touch screen selection of “Near” and “Far”input:
output:POINTS ANALYZED: More than 80,000input:
output:MEASURED POINTS: 7,168-input:
output:CORNEAL COVERAGE – From 0.33 mm (minimum diameter on a 43D sphere) to 11 mm on a normal eye
