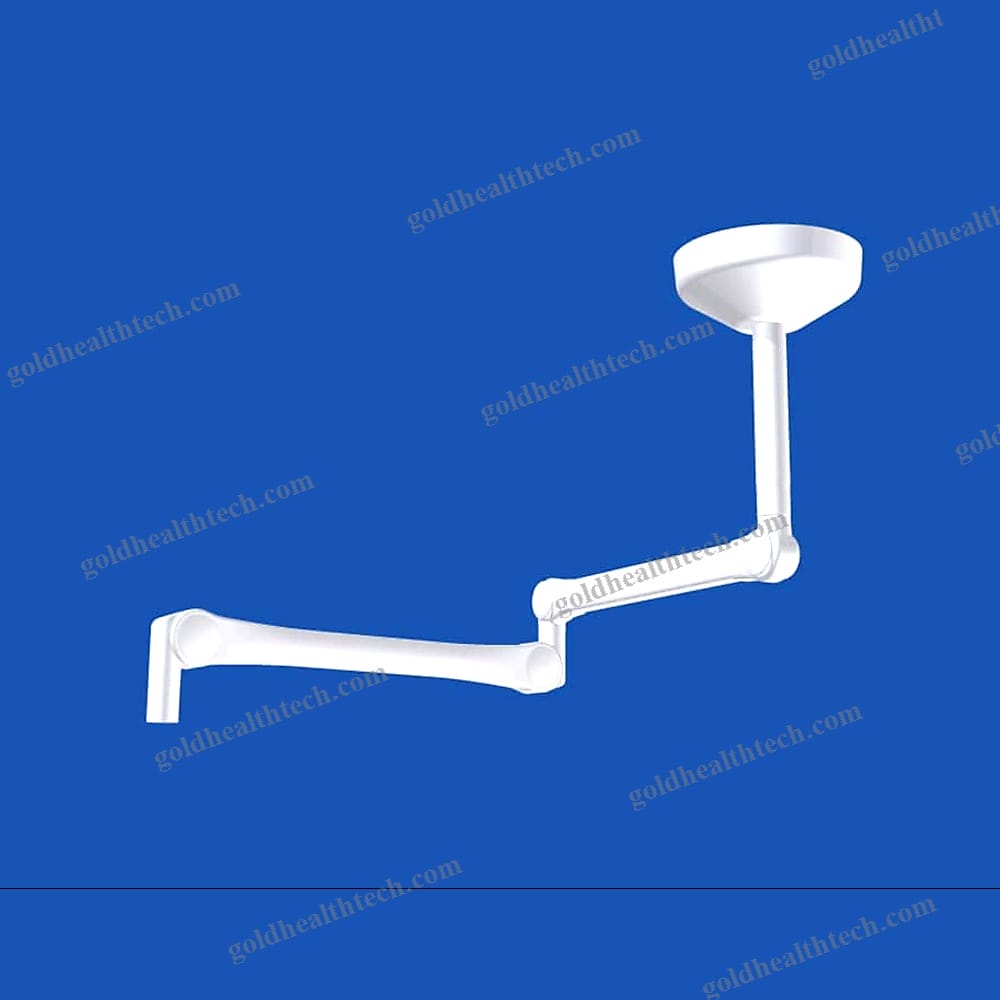

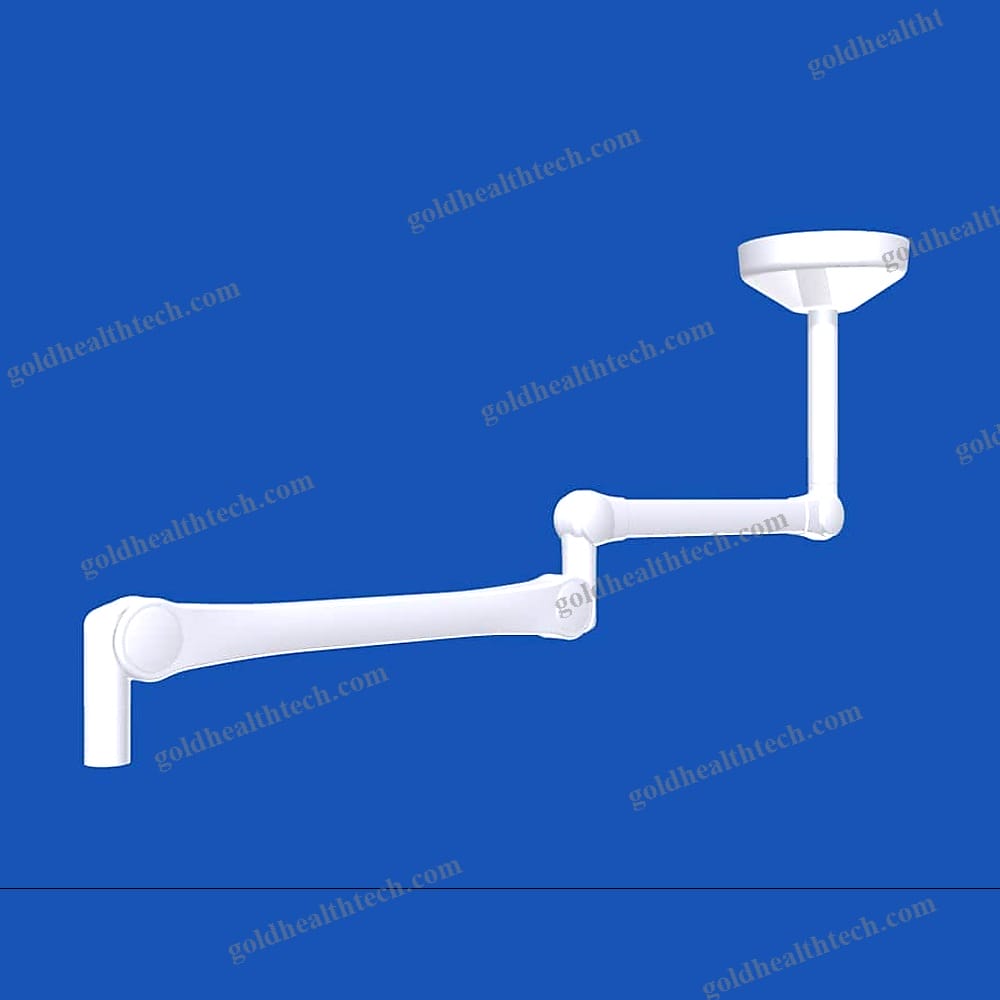

Ceiling-Mounted Support Arm

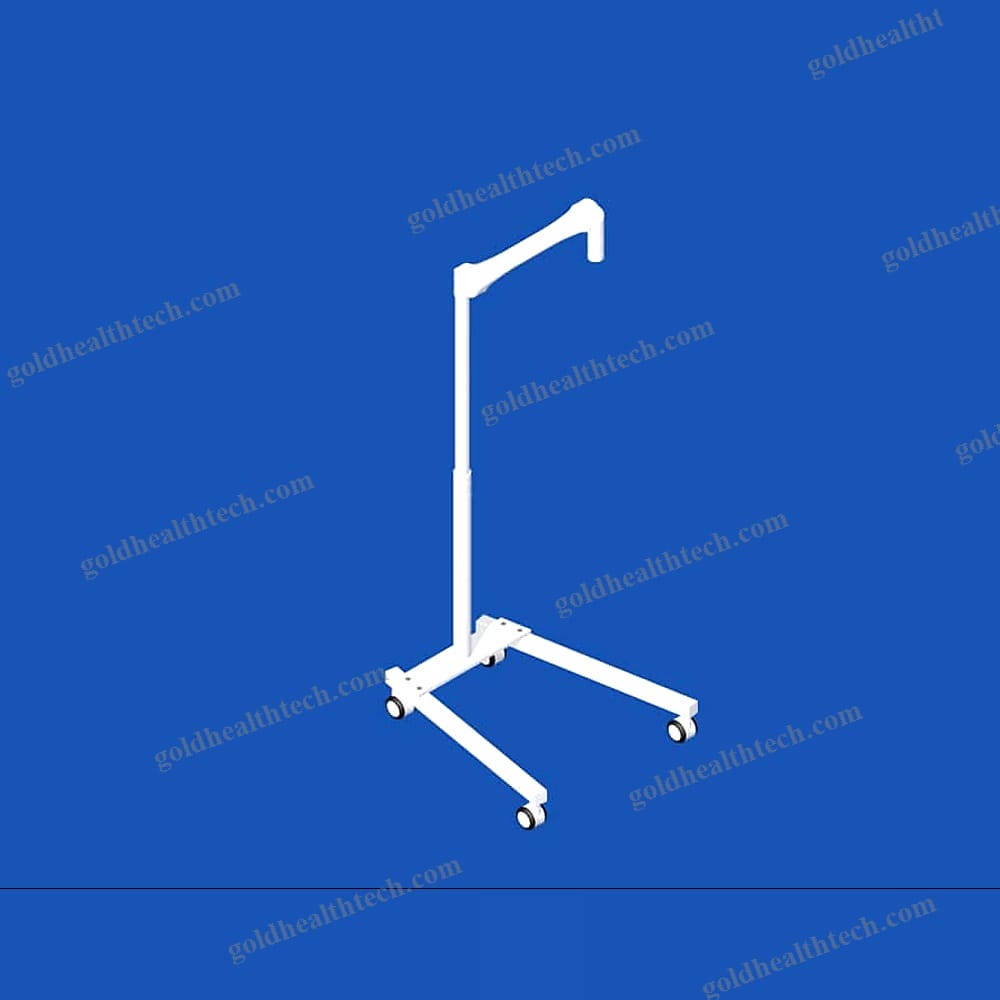

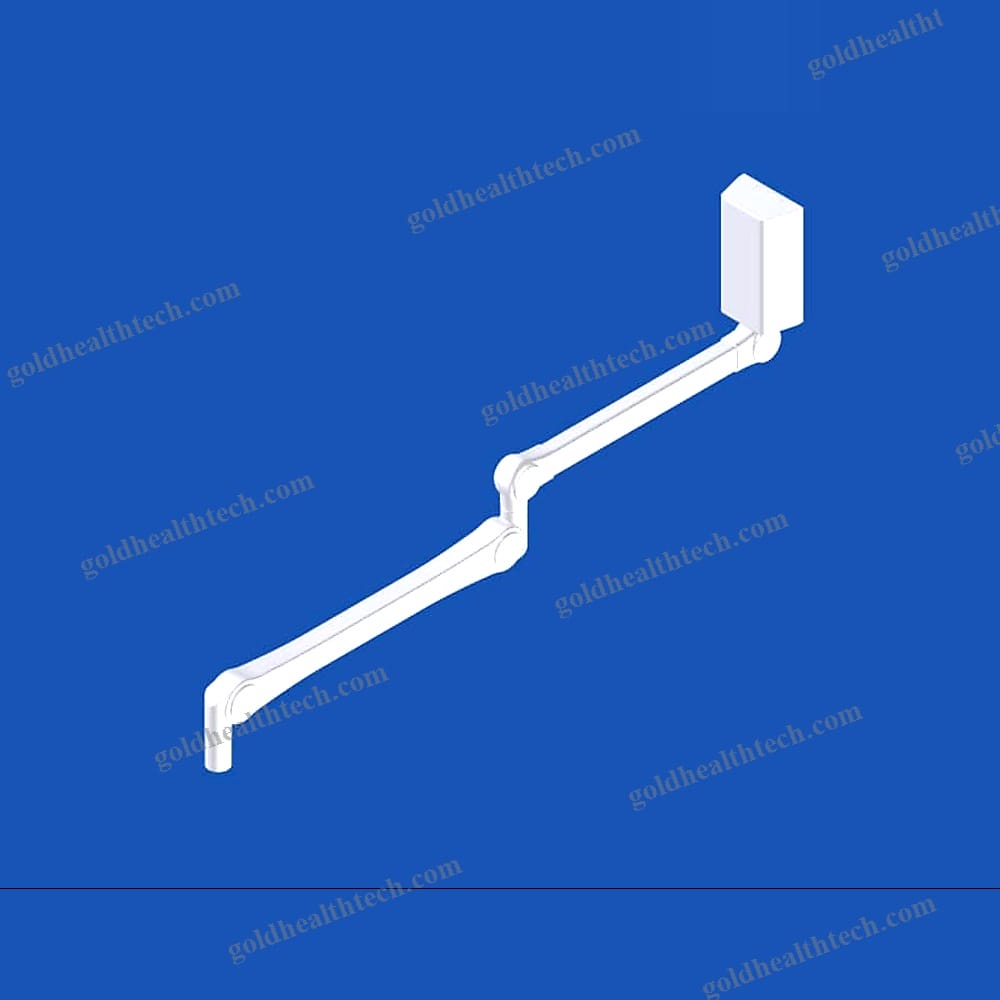

| Configuration | Wall-Mounted, Ceiling-Mounted, Mobile, Floor-Mounted |
| Other Characteristics | Modular, Lockable, With Cable Integration |
| Applications | For Monitors, Surgical Lights, For Cameras |
| Function | Tilting, Height-Adjustable |
| Application Domain | Medical, Dental, Surgical |
The OASYS 3001 arm is the most versatile and robust of the OASYS medium duty products.
It is similar in design to the OASYS 2001, but it boasts a greater load capacity and additional features, including a device coupler with brake. The OASYS 3001 is capable of supporting loads of up to 30kg (66lb) and can transport a variety of devices, including monitors/surgical displays, lights, and cameras.input:
output:Several customizable features are available for all OASYS 3001 arms:
Accurate adjustment of the load
Calibration in parallel
Adjustable height limit
Option for a complete 360° rotation with multi-pole slip rings or a partial 330° rotation with stops
The 3001 arm is primarily utilized for surgical displays and features a 330° rotation stop.input:
output:Supports loads of up to 30 kilograms (66 pounds)
A sleek design that bears a resemblance to the 2001.A robust 330° rotation stop that has undergone a thorough testing process to prevent breakage
Excellent cable management capabilities
Easily serviceable in the field.Simple to install and remove.
RAL colors of the arm are available in a variety of hues.The round end covers are available in a variety of colors.
The 3001 device end is compatible with the majority of monitor yokes, including OASYS monitor yokes, and features needle bearings to ensure the smooth rotation of the connected device.Industry-standard extension arm sleeves are compatible with a 40mm fixed end stem.
A robust fixed-end pin stop that has undergone a thorough testing process to prevent breakage.
Adjust the brake screw on the device end using a flat head or allen key tool.input:
output:Load range: 4.5-30kg (10-66lb)The maximum diameter of a single cable is 19mm (0.75 inches).
Maximum cable allowance: 465mm² (0.72in²)
Vertical travel is limited to 45° in both directions upward and downward.Approvals: CE, URC, UR
Classifications: IEC 60601-1Colors: RAL 9010, RAL 7035, RAL 9002, and custom colors are available upon request.
