32-Channel Eeg Cap

Reduced application time and enhanced subject comfort are achieved by employing Greentek's 19ch GT Cap ST for EEG monitoring.input:
output:EEG electrode caps are employed to facilitate the affixation of electrodes to the scalp, thereby simplifying the process of electrode placement. The EEG Electrode caps guarantee that the electrodes are positioned accurately and maintain a sufficient level of contact with the scalp.input:

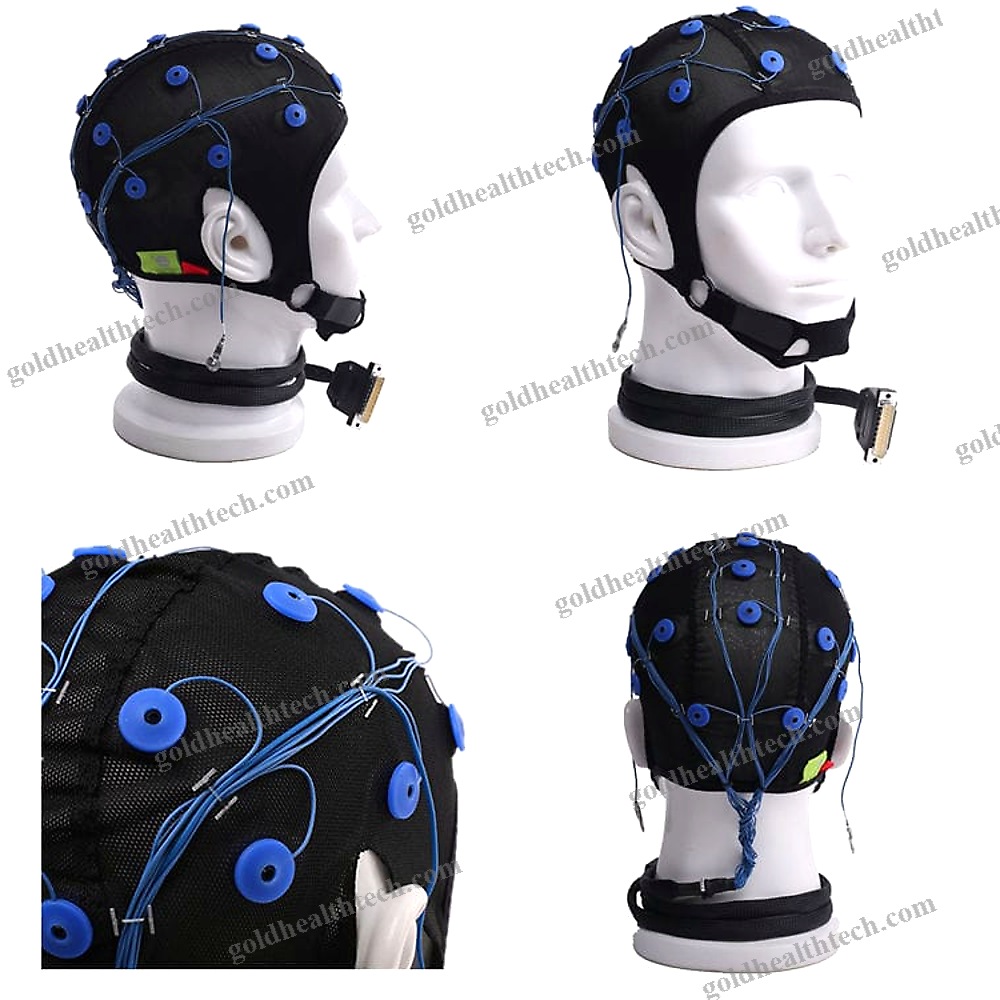

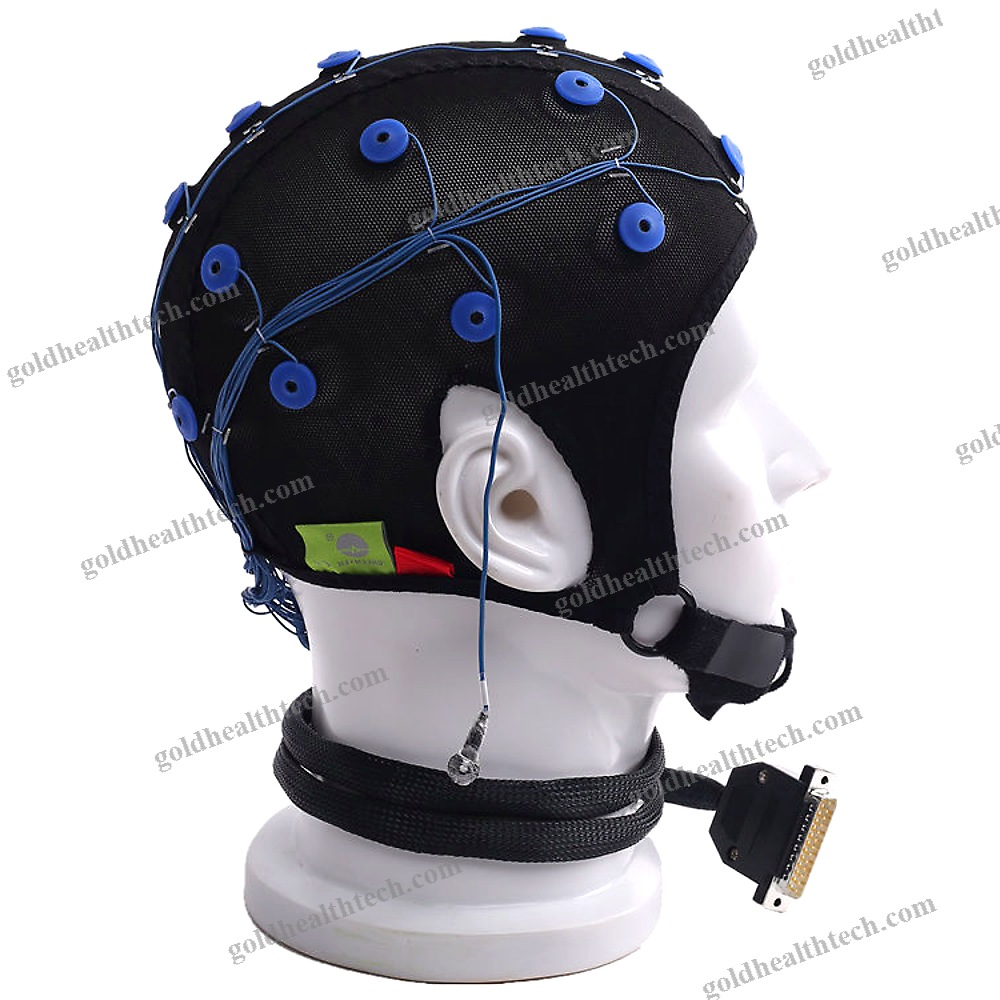

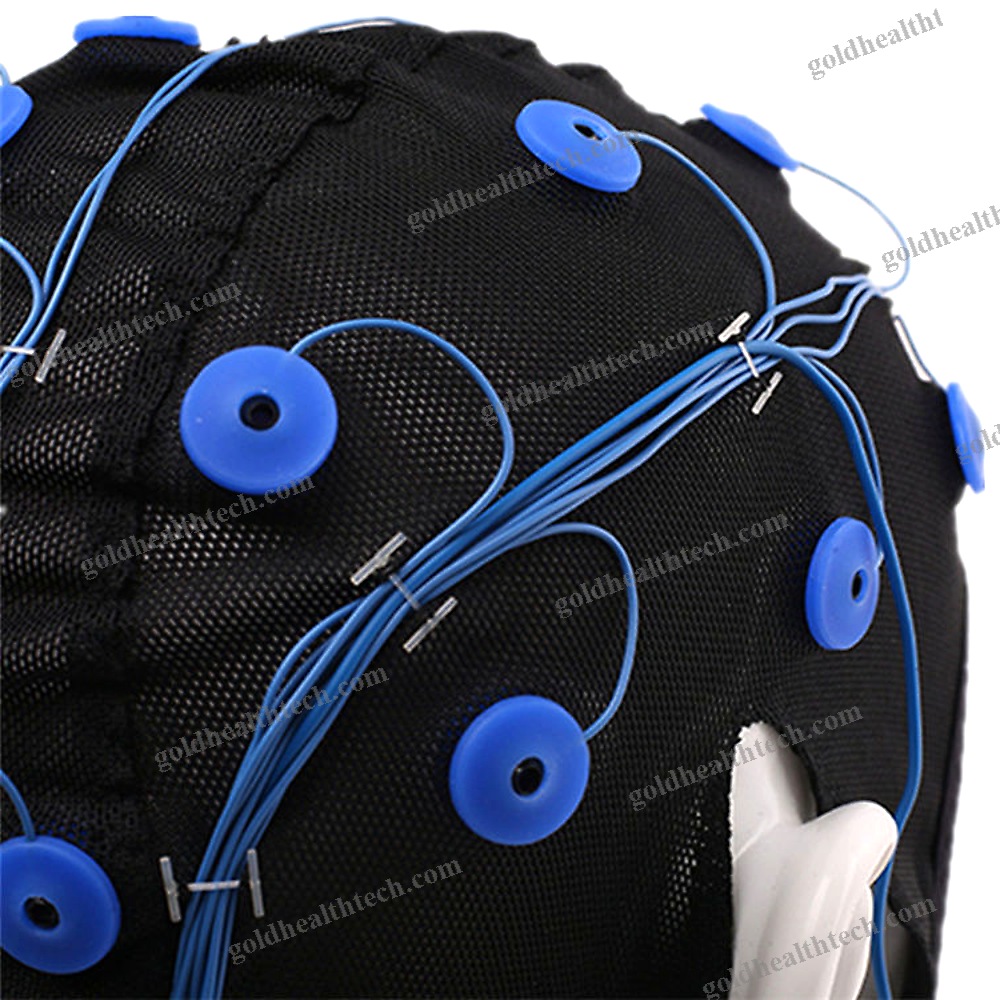

output:Greentek's GT Cap ST with AgCl electrode sensors for EEG Monitoring are constructed from an elastic spandex-type fabric that is attached to recessed, coated Silver Silver Chloride (Ag-AgCl) electrodes.input:
output:This non-invasive EEG monitoring cap contains nineteen embedded electrodes, as well as GND, REF, and A1 and A2 eardrops. The international 10/20 montage pre-positions electrodes, enabling even novice EEG researchers to reduce electrode placement errors.input:
output:Each electrode is connected to a ribbon cable with a DB-25 male connector that fans out in the cap. Additionally, a mating adapter cable with a DB-25 female connector on one end and 23 mating cables are necessary. In the opposite end, touchproof sockets enable the electrode cap to be effortlessly disconnected from the recording amplifiers, enabling it to be installed in one location and utilized in another.Specifications



Material: Coated Ag/AgCl electrodes or sintered Ag/AgCl electrodes

Size: 34-38cm, 38-42cm, 42-46cm, 46-50cm, 50-54cm, 54-58cm, 58-62cm

Certificate: CFDA, ISO 13485, CE, Rohs

Usage: Primarily for clinical use

Delivery within 7 to 15 daysCardboard boxes of varying sizes are used for packaging.Internationally recognized electrode placement system with a standard of 10-20 electrodes
