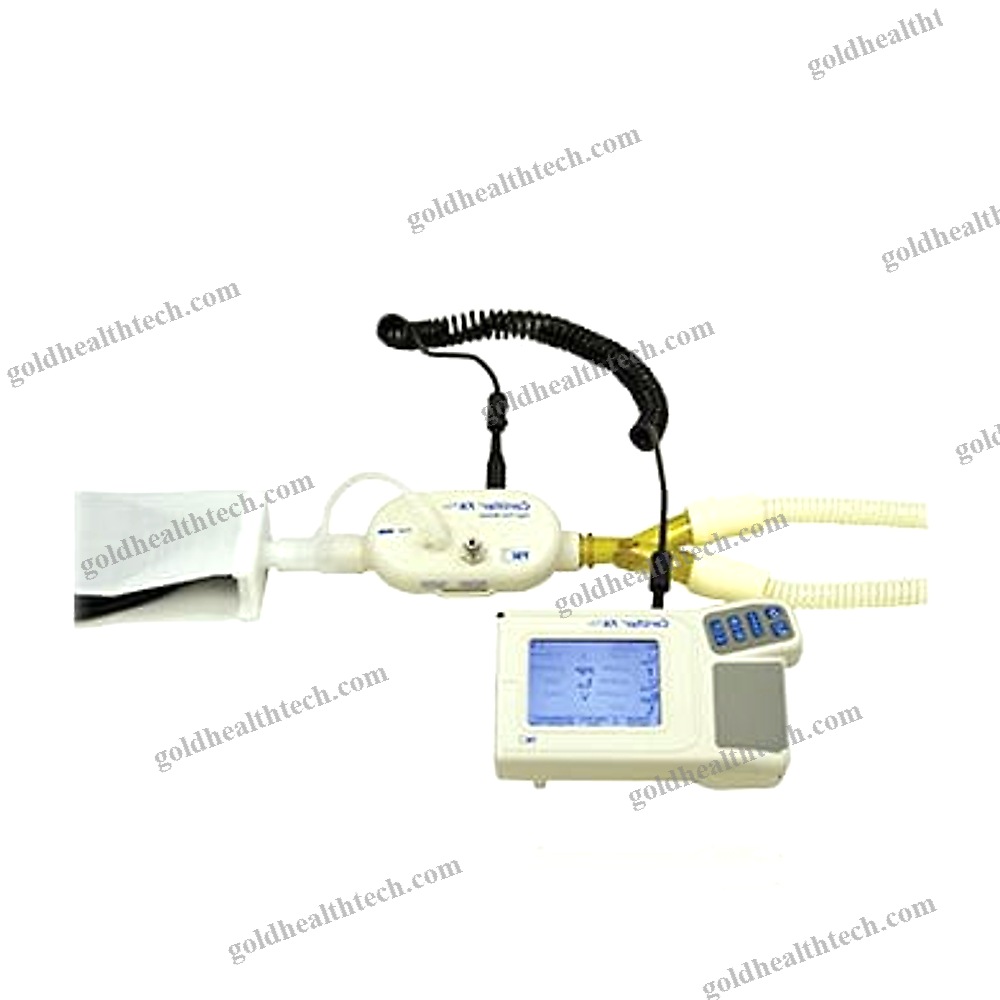

Flow Testing System
Flow Testing System

3 Sections Tilt Table

Number Of Sections 3 Sections
Other Characteristics Phlebology, Electric, Height-Adjustable
Add to compare
Add to wishlist
SKU: 40a348e0a5cb Category: Tags: , ,
Description

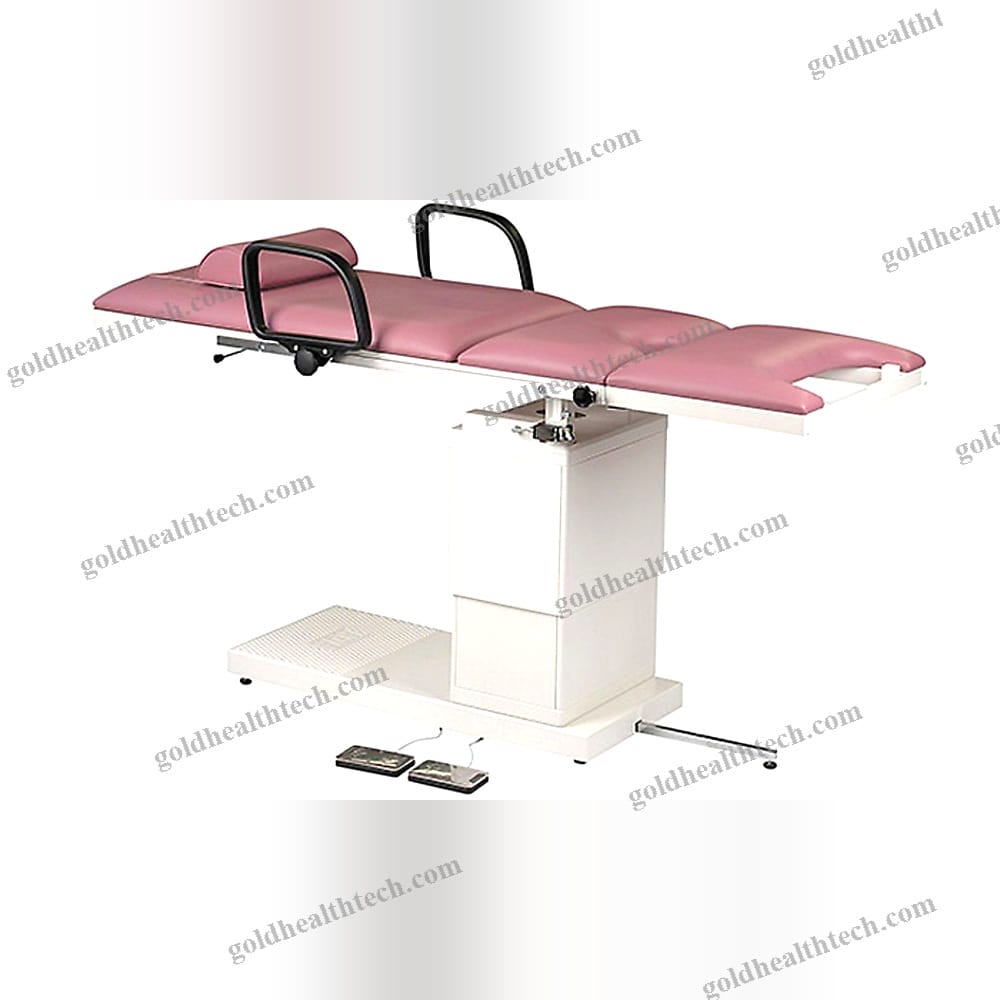

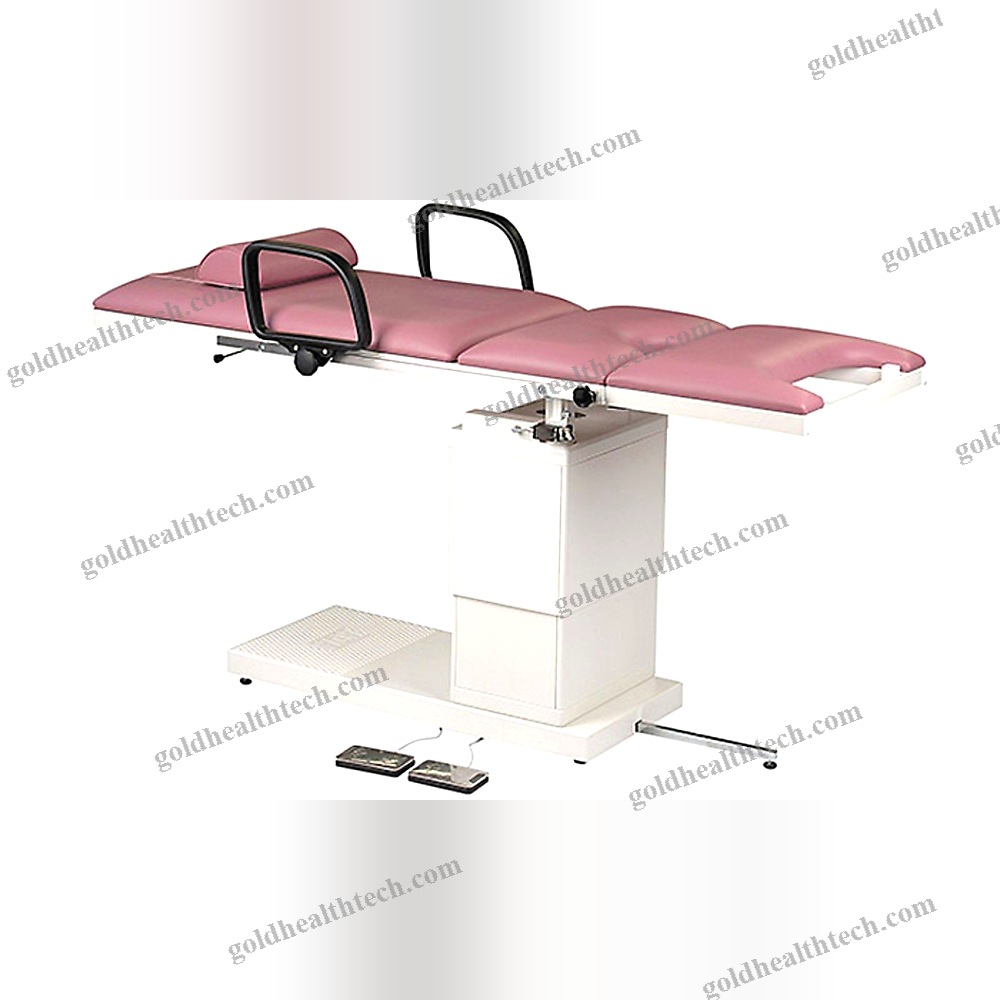

Phlebology and dermatology are not the only applications for the three-piece phlebology tables AGA-PHLEBO-LIFT and AGA-PHLEBO-MAT from AGA Sanitätsartikel. In a matter of seconds, they can be transformed into a chair for gynaecology, rectoscopy, or proctology examinations. The 3-piece vein treatment tables are also equipped with an electric motor for tilt adjustment as a standard feature.Featuresinput:

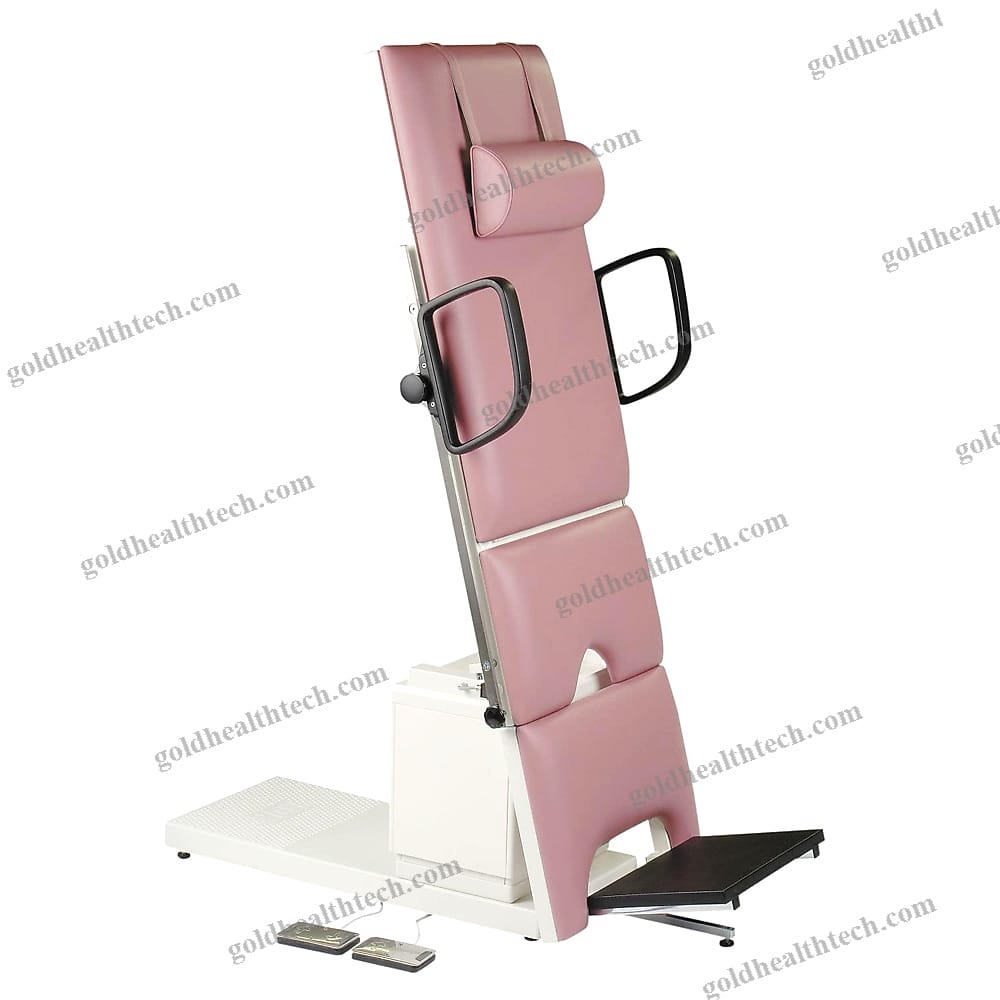

output:The phlebology tables can be adjusted from the almost vertical position (74°) to the horizontal position (0°) to the shock position (20° negative) if necessary, for example, in the event of a patient’s collapse.

The gusset plates in the frame corners are responsible for the stability and robustness.

In conjunction with the pull-out support rod, the base, which is equipped with leveling feet, ensures a high level of stability, even in the almost vertical upholstery position, in the presence of stress.

Like all other components, the shockproof and scratch-resistant covers on the column and base are effortless to clean.

Each of the three upholstery segments (the back, seat, and foot sections) has a thickness of 64 mm.

Maintenance-free, splash-proof, and exceedingly quiet electric drives are employed to adjust the height and tilt. These drives are operated via foot switches or, at no additional cost, a hand switch. Key locks are included in the adjustment systems. Connection values for each motor are as follows: 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.

The seat and foot sections are equipped with cutouts.Maintenance-free, splash-proof, and exceedingly quiet electric drives are employed to adjust the height and tilt. These drives are operated via foot switches or, at no additional cost, a hand switch.
