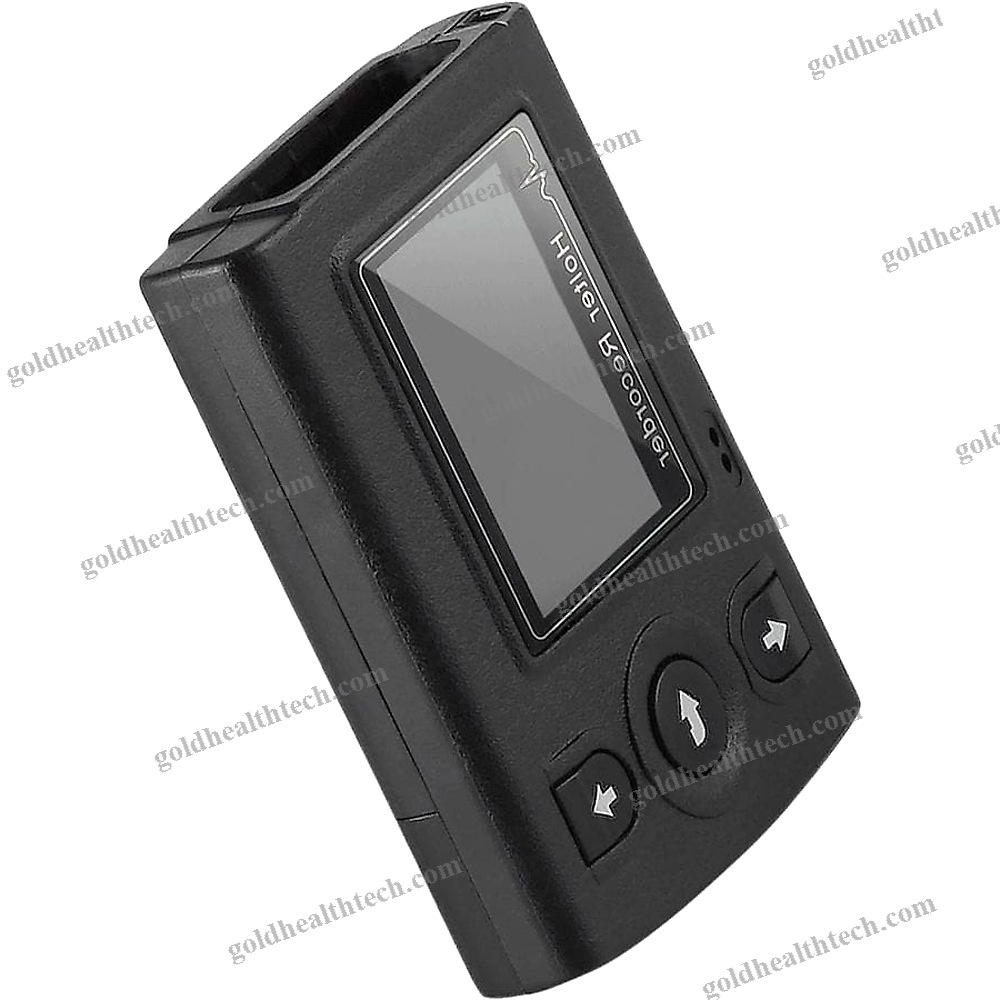

12-Channel Holter Monitor

Lowest power consumption, long-lasting and durableUp to seven days of recording for three channels with a single AAA battery, and up to 48 hours of recording for twelve channels with a single AAA battery.input:

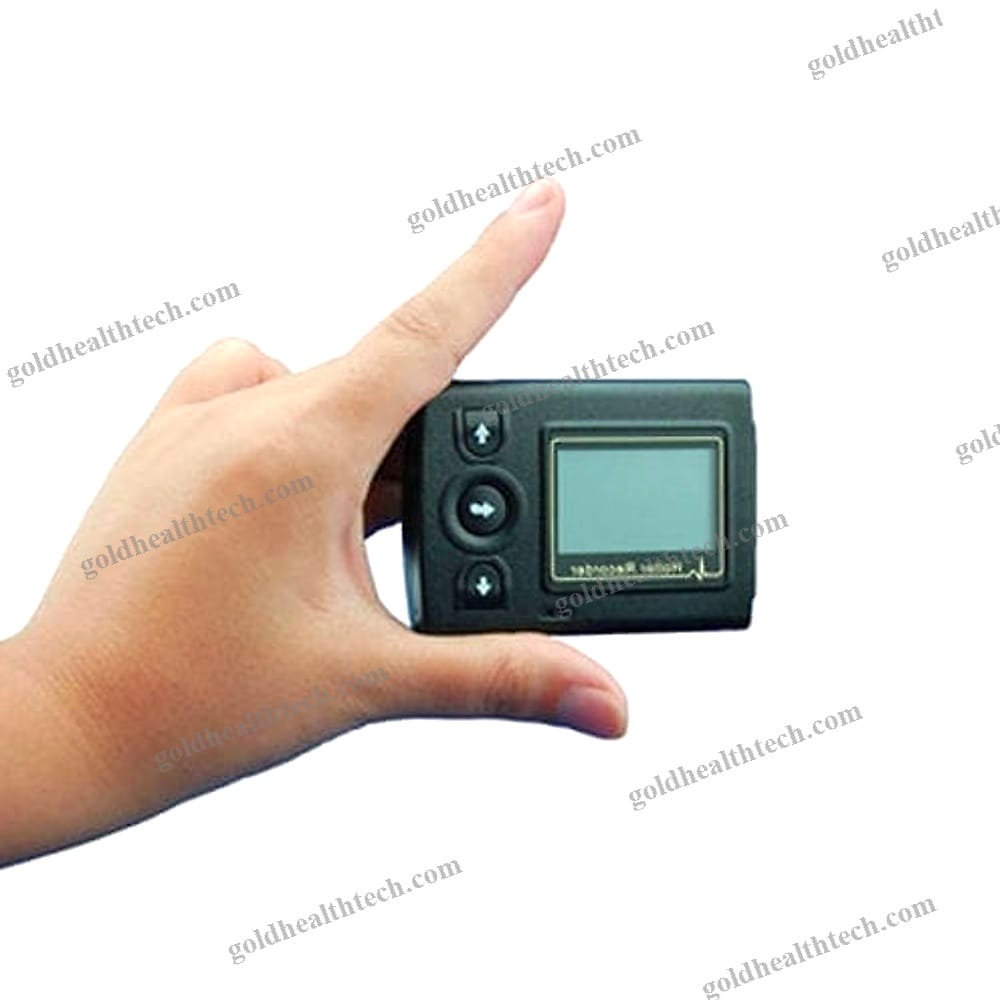

output:The iTengo+ ECG Holter is designed with a slim profile and is lightweight, making it easy to collect data from our body. It features a real-time waveform display, allowing you to monitor each beat without delay. Heart rate monitoring with high accuracy facilitates the management of our health.input:
output:12-channels/3-channels – 2 in 1Independent Pacemaker Channel at 20,000Hz

The pacemaker sampling rate can be increased to 20,000Hz with the pacing pulse detection function.
Lowest power consumption, long-lasting and durableiTengo+ provides the highest level of health care. It is designed to be worn throughout the day without any disruption to daily life. The 3-ch recording capability can last for up to 7 days, while the 12-ch recording capability can last for up to 48 hours with only one AAA battery.Preparation1. Patient Cable, ECG Holter, 10 disposable ECG electrodes, and one new AAA battery;2. Provide the patient with instructions regarding the items that require attention during the recording process.Device for wearing1. Proper preparation of the patient’s skin at the typical Electrode Application position. The use of cotton soaked in alcohol is recommended for the purpose of wiping the skin.input:

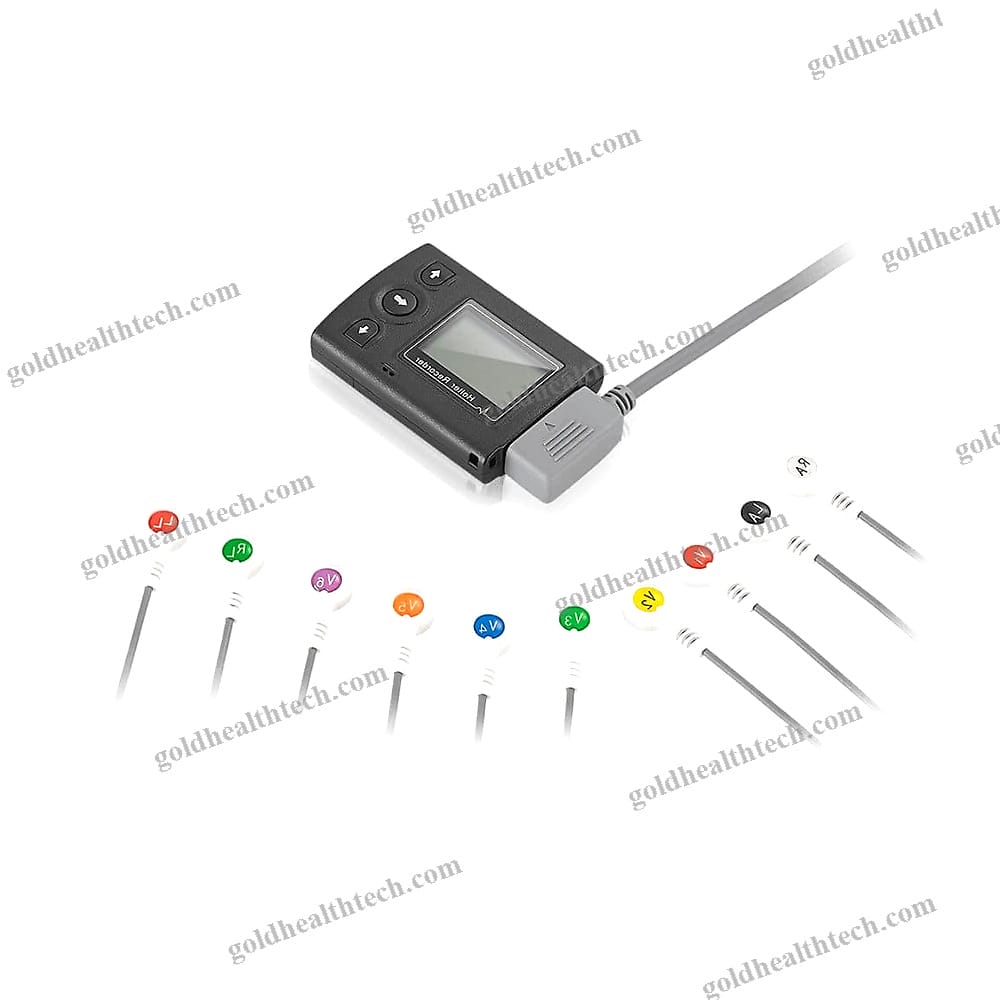

output:2. Attach the patient cable and apply the ECG electrodes.input:

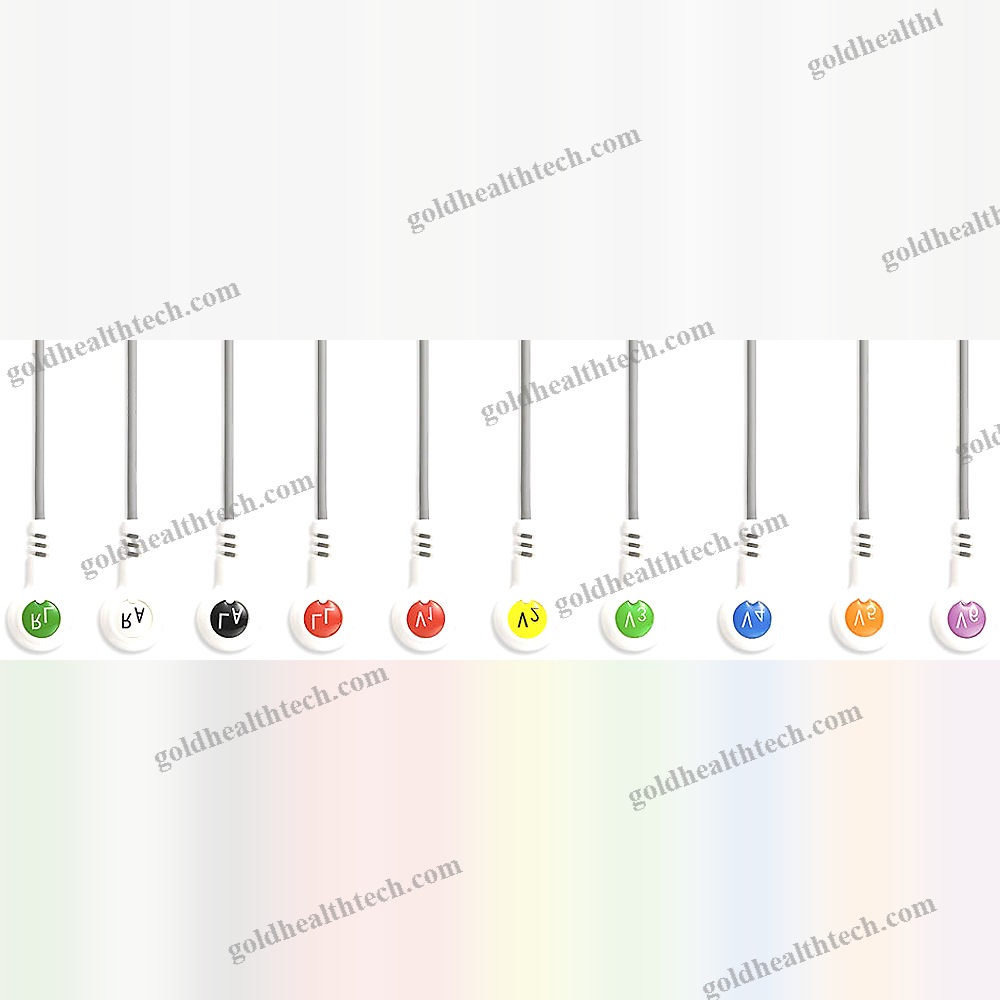

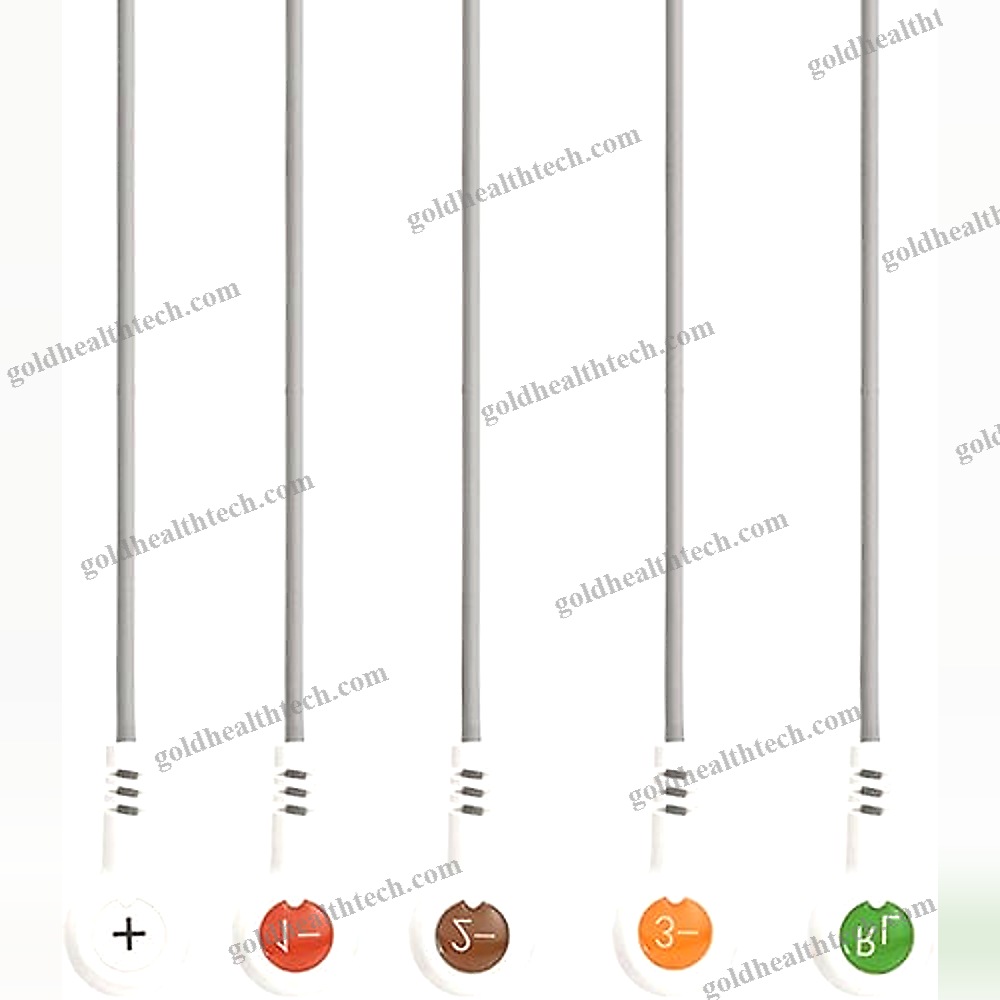

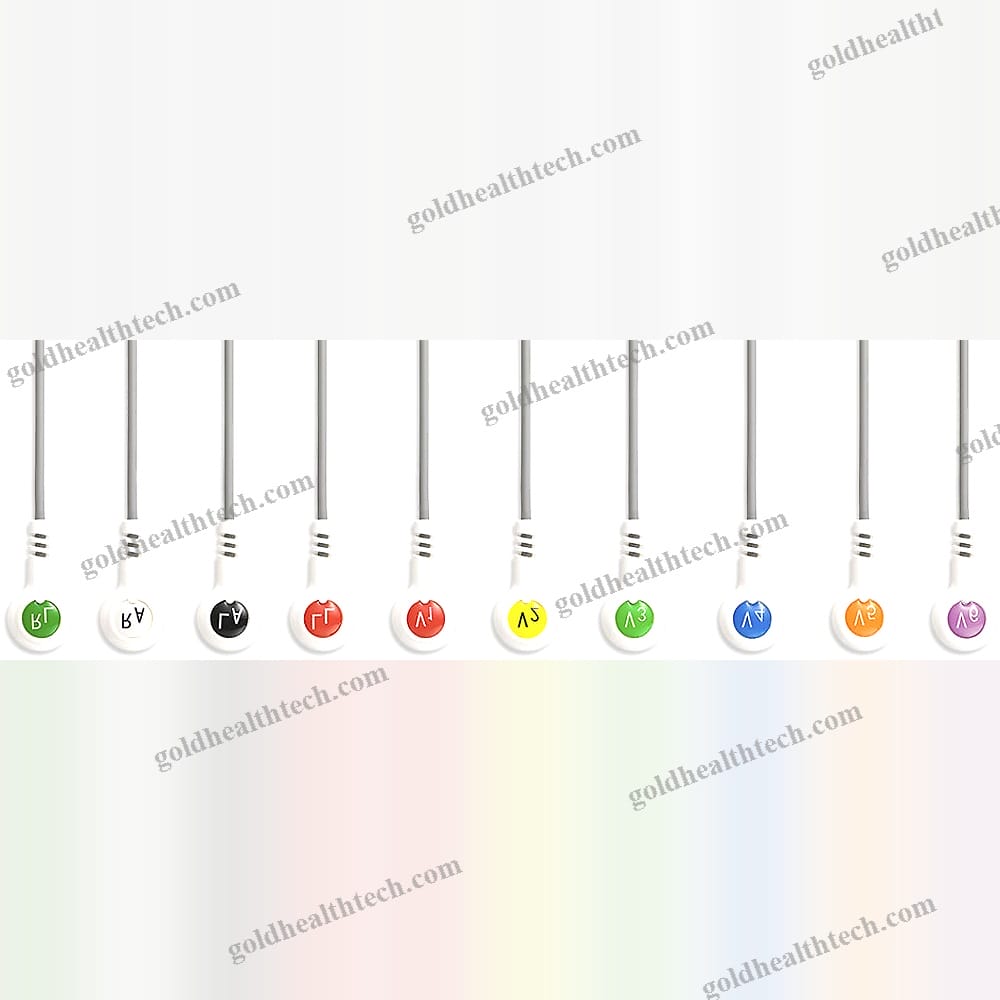

output:Refer to the images below for the placement of 3-Ch (5-7 pins) and 12-Ch (10) electrodes:input:
output:Commence recording.

1. Insert the patient cable, SD card, and battery. The SD card must be unlocked and the battery must be positioned in the correct positive and negative directions.input:
output:Ensure that the patient cable is securely inserted into the recorder.input:
output:2. To initiate the recorder, adhere to the instructions displayed on the screen.input:
output:3. Verify the waveform of all channels.4. Accessing various channels by pressing the up or down key;5. To initiate the recording, press the “Enter” button.
